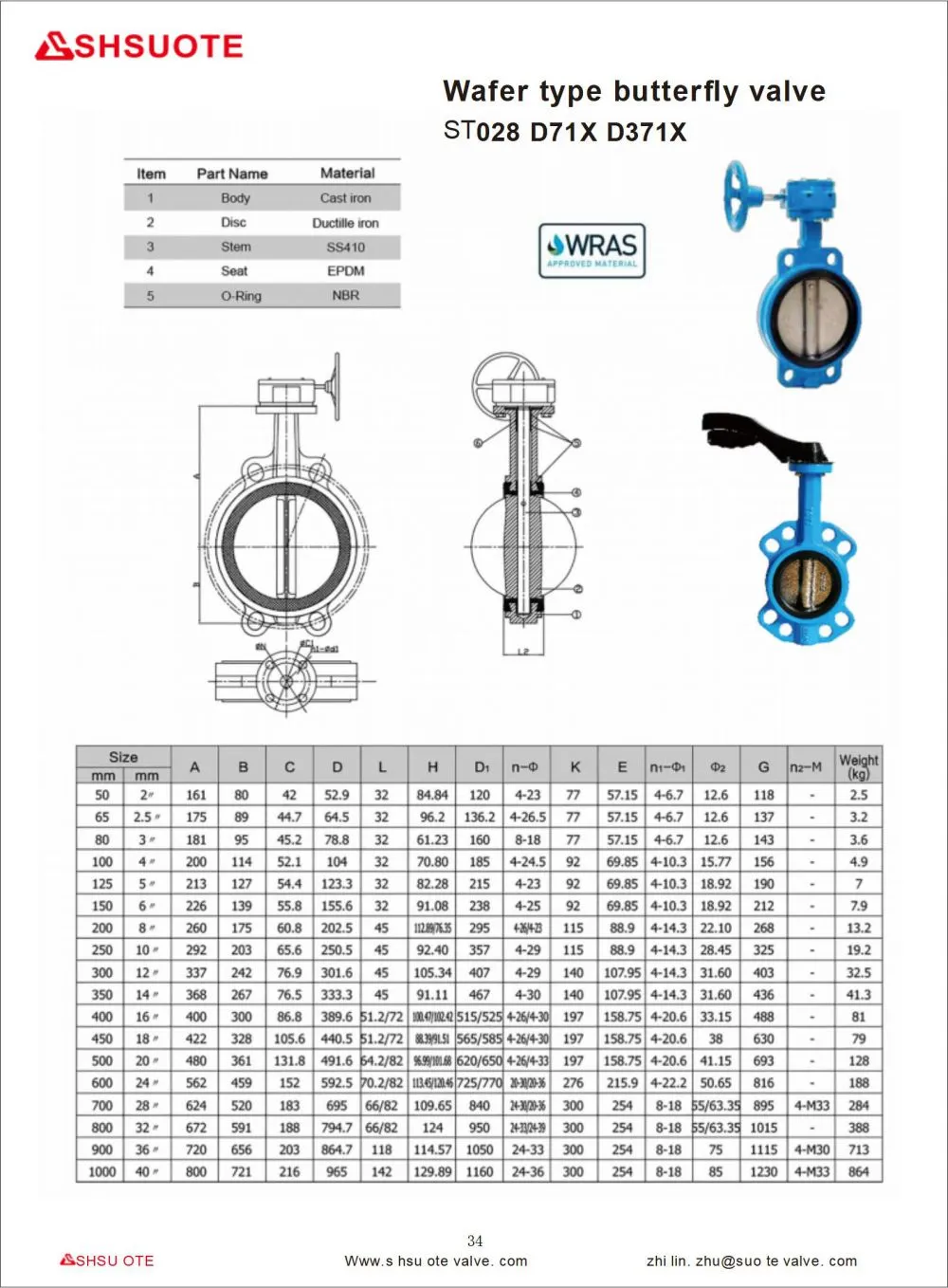

Shanghai Sote Valve Co., Ltd., a trusted valve manufacturer based in Shanghai, China, presents our high-performance Compact Wafer Type Butterfly Valve with EPDM seat. Engineered for reliability in water and neutral media applications, this valve combines space-saving design with exceptional sealing performance to optimize your fluid control systems.
Key advantages include:
Space-efficient wafer design reduces installation footprint
EPDM seat ensures zero-leakage in water systems
Corrosion-resistant components extend service life
Bubble-tight shutoff meets industrial standards
Lever operation enables quick manual control
Technical Specifications:
| Parameter | Specification |
| Valve Size Range | DN40 to DN300 (1.5" to 12") |
| Pressure Rating | PN10/16 |
| Face-to-Face Dimension | EN 558 Series 20 |
| Disc Material | Stainless Steel CF8M |
| Stem Material | Stainless Steel 416 |
| Test Standards | EN 12266-1 |
The valve's ductile iron body provides structural integrity while the stainless steel disc and stem offer excellent corrosion resistance. The EPDM seat material delivers reliable sealing performance across a wide temperature range from -10°C to 120°C, making it suitable for various water treatment, HVAC, and industrial cooling applications.
Operational Benefits:
90-degree rotation allows full open/close operation
Low operating torque reduces manual effort
Bidirectional flow capability for flexible installation
Maintenance-free design minimizes downtime
Backed by Shanghai Sote Valve's manufacturing expertise, this butterfly valve undergoes rigorous quality control to ensure consistent performance. Our Shanghai-based production facilities utilize precision machining to maintain dimensional accuracy and surface finish standards. With over 10 years of industry experience, we provide reliable fluid control solutions to global customers.
Choose our wafer butterfly valve for cost-effective and efficient flow control in your water distribution, cooling systems, or chemical processing applications. Contact our engineering team today for technical support or customization options to meet your specific project requirements.
Frequently Asked Questions:
Q1: Is this valve suitable for potable water applications?
A: Yes, when equipped with EPDM seat, this valve meets requirements for drinking water systems. Material certifications can be provided upon request.
Q2: Can it handle seawater applications?
A: The standard EPDM seat is not recommended for seawater. Alternative seat materials are available for corrosive media.
Q3: What flange standards does this valve support?
A: Compatible with DIN, ANSI, JIS, and BS flange standards. Specify your required standard when ordering.
Q4: Is the lever lockable in position?
A: Yes, the lever handle features multiple locking positions for secure flow control.
Q5: What is the expected service life?
A: With proper installation and maintenance, the valve typically exceeds 10,000 operational cycles.
Q6: Can it be automated?
A: Yes, the valve can be fitted with pneumatic or electric actuators (sold separately).
Q7: What maintenance is required?
A: Designed for minimal maintenance. Periodic visual inspection and lubrication of stem are recommended.
Q8: Do you offer custom face-to-face dimensions?
A: Custom dimensions are available for special applications. Contact our technical team with requirements.
