Honeywell CC-TDlL11 Digital input devices

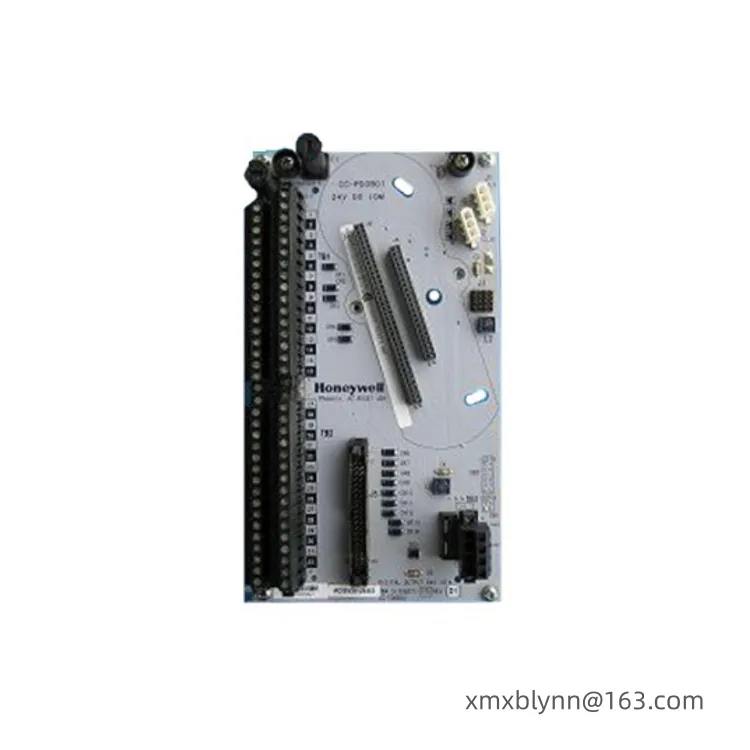

The Honeywell CC-TDIL11 (part number 51308386-185) is a 16-channel 24V DC isolated digital input IOTA module for the Experion PKS C300 system C series. It is compatible with redundant IOTA deployments and features high-speed signal acquisition, disconnection diagnosis, and high availability. It is a core component for safety interlocking and critical equipment status monitoring in industries such as petrochemicals and power.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Parameters and Specifications
Item Parameters
Product Type C Series 16-Channel 24V DC Isolated Digital Input IOTA Module, Compatible with C300 Controller
Compatible System Honeywell Experion PKS Distributed Control System
Input Channels 16-channel 24V DC digital inputs, grouped isolation (2 groups × 8 channels)
Input Characteristics Input Range 10-30V DC, ON voltage ≥18V, OFF voltage ≤10V, typical current per channel 3mA, impedance 4.2kΩ
Isolation Level Channel-backplane 1500V AC isolation, inter-group isolation, opto-isolation for interference suppression
Diagnostic Capabilities Disconnection detection, channel fault self-diagnosis, invalid PV identification
Redundancy and Hot-Swapping Supports IOTA redundant deployment, hot-swappable design, seamless fault switching
Power Supply and Power Consumption 24V DC power supply, current consumption 0.190A, heat dissipation 4.22W, supports internal/external field power selection
Environmental Tolerance Operating temperature 0-60℃, Class I, Div. 2 explosion-proof, surge protection ±4kV, 5%-95% non-condensing humidity. Physical installation: Standard C-series IOTA slot, detachable terminals, compatible with 14-22AWG wire.
Core Functions
16-Channel High-Speed Digital Acquisition: Acquires 24V DC switching signals with a response time of
Group Isolation and Interference Suppression: 2 groups × 8 channels are grouped and isolated to reduce signal crosstalk and common-mode interference, ensuring signal reliability in complex industrial electromagnetic environments.
Wire Disconnection Diagnosis and Data Integrity: Real-time monitoring of channel wire disconnections and wiring faults; disconnected channels are marked as "invalid" by the PV flag, preventing interlock malfunctions and supporting SIL2 safety requirements.
Redundancy and High Availability: Seamless fault switching during redundant deployment; hot-swappable online replacement ensures continuous operation of critical circuits, suitable for Class I and Div. 2 hazardous areas.
Flexible Power Supply and Safety: Supports internal/external field power selection, providing intrinsically safe field power supply with overvoltage/surge protection, and adaptable to dry/wet contact inputs.
Functions, Applications, and Typical Scenarios
Petrochemical Safety Interlocks: Collects data on ESD emergency stop buttons, combustible gas detectors, and safety valve status to trigger emergency shutdowns and diagnose line breaks to prevent interlock failures.
Power Energy Equipment Monitoring: Monitors motor start/stop, circuit breaker positions, and pump unit operating status, providing real-time data to the DCS to support unit start/stop and fault alarms.
Fine Chemical Process Linkage: Collects valve open/close feedback, agitator operation signals, and level switch status, working with analog output modules to achieve closed-loop control and status linkage.
Metallurgy and Water Treatment: Adapts to multi-area signal acquisition, monitoring limit/operation signals of fans, pumps, and valves to improve system anti-interference and availability.
Smart Factory Data Acquisition: Interacts with MES/SCADA systems to provide equipment status and interlock event data, supporting production traceability and preventative maintenance.
