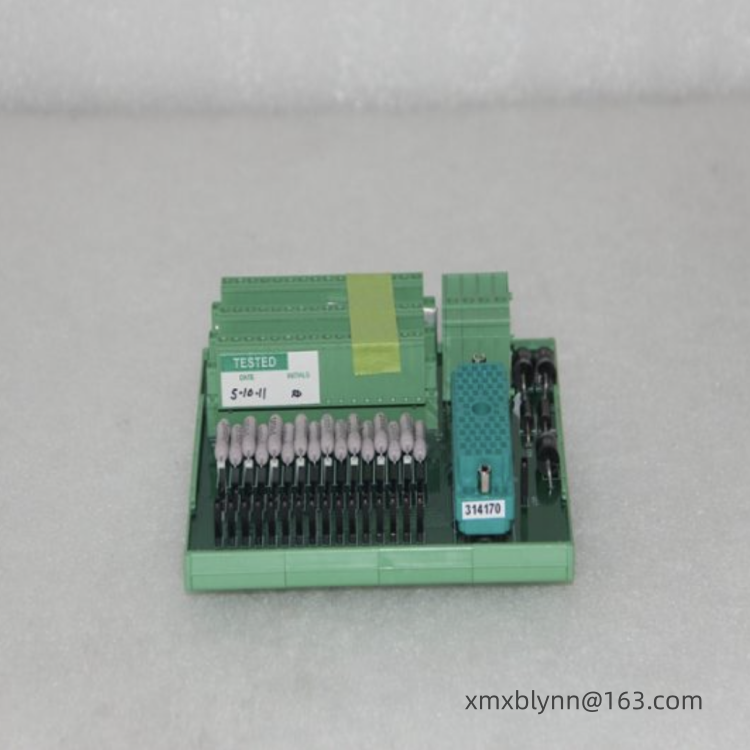

TRICONEX 9771 3000656-210 Terminal block
TRICONEX 9771 3000656-210 (usually written as 9771-210, part number 3000656-210) is a 16-point analog input terminal block for Tricon V9 systems. It is used for safe switching and signal conditioning of current/voltage signals in the field, providing reliable wiring and signal conversion for AI modules in SIS/ESD systems. It is suitable for critical industrial scenarios such as petrochemicals and power generation.
Core Parameters
Parameter Details
Product Model: 9771-210 (Part Number 3000656-210), Analog Input Terminal Block
Signal Compatibility: Compatible with 0-5VDC, 0-10VDC, -5 to +5VDC analog input modules, supports current-to-voltage conversion (0-20mA to 0-5VDC)
Number of Channels: 16 input terminals, including 16 power output terminals (+) and 16 current input terminals (–)
Signal Conditioning: Each input is equipped with a 250Ω precision resistor (current-to-voltage), and a 180Ω current-limiting resistor in series with the positive terminal to suppress overcurrent.
Power Supply Design: Supports redundant 24VDC power input, with diode OR gate circuitry for power redundancy switching.
Compatible Modules: Compatible with Tricon V9 series 16-point/32-point differential analog input modules (32-point modules require 2 terminal blocks)
Installation and Labeling: Included Two sets of labels, 1-16 and 17-32, are compatible with high-density module channel identification and can be installed in a standard rack.
Environmental adaptability: Operating temperature -40°C to +70°C, humidity 5%-95% RH (non-condensing), vibration and shock resistant.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Functions and Features
Signal Safety Conversion: Serving as the physical interface between field devices and AI modules, it isolates the field side from the system side, reducing the risk of surges and short circuits to the module and improving system safety.
Current-Voltage Conversion: Built-in 250Ω precision resistor converts 0-20mA current signals to 0-5VDC voltage signals, adapting to voltage-type AI modules and simplifying field wiring and signal adaptation.
Redundant Power Supply: Supports dual 24VDC redundant power input. Diode ORing ensures seamless switching between channels in case of failure, guaranteeing uninterrupted signal acquisition.
Channel Current Limiting Protection: Each channel's positive terminal is connected with a 180Ω current-limiting resistor to prevent overcurrent damage to the module due to field short circuits, enhancing hardware protection capabilities.
Flexible Configuration Adaptation: Compatible with multi-range voltage/current signals, adapting to 16-point/32-point AI modules. Channel identification can be switched via labels to adapt to different system configuration requirements.
Easy Installation and Maintenance: Modular design, clear wiring terminals, and standardized labeling facilitate on-site wiring, channel verification, and troubleshooting, shortening commissioning and maintenance time.
Typical Application Scenarios: Analog signal acquisition and conversion for pressure, flow, and level in SIS/ESD systems in the petrochemical and natural gas industries.
Analog signal conditioning and secure access for unit condition monitoring (e.g., temperature, vibration) in the power and metallurgical industries.
In other safety-critical scenarios, reliable access to the analog acquisition stage of the Tricon V9 system is required for on-site current/voltage signals.
Email: xmxblynn@163.com
Phone: +86 18059884797
