Honeywell CC-TDI220 isolated, temperature input module

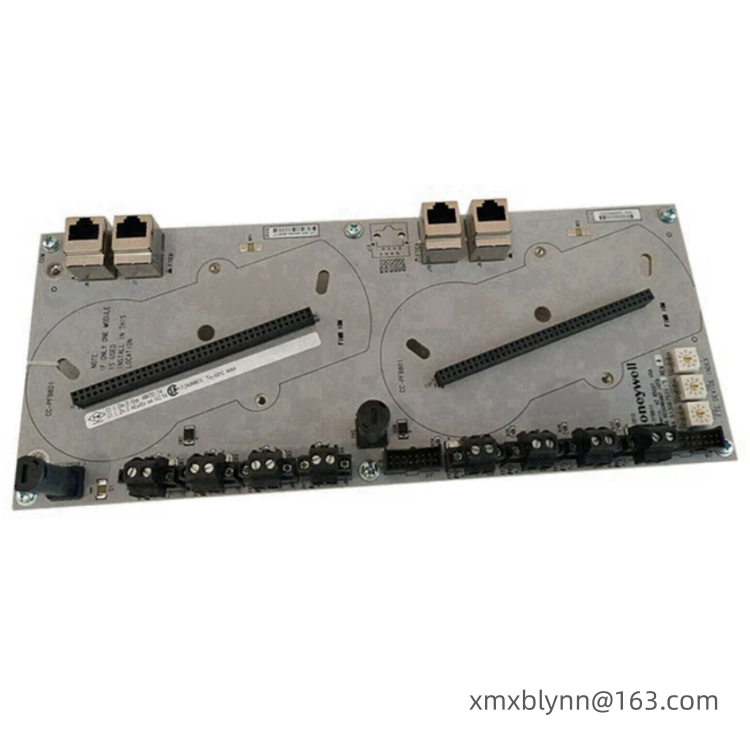

The Honeywell CC-TDI220 (part number 51308394-275) is a 16-channel 240V AC high-voltage digital input IOTA module in the Experion PKS C300 system C series. It adopts a non-redundant configuration and has channel-level opto-isolation and diagnostic capabilities. It is suitable for industrial high-voltage discrete signal acquisition scenarios. Its core function is to monitor 240V AC switching signals such as circuit breakers, disconnect switches, and high-voltage equipment status contacts, so as to realize the status acquisition, safety interlocking and fault alarm of high-voltage systems.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Parameters and Specifications
Item Parameters
Product Model CC-TDI220 (51308394-275), 16-channel 240V AC digital input IOTA module
Compatible System Honeywell Experion PKS C300 Distributed Control System
Input Channels 16-channel 240V AC digital input, independent channel acquisition, non-redundant IOTA configuration
Input Characteristics Pickup voltage ≥180V AC, release voltage ≤20V AC, minimum 7.5mA (180V AC)/10mA (264V AC) per channel, maximum 2.0mA RMS
Electrical Isolation Channel-to-Channel/Channel-to-System 1500V AC isolation, opto-isolation for interference suppression
Diagnostic Functions Channel fault detection, input signal failure diagnosis, supports invalid PV identification
Environmental Tolerance Operating temperature -40-70℃, coating protection suitable for harsh industrial environments, 5%-95% non-condensing humidity
Power Supply and Installation 24V DC power supply, compatible with FTEB/FTEA terminal blocks, supports hot-swapping.
Core Functions
16-Channel High-Voltage Signal Acquisition: Converts 240V AC field switch signals into controller-recognizable digital quantities, suitable for high-voltage equipment status monitoring scenarios.
Channel-Level Isolation and Interference Suppression: 1500V AC opto-isolation suppresses electromagnetic interference in industrial environments, ensuring signal acquisition accuracy.
Fault Diagnosis and Alarm: Real-time monitoring of channel faults and signal failures, with system alarm prompts for quick problem location.
Hot-Swap and Easy Maintenance: Supports online hot-swapping, adaptable to standard terminal bases, reducing downtime for maintenance.
Harsh Environment Adaptability: Coated protective design withstands high and low temperatures and humid/dusty environments, suitable for harsh operating conditions in petrochemical, power, and other industries.
Functions, Applications, and Typical Scenarios
Power Energy High-Voltage Monitoring: Acquires auxiliary contact signals from high-voltage circuit breakers, disconnect switches, and grounding switches, monitoring switch opening and closing status to provide data for power grid control and safety interlocking.
Petrochemical High-Voltage Systems: Monitors the status contacts of high-voltage pipeline emergency shut-off valves and high-voltage pump sets, working with Safety Instrumented Systems (SIS) to achieve high-voltage equipment fault alarms and safe shutdown.
Metallurgy and Heavy Industry: Collects status signals from high-voltage motors, transformers, and high-voltage control cabinets for equipment start-stop interlocking, overload protection, and remote monitoring.
Rail Transit High-Voltage Equipment: Monitors the status of contact network disconnect switches and high-voltage circuit breakers to ensure safe operation and rapid fault response of the power supply system.
Building and Industrial Power Distribution: Collects the status of 240V AC circuit breakers in distribution cabinets to achieve remote monitoring, fault location, and safety alarms for the power distribution system.
