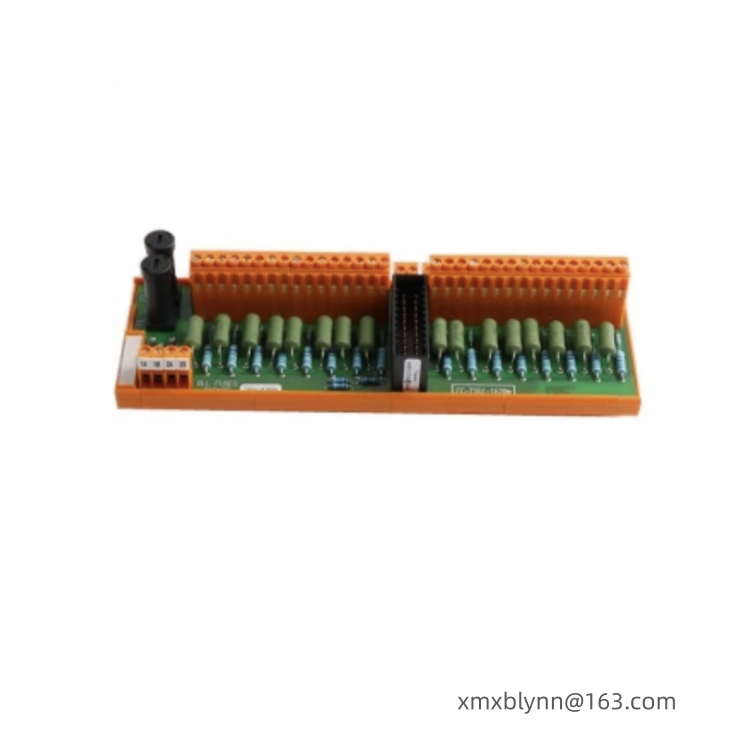

Honeywell FC-TSDI-1624 digital input modulec
The Honeywell FC-TSDI-1624 is a 16-channel, 24V DC digital input field terminal assembly (FTA) compatible with the Experion PKS C300 system. It provides a safe and reliable signal connection and transmission between field 24V DC switch signals and the controller. Its core function is for industrial discrete signal acquisition, safety interlocking, and status monitoring, making it suitable for demanding applications in industries such as petrochemicals and power generation.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Parameters and Specifications
Item Parameter
Product Model FC-TSDI-1624, 16-channel 24V DC Digital Input FTA
Compatible System Honeywell Experion PKS C300 Distributed Control System
Input Channels 16 channels of 24V DC digital input, compatible with dry/wet contact signals
Input Characteristics 24V DC (-15% to +30%), current ≤15mA per channel, pick-up/release voltage compatible with standard 24V DC switching signals
Electrical Isolation Channel-to-system 1500V RMS isolation, resistant to industrial electromagnetic interference
Environmental Tolerance Operating temperature -40 to 70℃, IP20 protection, 5%-95% non-condensing humidity
Power Supply and Installation Low power consumption (<2W), screw terminals, compatible with 14-22AWG wire gauge, supports standard DIN rail mounting
Certifications CE, UL, CSA, ATEX/IECEx hazardous area certification
Core Functions
16-channel signal input and transmission: Receives and transmits 24V DC switch signals from the field (such as equipment start/stop, limit switches, and alarm contacts) to the controller, enabling centralized acquisition of discrete signals.
High isolation and interference immunity: 1500V RMS electrical isolation suppresses electromagnetic interference in industrial environments, ensuring accurate signal transmission.
Safety signal adaptation: Adapts to safety system signal acquisition, meeting the requirements of industrial safety interlocks and alarm monitoring.
Convenient wiring and maintenance: High-density terminal layout simplifies field wiring, and standard installation methods improve maintenance efficiency.
Harsh environment adaptation: Wide temperature range and protective design withstand high and low temperatures, humidity, and dust, adapting to demanding industrial environments.
Functional Uses and Typical Scenarios
Petrochemical safety monitoring: Collects signals from emergency stop buttons, flammable gas detectors, and safety valve status, supporting safety instrumented system (SIS) interlocks and alarms.
Power and energy equipment status acquisition: Monitors motor start/stop contacts, circuit breaker auxiliary switches, and isolator switch status, providing data for power grid control and fault diagnosis.
Manufacturing automation production lines: Collects signals from conveyor belt limits, cylinder positions, and equipment operating status, enabling production line sequence control and status feedback.
Metallurgy and heavy industry: Connects high-voltage equipment auxiliary contacts and valve limit switches, monitoring equipment operating status to ensure production safety.
Signal access in hazardous areas: ATEX/IECEx certified, suitable for 24V DC signal acquisition in hazardous areas such as chemical and oil and gas industries.
