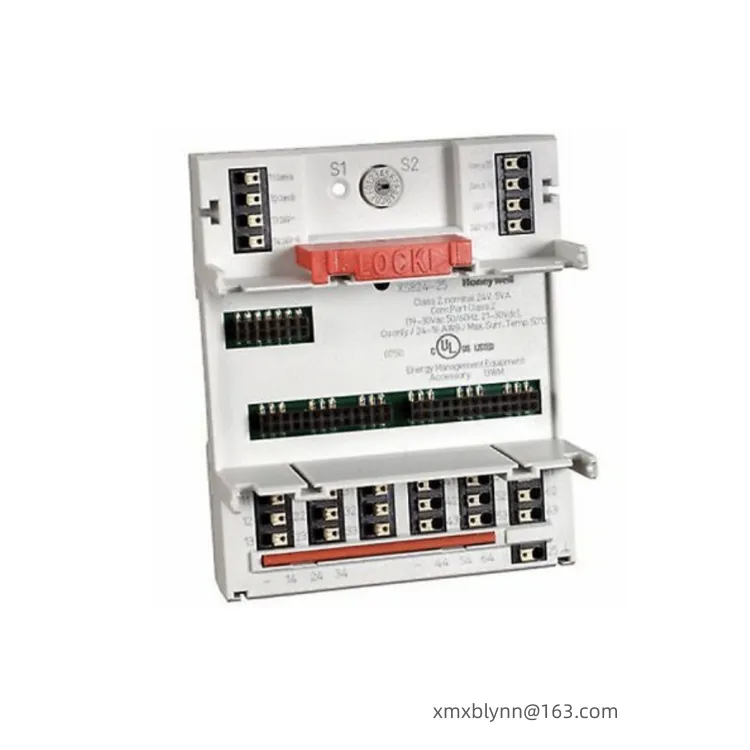

Honeywell XS824-25 Terminal Socket For Relay Outputs
The Honeywell XS824-25 is a dedicated terminal block for relay/floating point output modules in the Excel 800 system. It is compatible with relay output modules such as XF824A/XFL824A, providing wiring, signal conversion, and installation support. It is used in building automation, HVAC, industrial automation, and other scenarios to ensure stable connection and convenient maintenance between output modules and field actuators.
Email: xmxblynn@163.com
Phone: +86 18059884797
Core Parameters and Configuration
Item Parameters
Adaptor Modules: XF824A (Panel Bus 6-channel Relay Output), XFL824A (LonWorks Bus 6-channel Relay Output), and other floating-point/relay output modules
Wiring Specifications: Screw terminals, compatible with 14-22AWG wire, supports 24VDC/250VAC, 5A rated electrical parameters
Components Included: Terminal base, connecting bridge, cross connector, rotating label, supports DIN rail mounting
Electrical Characteristics: Channel-to-channel electrical isolation, overvoltage/short-circuit protection, compatible with Excel 800 system Panel/LonWorks bus communication
Environmental Adaptability: Operating temperature -40°C to +70°C, suitable for normal/harsh industrial and building environments.
Key Advantages:
Dedicated adapter for Excel 800 system relay output modules, improving wiring reliability and system compatibility.
Integrated terminal blocks, protection, and labeling components simplify installation, commissioning, and maintenance, reducing engineering costs.
Supports hot-swappable and DIN rail mounting, enabling rapid deployment and online maintenance in building and industrial environments.
Wide temperature range and electrical protection ensure long-term stable operation under complex conditions.
