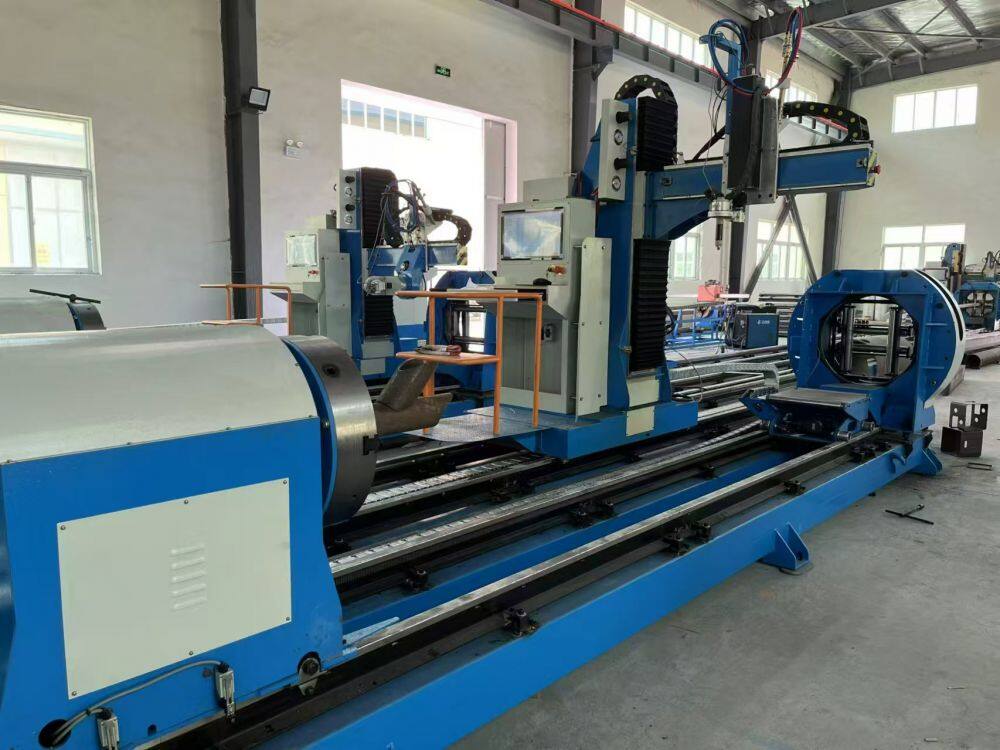

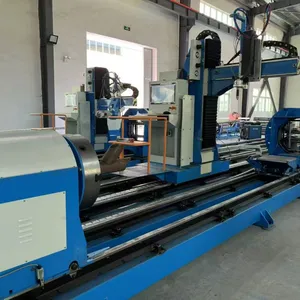

8 Axis Automatic Tube Profile CNC Plasma Cutting Machine for Sale
CNC Tube Plasma Machine Feature:
1).The large square tube machine structure with an integral welded bed body, which has undergone deformation treatment and precision machining to ensure the smoothness and big loading capacity.
2).The CNC tube cutting machine adopts an industrial personal computer(IPC) system controlled by ETHERCAT bus. The system comes with cutting modules for different profiles, which can be directly accessed and used. By inputting cutting requirements and material parameters, cutting operations can be directly carried out without programming. Capable of supporting tekla modeling (additional single paired nested parts need to be specified during procurement).
3).Industrial grade explosion-proof five-wire resistance touch screen, fully shielded, anti electromagnetic radiation, anti-interference, and synchronized 3D display and cutting.
4).The front and rear chucks adopt a pair of dedicated square chucks with self centering function. During cutting, the four claws work synchroniouly, and the cutting gun can skip the square chuck to the end of the rear chuck for cutting to achieve zero-tailing cutting function.
5).The swinging gun shaft adopts a TCP mechanical structure, the A-axis and B-axis ensure a smooth and stable cutting without shaking, ensuring high cutting accuracy;
6).The cutting gun is equipped with a strong magnetic suction anti-collision function. When cutting, it will alarm and detach from the magnetic suction arm in case of collision to avoide damage to the mechanical structure and cutting gun;
7).Unique synchronous support system can provide precise support to avoid sagging deformation caused by excessive material length
8).Top quality parts & components to ensure long service life and excellent performance, such as Hypertherm plasma cutter, Yasakawa servo, Hiwin guide rail, etc;
Techinical Parameters:
| Item | Specification |
| Name | 8 axis tube profile CNC Plasma Cutting Machine for sale |
| Diameter range | Round: Φ60-630mm(with bevel cutting); Square: 60-400mm(with bevel cutting); H beam: 100-400mm(no bevel cutting); Channel steel: 100-400mm(no bevel cutting); Angle steel: 100-400mm(no bevel cutting); |
| Pipe length | 6m/12m(customizable) |
| Cutting mode | Plasma cutting, oxyfuel cutting |
| Cutting thickness | In terms of plasma source |
| Cutting speed | 10-6,000 mm/min |
| Moving speed | 0-8,000 mm/min |
| Working precision | 0.1mm |
| Reposition precision | 0.03mm |
| Max loading weight | 5,000Kg |
| Quantity of axis | 8 axis |
| Bevel cutting angle | ±45° |
| Ambient temperature | -10 º C – 45 º C |
| Ambient humidity | Less than 80%, no condensation. |
| Power supply | 380V± 10%, 50Hz, 220V± 10%, 50Hz |
Plasma Profile Cutting Machine Application:
Applicable Material:
This CNC tube plasma cutting machine can be used for a variety of profiles, including round, square, rectangular, angle steel, channel steel, H-beam, etc.
Applicable Industry:
The cnc tube cutting machine can be widely used for metal fabrication in different industries, including shipbuilding, construction, transportation equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler container, agriculture machinery, elevator, environmental protection equipment, etc.
