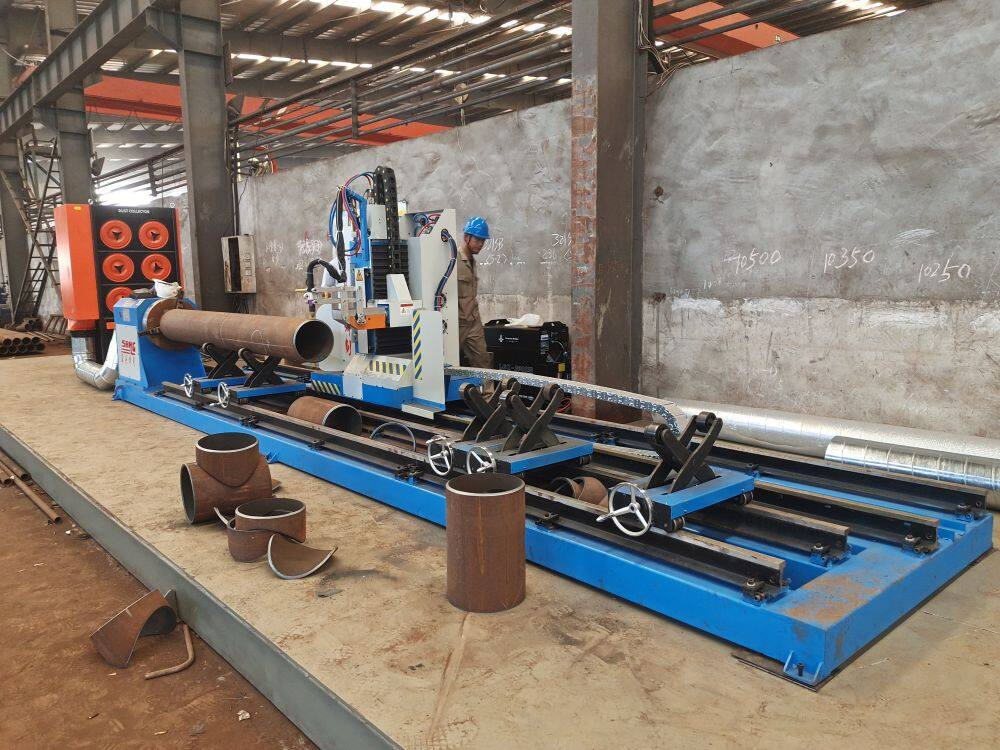

5 Axis Steel Pipe CNC Plasma Cutting Beveling Machine For Sale
Plasma Pipe Cutting Machine Features:
1).Strong machine structure which goes through secondary aging treatment to fully eliminate internal stress, cutting accuracy of the whole machine can be well guaranteed;
2).High precision gear rack equipped with precise planet gearbox for the CNC plasma pipe cutting machine which has the characteristics of high-output torque, low noise and long life;
3).Professional CNC software, easy to learn and operate, greatly improving the working efficiency;
4).This cnc plasma cutter is suitable for various types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots; round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, and other types of intersecting cuts;
5).3D node expansion function of auxiliary programming system PIPE2002, it can generate CNC codes from Auto CAD drawings to save operators’ and engineers’ time. And these modules are compatible with IGES, DXF, SAT and STL files;
6). Top-rated CNC plasma pipe cutting machine manufacturers with high quality main parts from reliable suppliers from all over the world to guarantee the excellent performance, such as Hypertherm plasma cutter, YASKAWA servo, Shimpo reducer, HIWIN guide rail, etc.
Techinical Parameters:
| Name | 5 Aixs Steel Pipe CNC Plasma Cutting Beveling Machine For Sale |
| Model | JSP-6030S-5A |
| Diameter range | Φ50-630mm(can be customized) |
| Pipe length | 6m/12m(can be customized) |
| Cutting mode | Plasma cutting + oxy fuel cutting |
| Cutting thickness | Oxy fuel cutting: 5-50mm; plasma cutting: Upon plasma source |
| Bevel cutting angle | Oxy fuel cutting: ±60°; plasma cutting: ±45° |
| Moving speed | Max.6,000mm/min. |
| Positioning accuracy | ±0.2mm |
| Input voltage | 380v±10%/50Hz, 220v±10%/50Hz |
| Working environment | -10°C-60°C, relative Humidity, 0-95%. |
Plasma Pipe Beveling Machine Application:
Applicable Material:
This cnc plasma pipe cutting machine is mainly used for round pipes of different metal materials, including carbon steel, stainless steel, alloy steel, metal, copper, aluminum, titanium, galvanized steel, etc.
Applicable Industry:
The plasma cutting machine can be widely used for different kinds of industries, including advertising, shipbuilding, construction equipment, transportation equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler container, agri8culture machinery, elevator, environmental protection equipment, etc.
