Product characteristics:

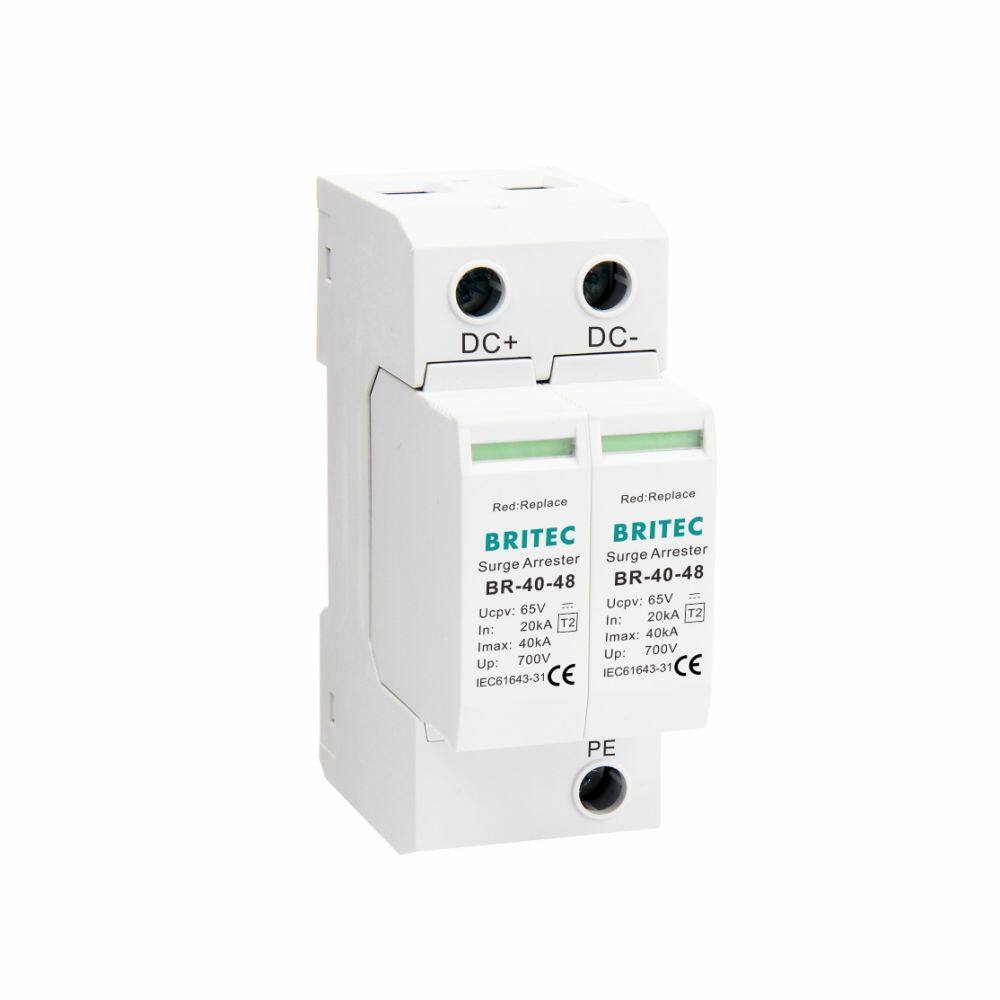

| Specification | BR-40 48 | |
| SPD classification according to EN61643-31 / IEC61643-31 | Type 2 / Class II | |
| Nominal voltage | Un | 48V |
| Max. continuous operating d.c. voltage | Ucpv | 65V |
| Nominal discharge current (8/20μs) | In | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA |
| Voltage protection level | Up | ≤700V |
| Response time | tA | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Operating state / fault indication | green / red | |
| Cross-section area (Min.) | 4mm² | |
| Cross-section area (Max.) | 35mm² | |
| For mounting on | 35mm Din rail | |
| Enclosure material | Thermoplastic UL94-V0 | |
| Degree of protection | IP20 | |
| Order code | B18055 | |
| Order code (with remote signal) | B18056 |
Features:
Module design, convenient installation, with easy electric maintains operation
With working indication window.
Built-in over current and over heat, temperature control open circuit technology
The main module and the base are replaceable.
Small creepage current, fast response time, remnant low voltage
Mounting on symmetrical rail 35mm (EN60715).
With remote connection, can realize remote control
Application:
It is mainly applicable for the Direct Current surge protection and over voltage protection in the fields of low voltage DC power supply.
Applied to electrical systems to provide a discharge path to earth to save those systems’ components from being exposed to the high-voltage transients caused by the direct or indirect effects of lightning or power system anomalies.
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
Since 2003, BRITEC has been dedicated to designing and manufacturing surge protective devices protecting installations from transient overvoltages that result from switching events and lightning strikes.
We provid quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
We have TUV/CB/CE/ROHS/ISO9001/ISO14001/ISO45001
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
DC (pv, solar) surge protection device.
Network surge protection device
LED Lighting Surge Protection
