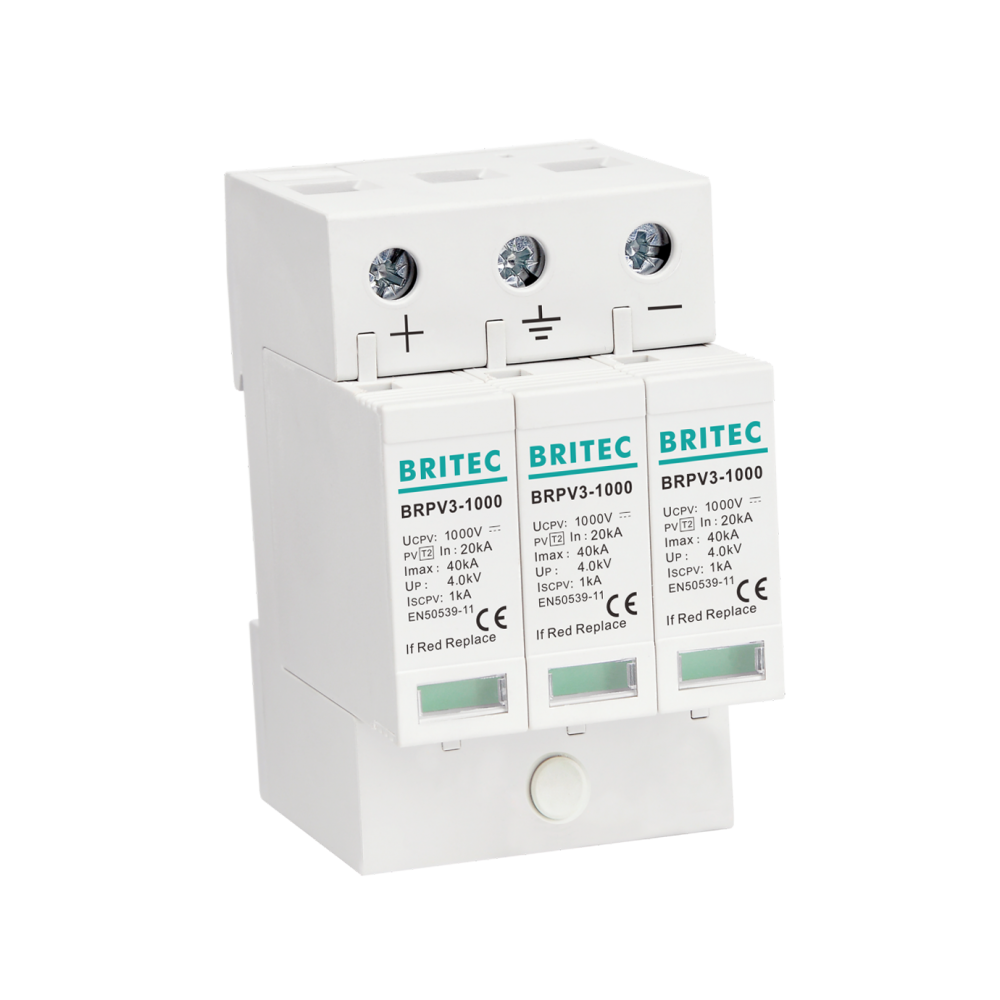

BRPV3-1000 Solar Surge Protective Device Lightening Protector dc Surge Protective Device Spd
- NINGBO
- T/T L/C Credit Card PayPal
- 10 days
You May Like
-
BRPV3-600 Type 2 Surge Protection Device for PV 600V Solar Surge Protective Device Lightening Protector dc Surge Protective Device Spd
-
BRPV2-600 Type 2 Surge Protection Device for PV 600V Solar Surge Protective Device Lightening Protector dc Spd
-
BRPV3 T1 12.5kA T1+2 PV Surge Protection Device Lightning Protector dc Surge Protective Device Spd
-
BR-50GR 3P Type 1 Power Surge Arrester 50KA Surge Protection Device Spd
-
BR-50GR 2P Type 1 Power Surge Arrester 50KA Surge Protection Device Spd Lightening Protector
-
BR-50GR 1P Type 1 Surge Arrester 50KA Surge Protection Device Spd Lightening Protector Surge Arrester
Product Details
| Brand Name | BRITEC | Place of Origin | China | |
| Model Number | BRPV3-1000 |
Product Description
solar surge protective device lightening protector dc surge protective device spd
Product characteristics:

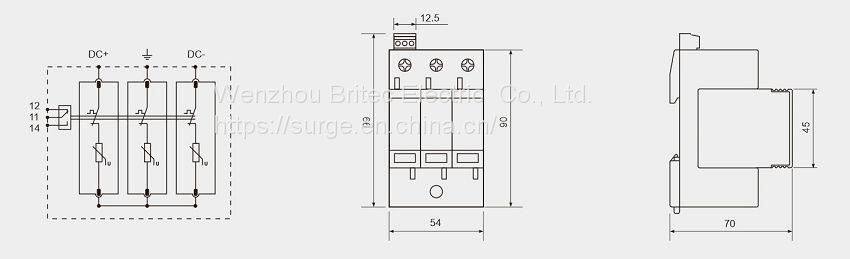

Specification | BRPV3-1000 | |
SPD classification according to EN61643-11 | Type 2 | |
SPD classification according to EN61643-31 | Class II | |
Max. continuous operating d.c. voltage | Ucpv | 1000V |
Norminal discharge current (8/20μs) | In | 20kA |
Max. discharge current (8/20μs) | Imax | 40kA |
Voltage protection level [(DC+/DC-)→PE] | Up | ≤4.0kV |
Response time | tA | ≤25ns |
Operating temperature range | Tu | -40℃-80℃ |
Operating state / fault indication | green / red | |
Cross-section area (Min.) | 4mm² | |
Cross-section area (Max.) | 35mm² | |
For mounting on | 35mm Din rail | |
Enclosure material | Thermoplastic UL94-V0 | |
Degree of protection | IP20 | |
Order code | B8010 | |
Order code (with remote signal) | B8012 | |
Contact person: Lucky zhu
Address: Block1, BoTongHuiGu Industrial Park,Yueqing, Zhejiang, China
Mobile: +86-15888436909
E-mail: sales2@britecelectric.com
Skype:bjbox1115
Features:
Application:
Designed especially for surge protection of the PV strings, apply to the Photovoltaic power grid-connection system.
Used for PV systems with or without separate lightning protection system.
Used to protect the sensitive line of the solar power generation protection device.
It widely used in PV DC combiner box, inverter, controller and PV DC cabinet.
Advantage:
Optimum inverter protection, low protection level.
Fault indication via red mark in the inspection window.
High Energy Varistor, Response Time Less Than 25 Nanosecond.
High effective for lightning protection.
Optional Remote Signalling.
Leakage current free option.
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.
