Product characteristics:

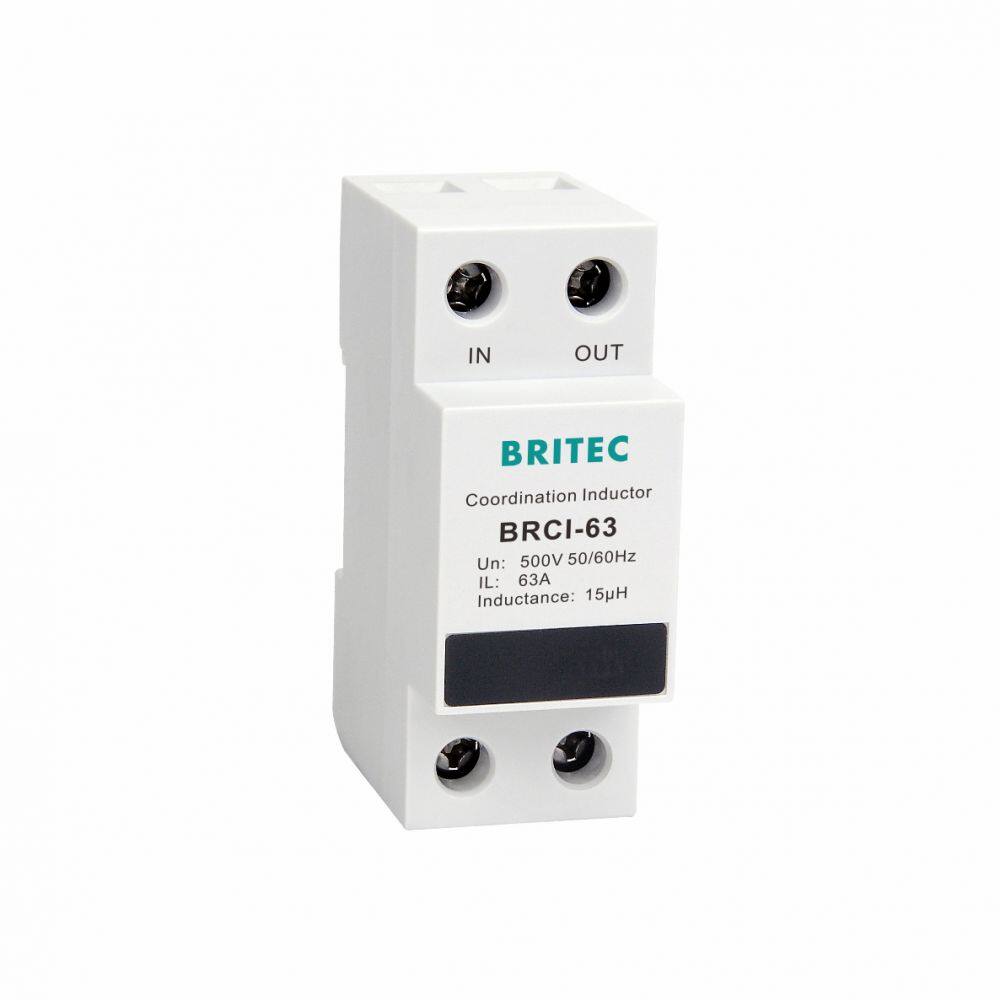

| Specification | BRCI-35 | BRCI-63 | |
| Description | Coordination inductor | Coordination inductor | |
| Max. continuous operating voltage | Uc | 500V ac | 500V ac |
| Max. line current | IL | 35A | 63A |
| Line inductance | 15μH | 15μH | |
| Wiring | 1 piece in series on each active line | 1 piece in series on each active line | |

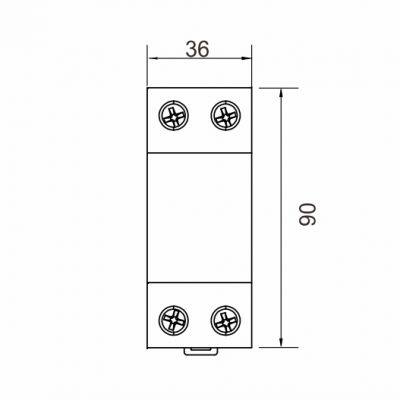

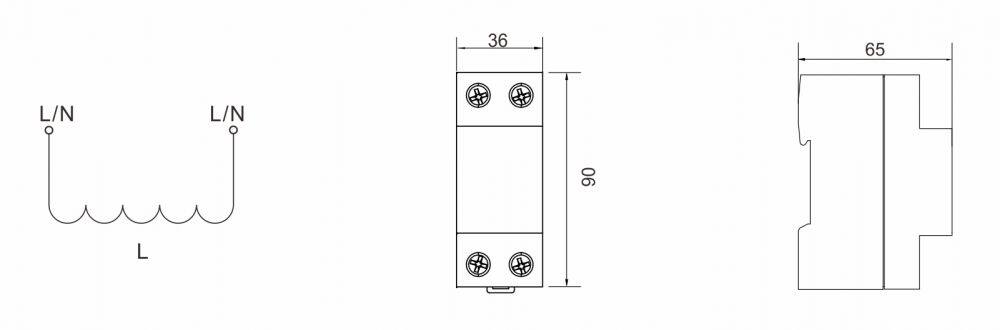

| Dimmension WxLxH | 36*90*65mm | 36*90*65mm | |
| Connection | 6~35mm2 | 6~35mm2 | |
| Mounting on | 35mm Din Rail | 35mm Din Rail | |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ |
| Enclosure material | Thermoplastic UL-94V0 | Thermoplastic UL-94V0 | |
| Degree of protection | IP20 | IP20 | |
| Order Code | B6320 | B6321 |
Features:
Coordination inductors for surge protectors
These coordination inductors are specially designed to control the implementation of the primary and secondary levels of SPD surge protectors.
They are necessary where the coordination cannot be accomplished using the ‘natural’ inductance of the active conductors (in particular in a small volume, where the length of line wire between primary SPD and secondary SPD is lower than 10m).
DIN rail compatible
Since 2003, BRITEC has been dedicated to designing and manufacturing surge protective devices protecting installations from transient overvoltages that result from switching events and lightning strikes.
We provid quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
We have TUV/CB/CE/ROHS/ISO9001/ISO14001/ISO45001
