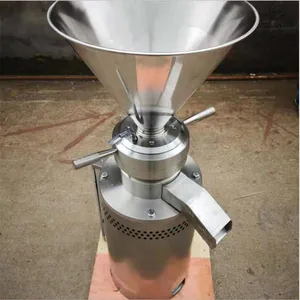

Help CenterStainless Steel Food-grade Colloid Mill Grinding Machine, a General-purpose Grinding, Homogenizing, Pulping and Filling Equipment for Food, Pharmaceutical and Bioengineering Industries
Related Products
-
Stainless Steel Quick Connector Type b, Cast for Engineering Vehicles and Tank Trucks, Quick Installation and Connection Ferrule Threaded Connector for PipelinesUS$ 4.92 - 5.85MOQ: 1 Piece -
Adjustable Height Pipe Support, for Process Pipeline Installation, Pipe Hanging and Fixing, Steel Pipe Hoop, Pipe Clamp, Customizable Clips for Outer Diameters From 12 to 219US$ 1.08 - 1.54MOQ: 100 Pieces
-
1/2 Inch Sanitary Ball Valve Suitable for 12.7 Steel Pipe Clamp Chuck, 25.4 Manual Ball Valve, 304 Stainless Steel Straight-through Quick-install ValveUS$ 5.85 - 6.92MOQ: 10 Pieces
-
Sanitary Safety Valve, Made of Stainless Steel 304, With Quick-connect Design and Pressure Adjustment Function, Relief Valve With Pressure Range From 0.1mpa to 0.6mpaUS$ 184.62 - 230.77MOQ: 1 Piece
-
Stainless Steel Precision Casting Industrial Grade Wafer Type Four-eared Butterfly Valve D71x Straight Rod Handle Adjustable Control ValveUS$ 23.08 - 30.77MOQ: 1 Piece

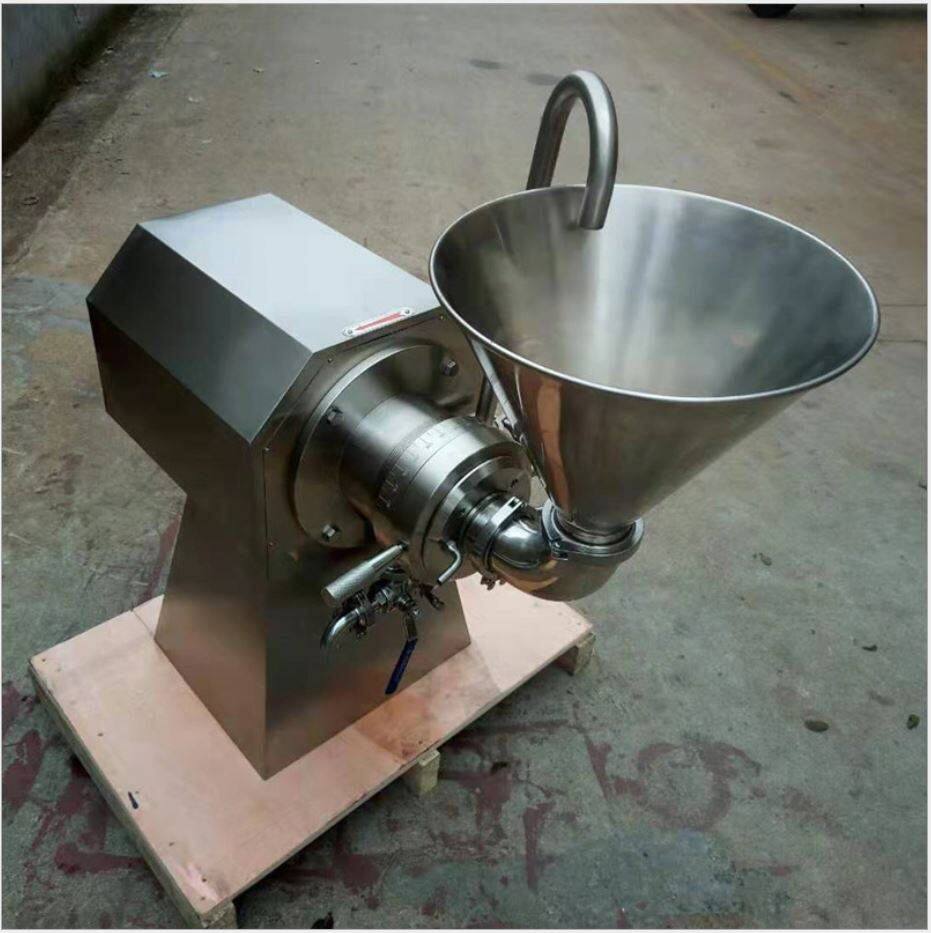

Three-dimensional colloid mill manufactured by Suote
The colloid mill is composed of stainless steel and semi-stainless steel colloid mills. The basic principle is through the high-speed relative movement between the fixed teeth and the moving teeth. Except for the motor and some parts, all parts of the colloid mill product that come into contact with the material are made of high-strength stainless steel. In particular, the key moving and static grinding discs are strengthened. Therefore, it has good corrosion resistance and wear resistance, making the processed materials pollution-free and hygienic.

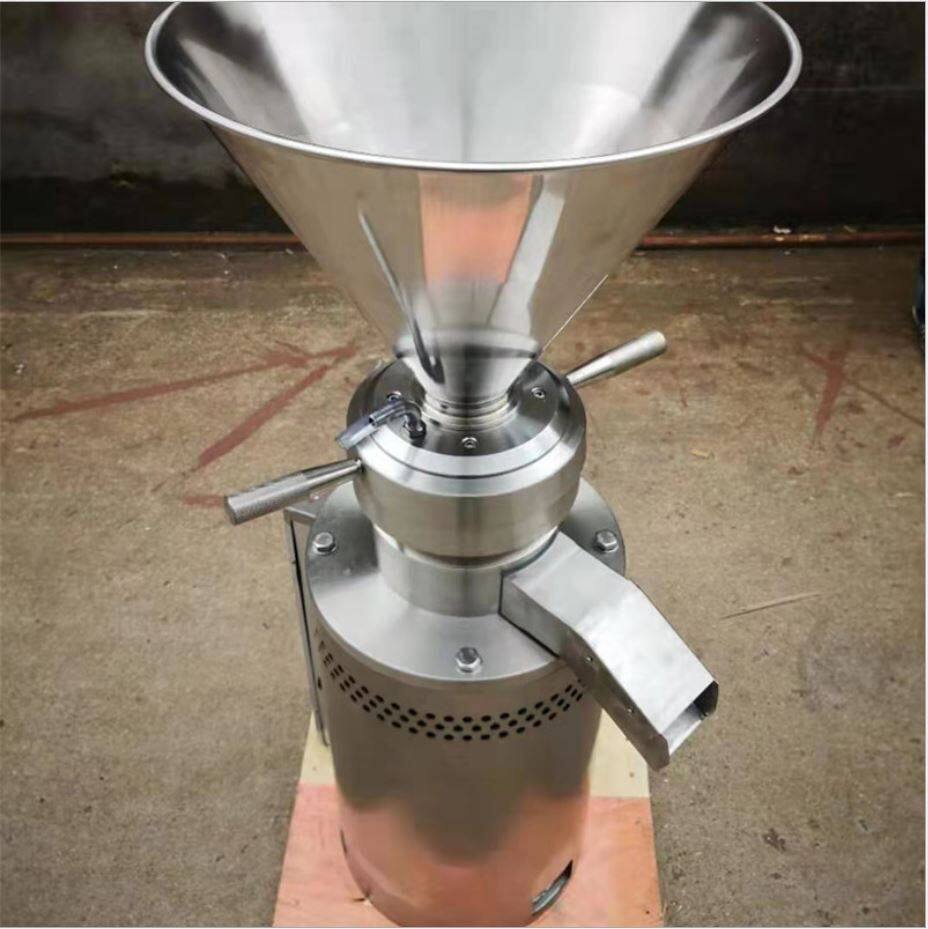

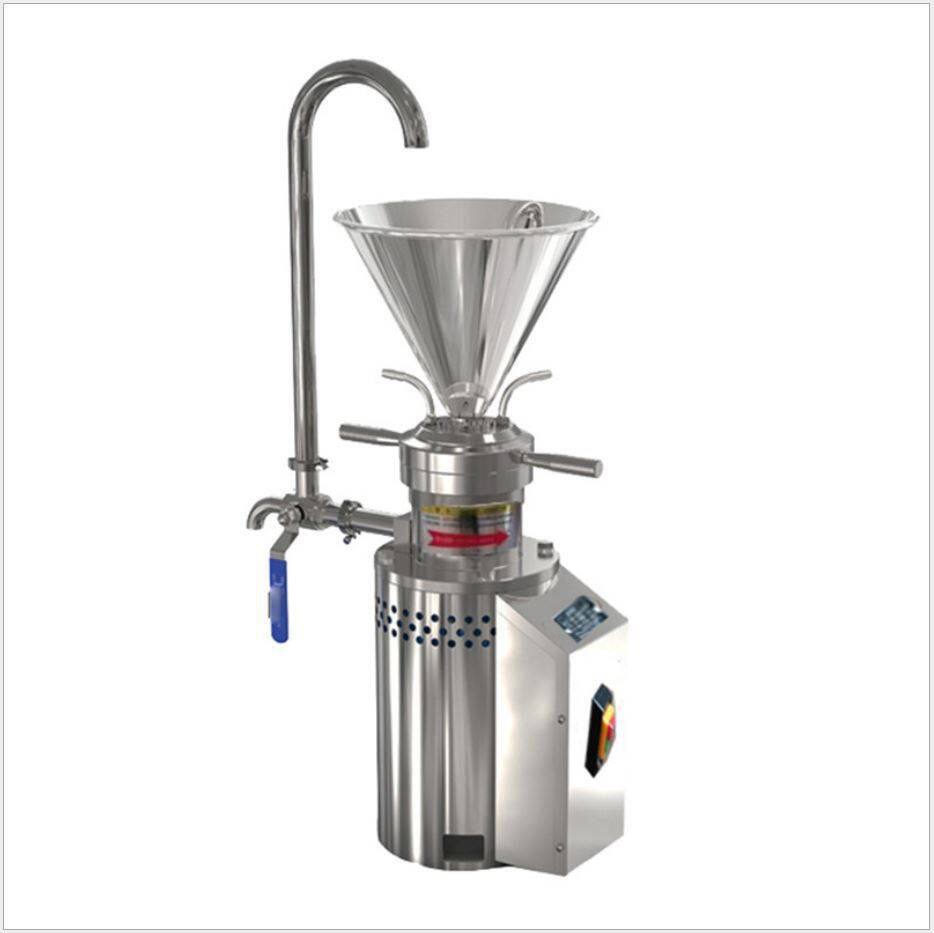

Vertical colloid mill
The vertical colloid mill is directly driven by a specially-made long-shaft motor to drive the rotating teeth. It has a compact structure, light weight, and small floor space. It solves the problem that domestic small colloid mills cannot work continuously for a long time due to insufficient power and poor sealing performance. Its overall structure is delicate, with small size, light weight, and a reliable sealing structure, and it can work continuously for a long time. The motor voltage is 220V, which is especially suitable for small enterprises and laboratory work.

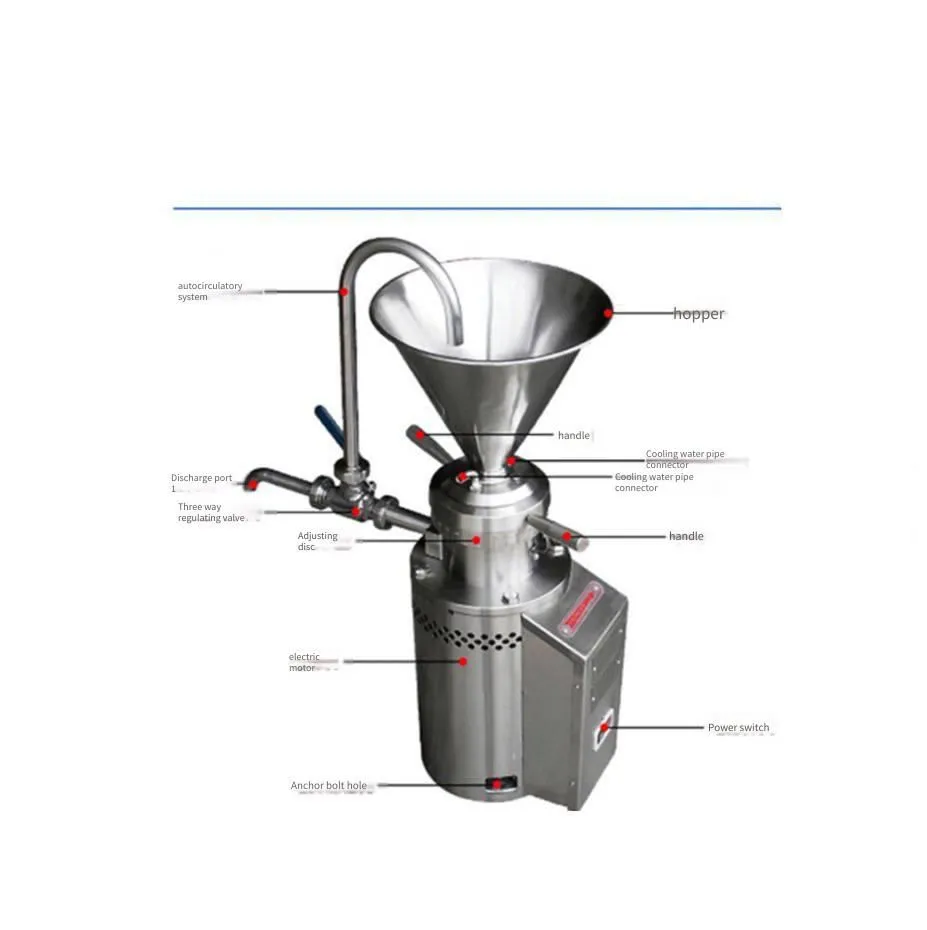

Colloid mill structure
The colloid mill is a product with multiple patents: it has the characteristics of compact design, practical new model, beautiful appearance, good sealing, stable performance, convenient operation, simple decoration, durability, wide adaptability, and high production efficiency. It is the most ideal processing equipment for processing fine materials. Except for the motor and some parts, all parts of the colloid mill product that come into contact with the material are made of high-strength stainless steel. In particular, the key moving and static grinding discs are strengthened. Therefore, it has good corrosion resistance and wear resistance, making the processed materials pollution-free and hygienic.
Processing state: Multi-stage online emulsifying disperser
Equipment functions: In-line, dispersion, emulsification, hygienic grade
The colloid mill is widely used in: cream, cosmetics, toothpaste, fruit juice, salt solution, catalyst, polymer emulsion, insecticide, herbicide, fungicide, etc.
How to choose a colloid mill?
Look at the model: The size of the colloid mill model determines its output.
Look at the flow rate: The flow rate of the colloid mill is not constant. The flow rate changes of materials with different concentrations and viscosities vary greatly.
Circulation pipe: Suitable for materials with low viscosity that require circulating reflux grinding, such as soy milk and mung bean drinks.
Square opening: Suitable for materials with medium to high concentration that do not require reflux grinding, such as peanut butter and chili sauce.
