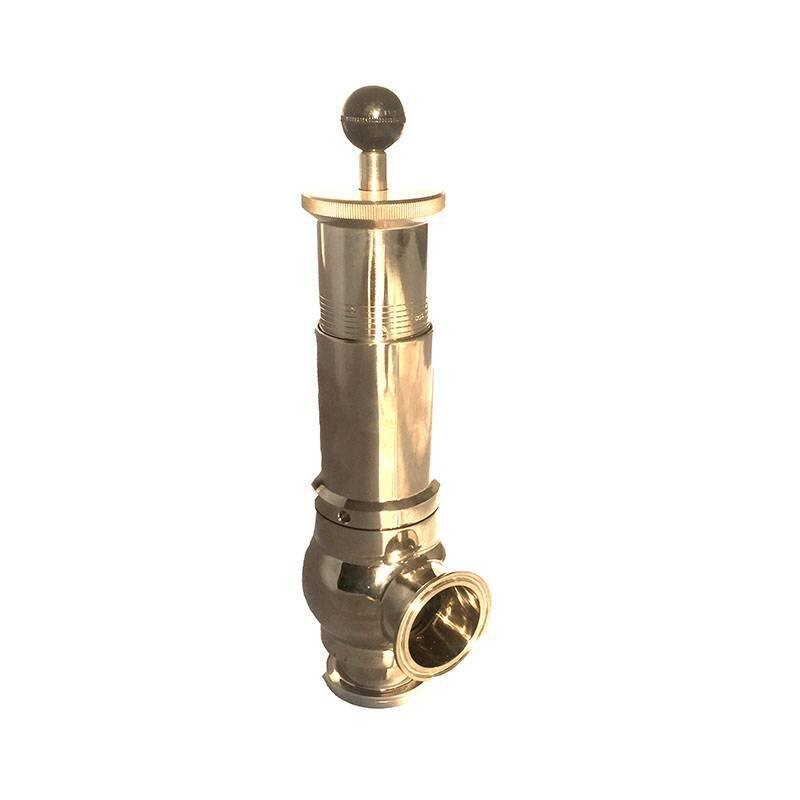

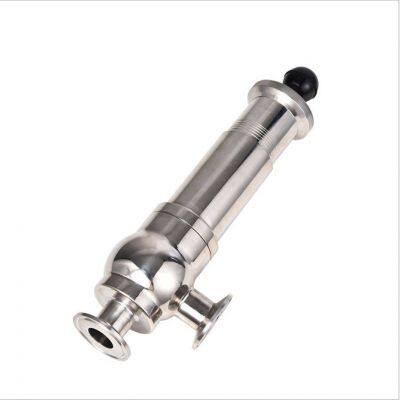

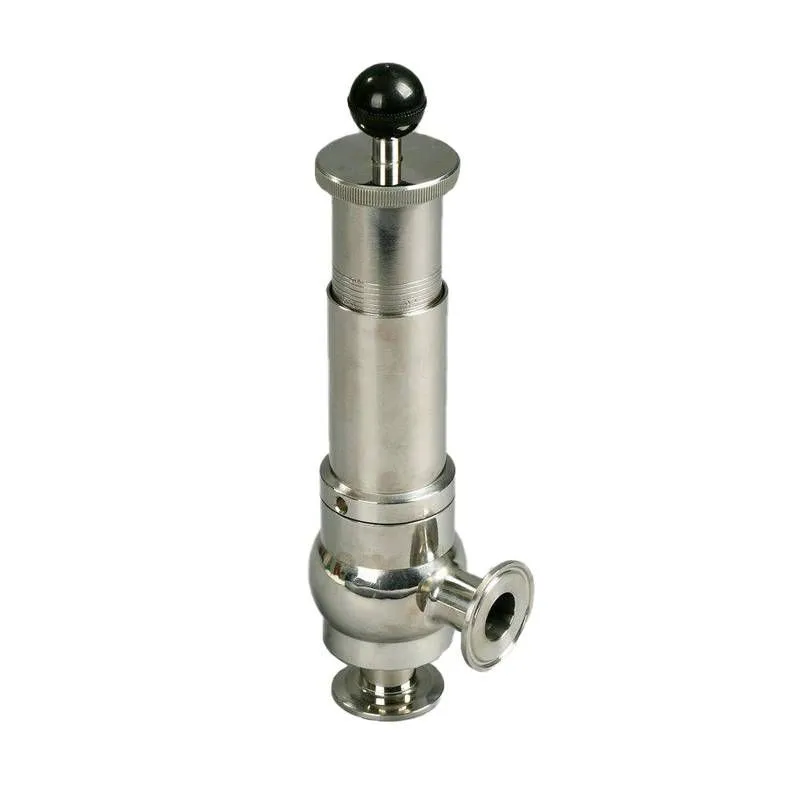

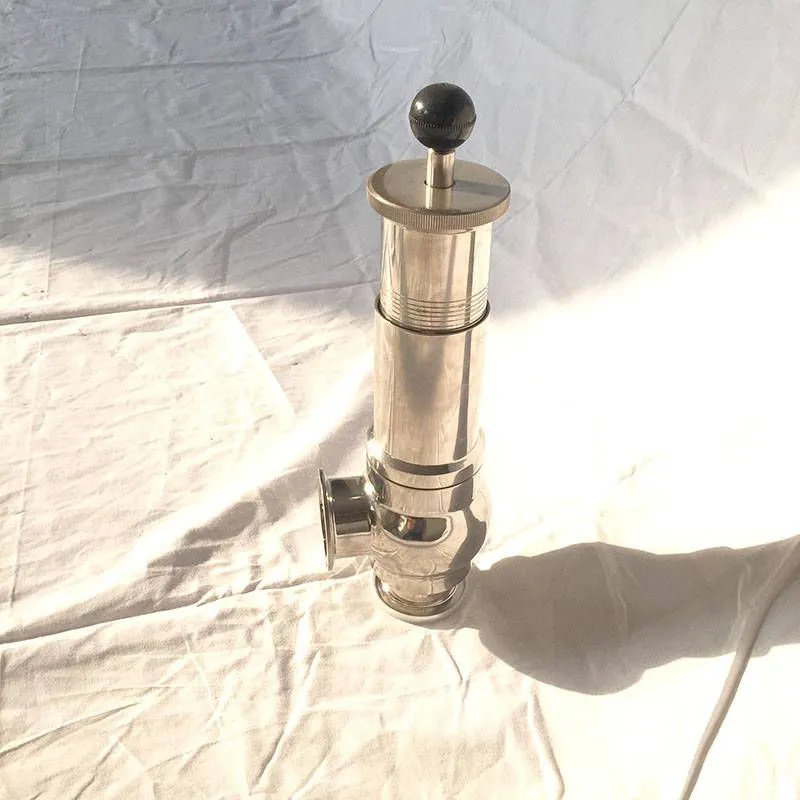

Help CenterSanitary Safety Valve, Made of Stainless Steel 304, With Quick-connect Design and Pressure Adjustment Function, Relief Valve With Pressure Range From 0.1mpa to 0.6mpa
Related Products
-
Stainless Steel Precision Casting Industrial Grade Wafer Type Four-eared Butterfly Valve D71x Straight Rod Handle Adjustable Control ValveUS$ 23.08 - 30.77MOQ: 1 Piece -
Stainless Steel 304 Hygienic Quick Coupling Sight Glass, Fluid Observation Sight GlassUS$ 13.85MOQ: 1 Piece
-
304 Stainless Steel Milk Pump Loading Filter With Quick-connect Threaded Joints Dn40 and Dn50, in StockUS$ 46.15MOQ: 1 Set
-
Field my Dream 316l Stainless Steel Union, German Standard Din 11850/11851 Dairy FittingsUS$ 5.38 - 7.69MOQ: 1 Set
-
Stainless Steel 304 Sealed Barrel, Wine Barrel, Food Storage Tank, Snap-on Lid, Mirror-polished Oil Drum, Closed Metal BarrelUS$ 35.38MOQ: 1 Piece
Sanitary safety valves and sanitary quick-install safety valves play a safety protection role in the system. When the system pressure exceeds the specified value, the safety valve opens, discharging a part of the gas in the system to ensure that the system pressure does not exceed the allowable value, thus preventing the system from accidents due to excessive pressure.
Working Principle
This series of safety valves calibrate a specific pressure by adjusting the compression nut of the spring. The calibrated pressure is a pressure value set to avoid equipment damage. Under normal working pressure, the valve is closed; when the system pressure exceeds the calibrated pressure, the valve opens. The pressure in the pipeline system is released, thereby protecting the pipeline and equipment. This valve also has a starting and opening device for CIP cleaning of the safety valve and its pipeline.
Safety valves are relatively special valves and have undergone strict calibration before leaving the factory. However, in order to make the valves operate more in line with the actual working conditions, the valves should be calibrated on-site as much as possible when conditions permit.
Structural Form and Features
1. It has a series of advantages such as simple structure, beautiful appearance, quick pressure adjustment, and convenient maintenance.
2. The pressure control is adjustable and can be adjusted arbitrarily within the safe range.
3. The valve body is made of acid-resistant stainless steel, with a bright and clean surface. The seals are made of special food-grade rubber, and the product complies with hygiene standards.
4. When installing, pay attention to the fluid input direction. Reverse input is not allowed.
Description of Sanitary Safety Valve
A safety valve is a valve for safety protection. Its opening and closing parts are normally closed under external force. When the pressure of the medium in the equipment or pipeline rises and exceeds the specified value, it will automatically open, and prevent the medium pressure in the pipeline or equipment from exceeding the specified value by discharging the medium outside the system. Safety valves belong to the category of automatic valves and are mainly used on boilers, pressure vessels and pipelines to control the pressure not to exceed the specified value, playing an important protective role in personal safety and equipment operation.
Design and Features of Sanitary Safety Valve
Simple manual adjustment
Execution standards: 3A ISOF SMS DIN
Applicable temperature: -10℃～120℃
Inner surface treatment (Ra): <0.8> Outer surface treatment: Mirror polishing
Made of SUS304 and SUS316L materials.
Applications of sanitary safety valves:
This valve is used to protect the safety of pressure in pipes, pumps, accessories, pools, etc. through which the fluid flows.
The valve is designed to be healthy and safe, preventing dangers and equipment failures caused by pressure.
With its sanitary design and full stainless - steel construction, this valve is the choice for protecting equipment in the dairy, food, beverage, pharmaceutical, and fine chemical industries.

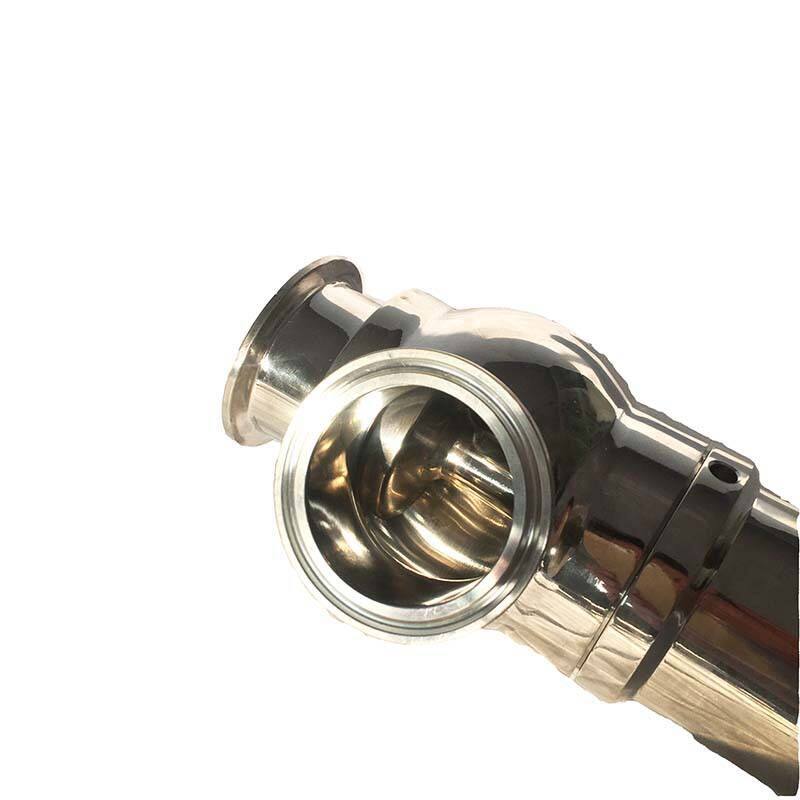

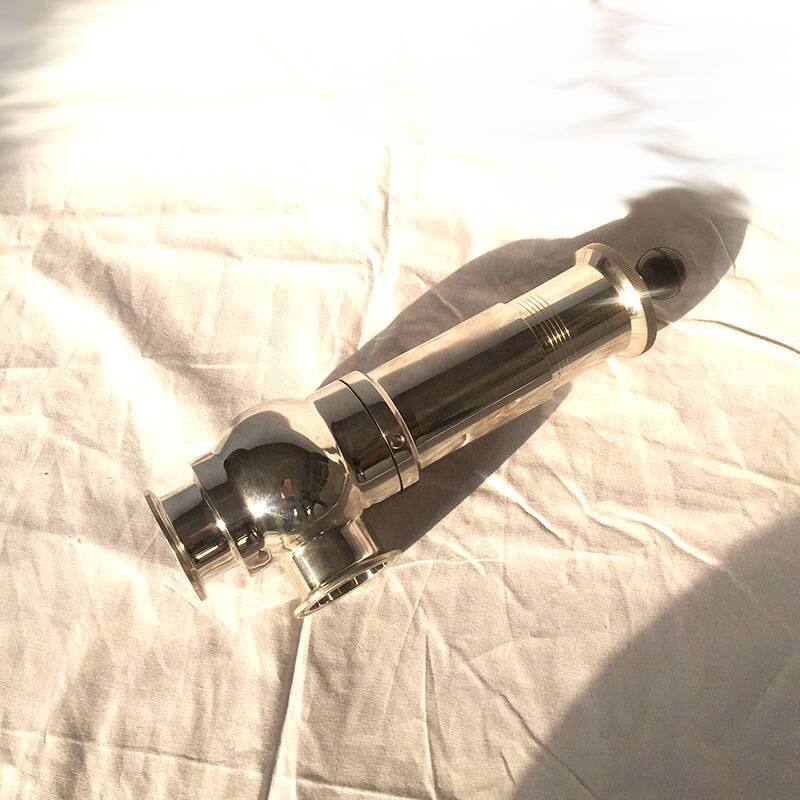

The safety valve is polished both inside and outside, with a quick - connect interface. The material is 304. It can be with or without scale lines. The pressure adjustment range can be customized from 0.1Mpa to 0.6Mpa. It automatically relieves pressure after the pressure is set, protecting pipes or containers.
