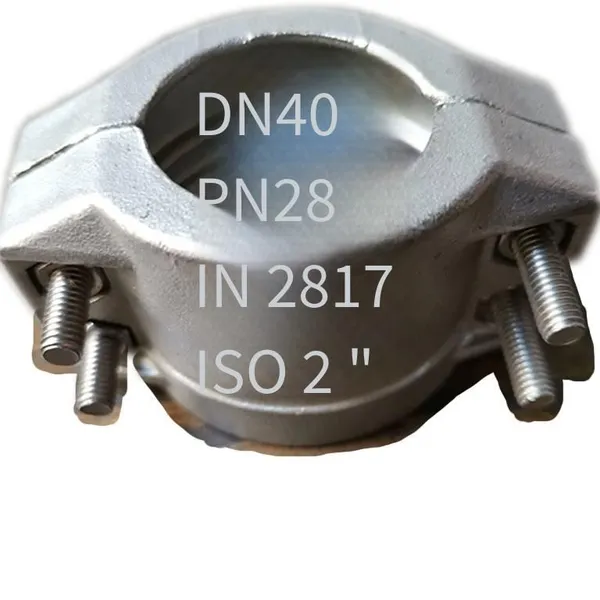

Help CenterSafety Clamps Din2817 Stainless Steel 304 Safety Pipe Clamps Double Bolt Wide Clamps Hose Clamps High-pressure Hose Clamps
Related Products
-
Stainless Steel Male and Female Threaded Union, Cast Pipe Fittings With Male and Female Threads UnionsUS$ 3.23 - 3.85MOQ: 10 Sets -
Ibc Powder Butterfly Valve, Discharge Valve at the Bottom of Turnover Silo, Large Diameter Butterfly Valve, Sanitary Butterfly Valve, Center Clamp Butterfly ValveUS$ 140.77 - 153.85MOQ: 1 Piece
-
316 Stainless Steel Fixed Cleaning Ball Spray Nozzle Cleaning BallUS$ 5.38MOQ: 10 Pieces
-
304 Stainless Steel Baijiu Glass, Small Stemmed Glass, Thickened Stainless Steel Wine Cup, Shatterproof DrinkwareUS$ 40MOQ: 1 Set
-
13sf Heavy-duty Double-pin Round Clamp, 304 Stainless Steel Quick-installation Connector, Universal ClampUS$ 2.31 - 2.77MOQ: 1 Piece
This product is widely used in industries such as tank transportation, petrochemical, beverage industry, food industry, blast furnace ironmaking, airport refueling, and liquefied gas.
Production standards: DIN2817 standard, EN14420-3 standard

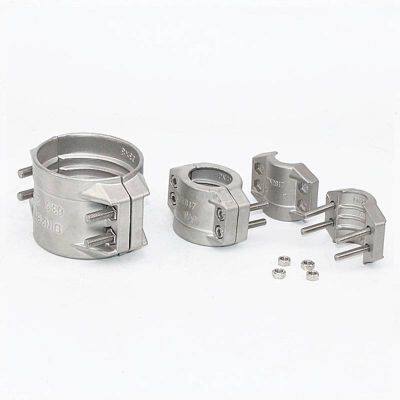

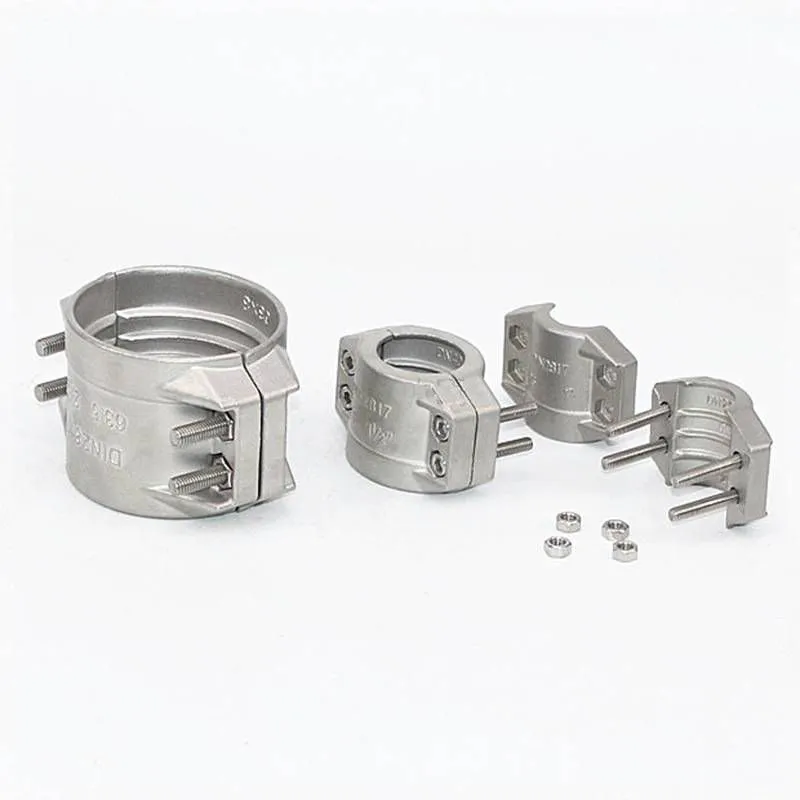

Body: Two-piece clamping body, 4 nuts
(The material of the screw and nuts is normally carbon steel, and it can be changed to stainless steel.)
Material: Stainless steel 316
Working pressure: 2.5Mpa
Nominal Diameter: DN15 - DN150

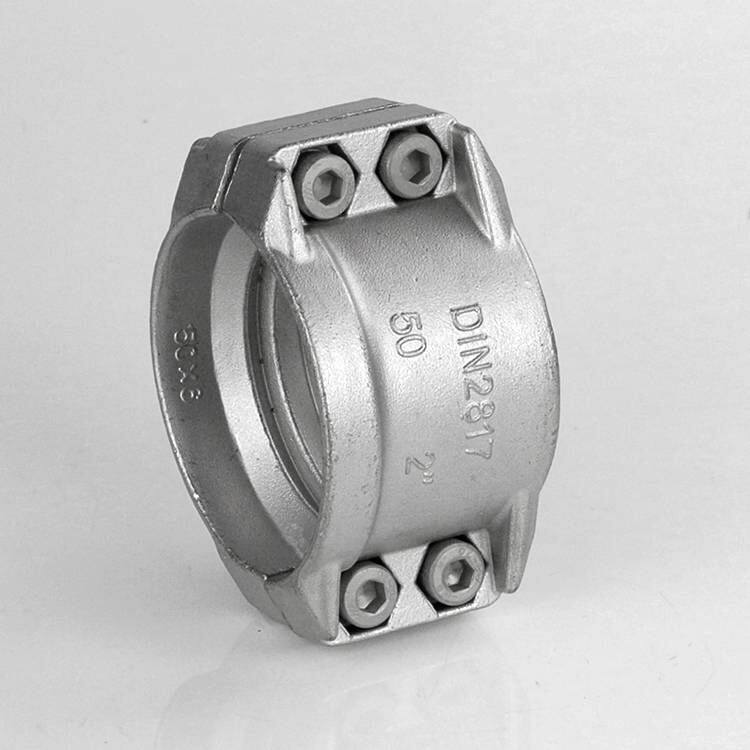

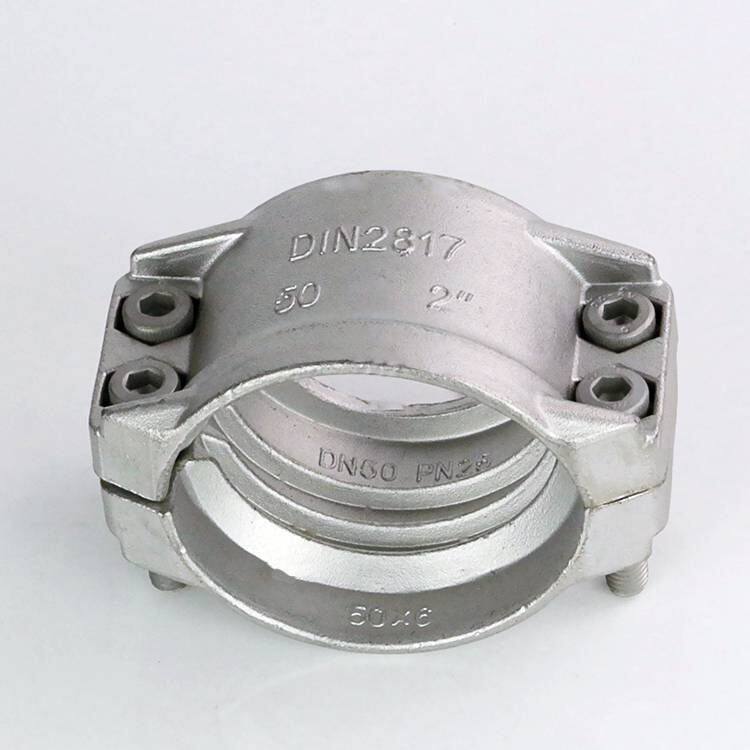

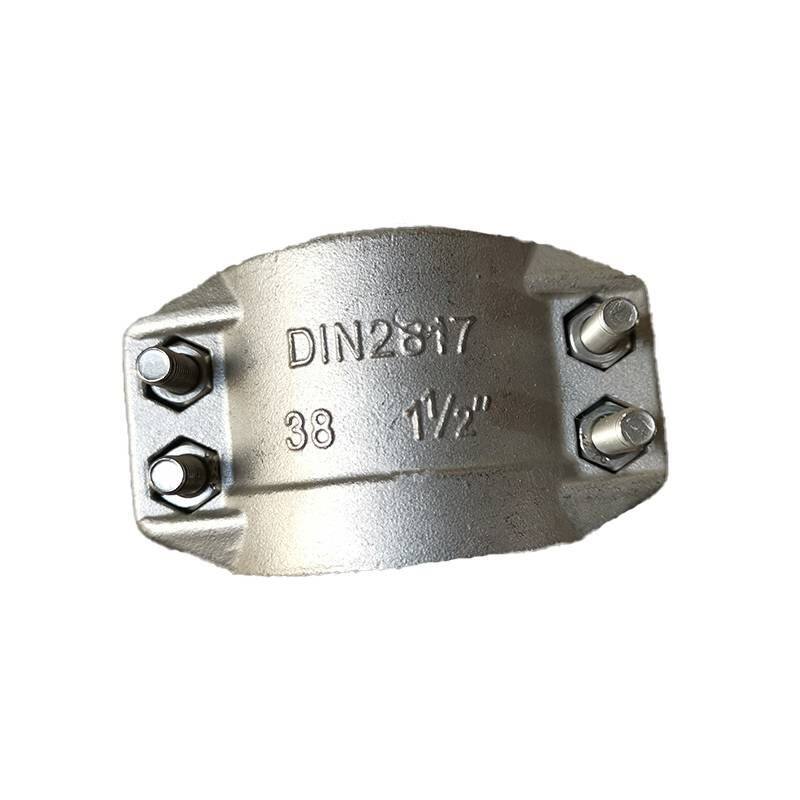

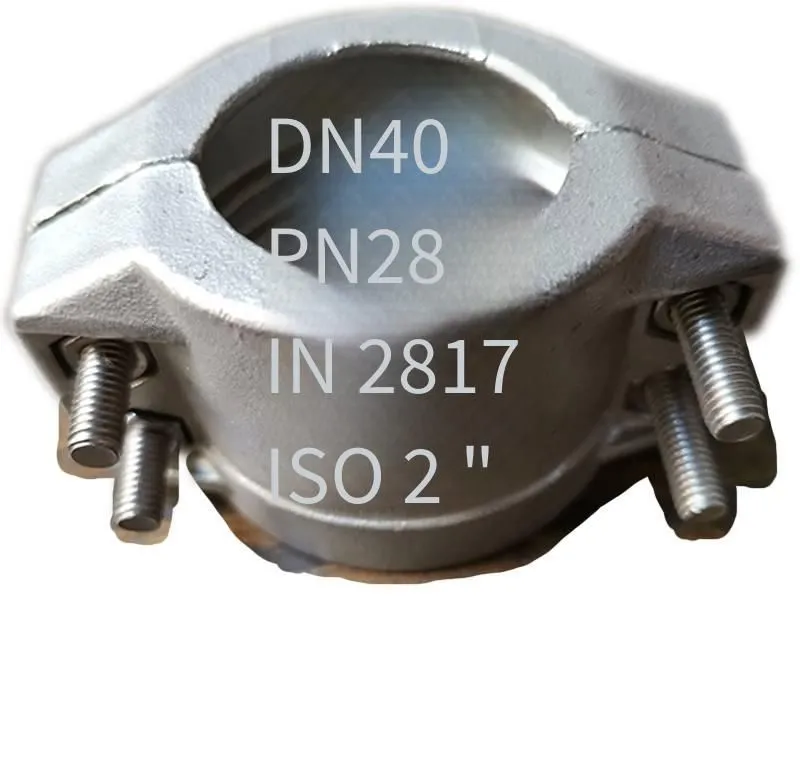

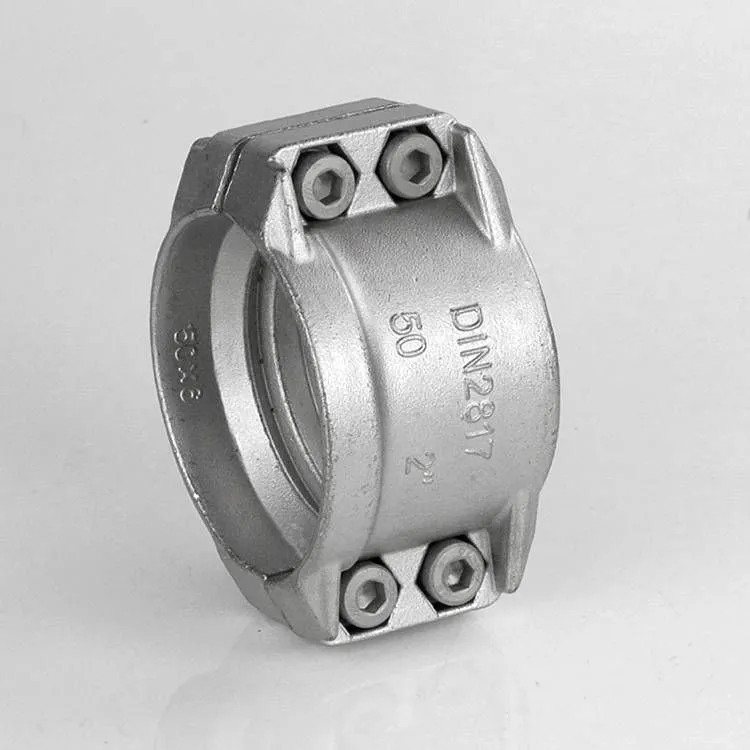

The EN14420 safety clip is composed of two clips and screws and nuts. We also call it a safety hose clamp. It is suitable for fixing hoses and joints, and its specifications range from 1/2 inch to 6 inches. Its production standard is EN14420-3; when using the appropriate size, it can achieve seamless closure. The DIN2817 safety clip has the advantage of convenient installation in industry, which saves a lot of time for constructors.
___________________________________________________________________________________________________________
1. Material: Aluminum alloy, stainless steel
2. Standard: DIN 2817
3. Safety clamp specification code: RK series - Clamp
4. Working pressure: 2.5Mpa
5. Nominal diameter: DN15 - DN150
The EN14420 safety clip is composed of two clips and screws and nuts. We also call it a safety hose clamp. It is suitable for fixing hoses and joints, and its specifications range from 1/2 inch to 6 inches. When using the appropriate size, it can achieve seamless closure. The DIN2817 safety clip has the advantage of convenient installation in industry, which saves a lot of time for constructors.
_______________________________________________________________________________________________

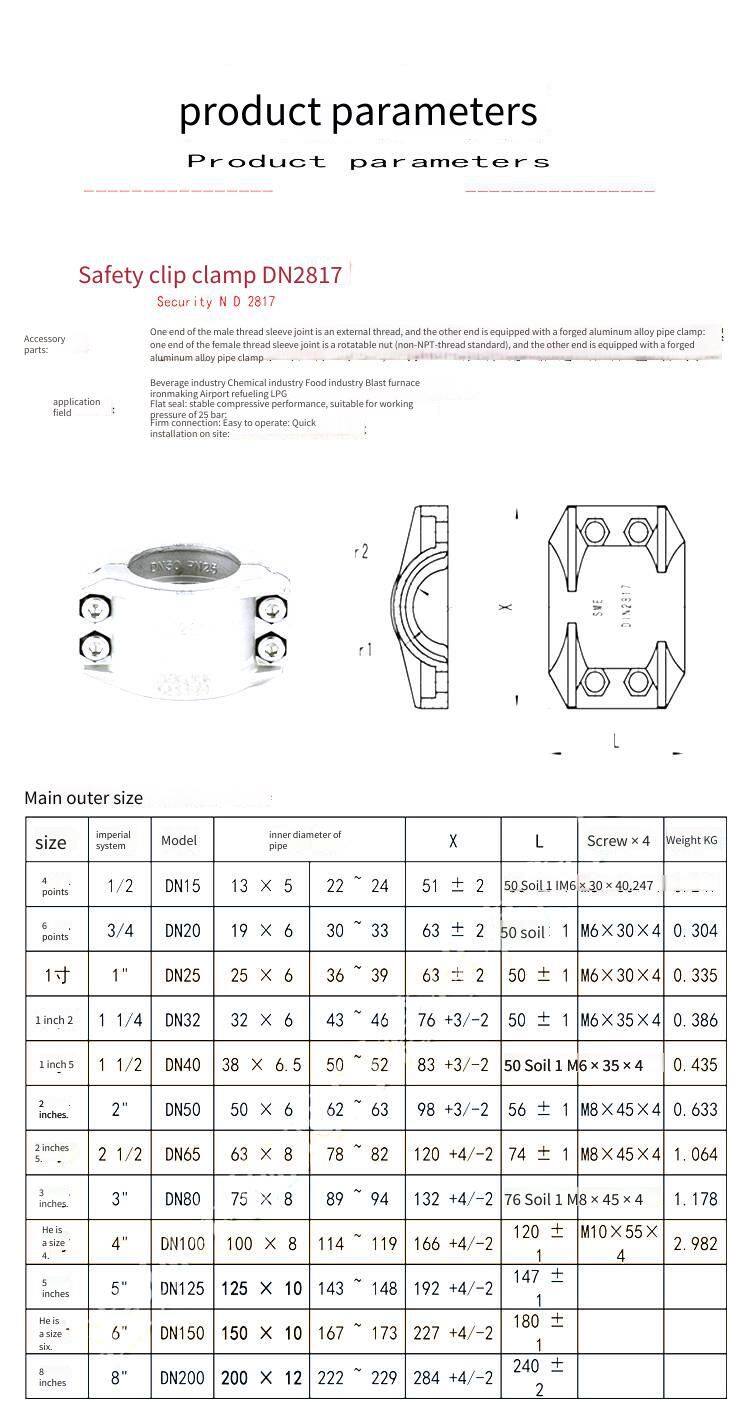

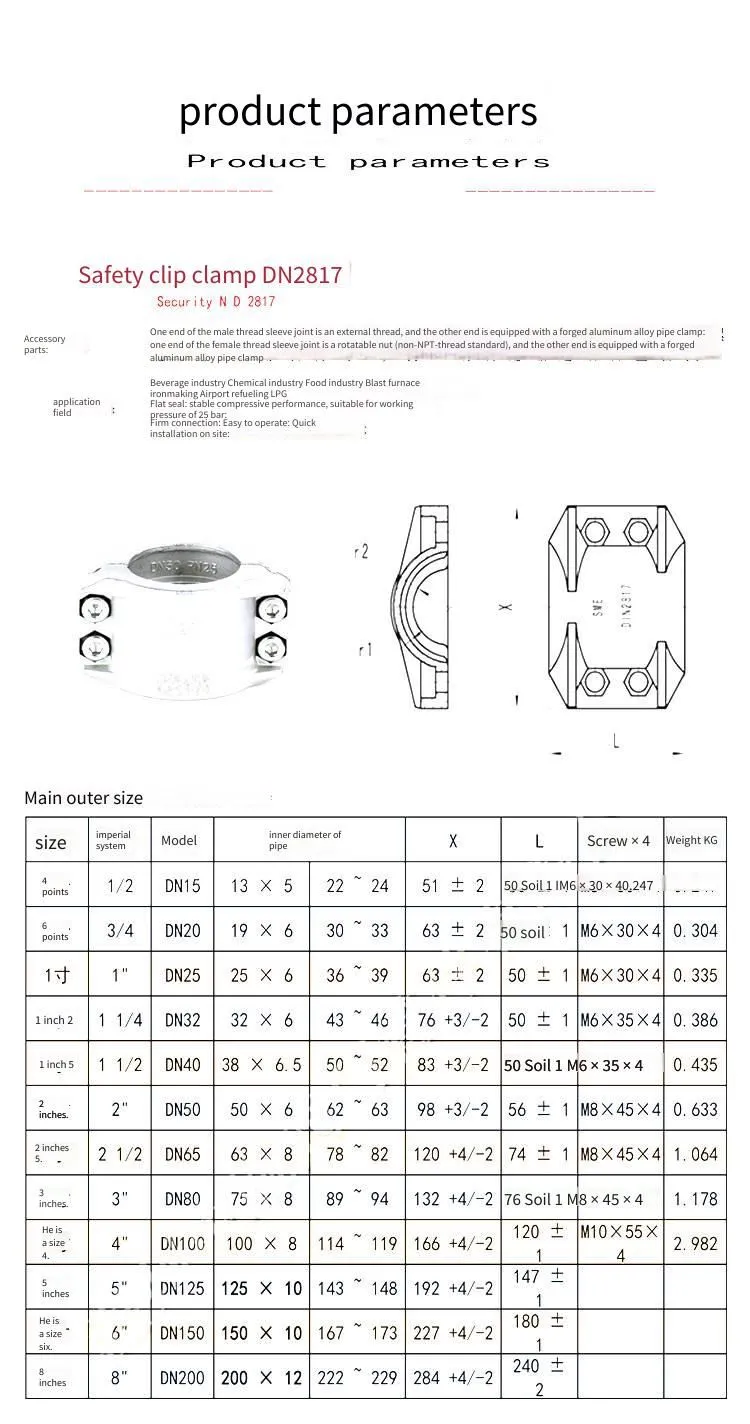

The reference dimensions of the safety clip, clamp, and hoop are as follows:
