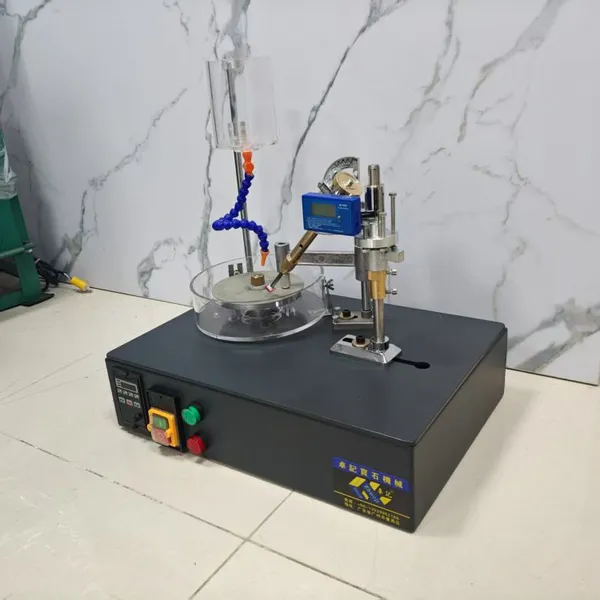

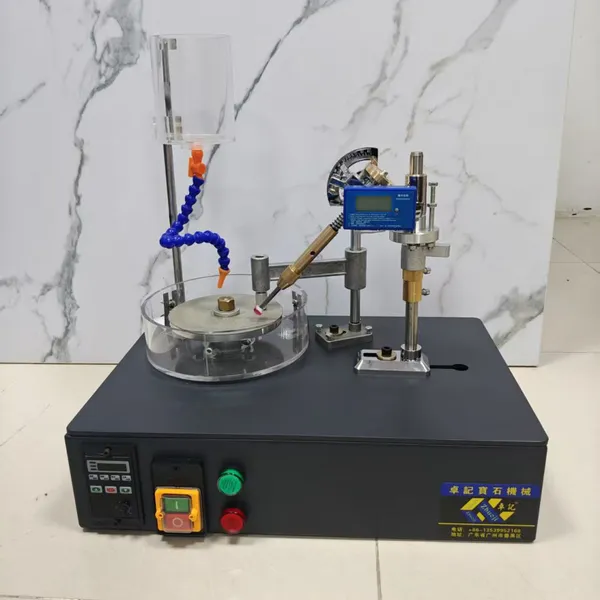

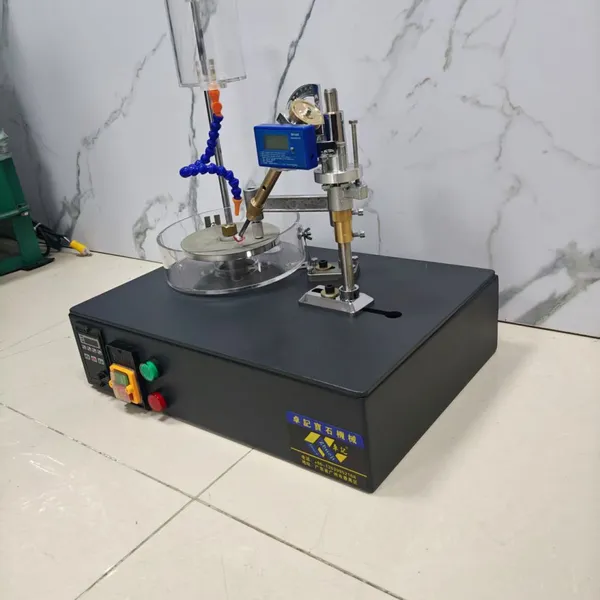

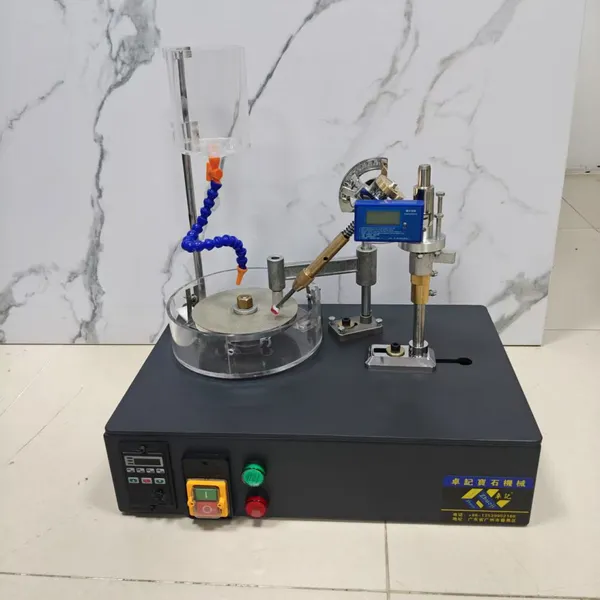

Xiongxing Faceting Grinding and Polishing Machine Permanent Magnet Synchronous Motor
Part No. 810508138 Model XX-3000D
The angle machine is a precision integrated device professionally designed for shaping, grinding, and polishing gemstone cabochons. Featuring electronic stepless speed regulation, it flexibly adapts to processing requirements for gemstones of varying hardness. By swapping out contouring dies and grinding wheels, this machine efficiently produces uniformly sized, high-precision faceted gemstones. It finds extensive application in jewelry workshops, gem processing plants, and educational laboratories.
Equipment Background
Faceted gemstone craftsmanship originated in Europe. Its ability to fully showcase the visual appeal of transparent, vividly colored stones with high luster has made it an indispensable technique in high-end jewelry. The Xiongxing Faceting Machine inherits and refines this traditional craftsmanship. Through modular design and stable mechanical construction, it achieves high-quality, efficient gemstone shaping and polishing.
Core Features
1. Multi-Mold Compatibility: Supports octagonal, hexagonal, pentagonal contour plates or robotic indexing discs (with 32, 56, 64, 96 divisions), enabling effortless processing of various faceted gems.
2. Stepless Speed Control: Features electronic stepless speed adjustment within the preset range, adapting to processing requirements for gemstones of varying hardness (e.g., crystal, agate, emerald).
3. High Stability: The workpiece clamping device maintains smooth, vibration-free operation even at high speeds of 2800 r/min, particularly suited for processing small-sized workpieces ranging from 2mm to 50mm.
4. Multi-Functionality: Integrates shaping, grinding, and polishing processes. Compatible with diamond curved discs for processing curved gemstone settings (e.g., oval, marquise).
5. Versatility: Supports processing nearly 50 gemstone shapes including square, round, heart, marquise, and triangle. Suitable for all types of colored gemstones, semi-precious stones, and optical materials.
Technical Specifications
Power Supply Voltage: 220V
Rated Power: 1000W
Dimensions: 500mm (L) × 350mm (W) × 200mm (H)
Motor Speed: 1400–2800 rpm (steplessly adjustable)
Sanding Disc Size: Supports 8-inch discs
Processing Range: Workpiece dimensions approx. 2mm–50mm
