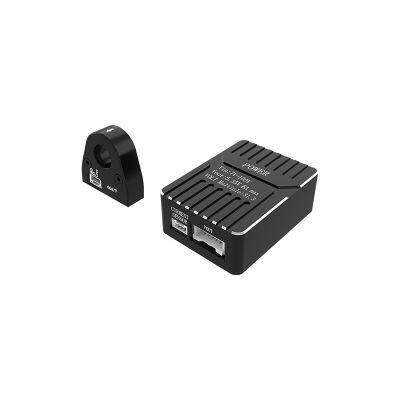

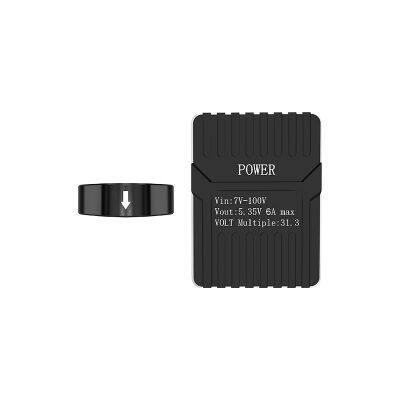

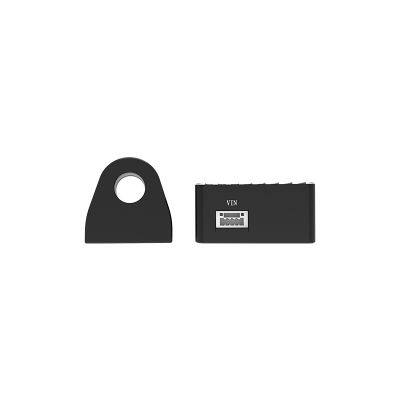

PowerCore Hall Effect Power Module - Detailed Product Description
Model Number: PowerCore Hall Effect Power ModuleCore Positioning: A high-performance power supply core component, suitable for surveying and mapping, agriculture, infrastructure and other field operation equipment, providing stable and reliable power support.
I. Core Advantages
Precise Hall Effect Control, High Efficiency & Energy Saving
Built-in advanced Hall effect sensing technology, it can monitor current and voltage changes in real time to achieve precise power regulation and overload protection. Compared with traditional power modules, the power conversion efficiency is increased by more than 15%, effectively reducing equipment power consumption and extending outdoor operation time.
Wide Voltage Input Compatibility, Flexible Application Scenarios
Supports a wide voltage input range and is compatible with various battery types, matching the power supply requirements of different operation equipment. It can maintain stable output even under voltage fluctuation, avoiding equipment shutdown or failure caused by unstable voltage, and is suitable for complex outdoor operation scenarios.
Multi-Protection Design, Safe & Durable
Integrated with four protection mechanisms: overvoltage, overcurrent, short circuit and overheating. It automatically cuts off the circuit in case of abnormal working conditions, providing all-round protection for the module and downstream equipment. Adopting a flame-retardant and high-temperature-resistant shell with an IP65 protection rating, it can withstand harsh environments such as sand, rain and high temperature, meeting the requirements of all-weather operations.
Lightweight & Portable Design, Easy Installation
Adopting a compact structure design, it is small in size and light in weight, and can be directly embedded in the equipment or installed externally. Equipped with standard interfaces, it is compatible with the wiring specifications of mainstream equipment, realizing plug-and-play without complex debugging, which greatly reduces the cost of installation and maintenance.
II. Application Scenarios
Surveying and Mapping Equipment: Cooperate with positioning modules to provide stable power supply for outdoor surveying and mapping instruments.
Agricultural Equipment: Adapt to agricultural machinery automatic driving systems to ensure continuous power supply during operation.
Infrastructure Equipment: Used in engineering monitoring instruments to operate stably in complex construction environments.
Industrial Equipment: Provide reliable power support for mobile robots and automatic detection equipment.
III. Product Specifications
| Item | Specification |
|---|---|
| Input Voltage Range | DC 9-36V |
| Output Voltage | DC 5V/12V/24V (Optional) |
| Output Current | Max 10A |
| Conversion Efficiency | ≥92% |
| Protection Rating | IP65 |
| Operating Temperature | -20℃ ~ +70℃ |
| Dimensions | 50mm×40mm×20mm |
| Installation Method | Embedded/External |
