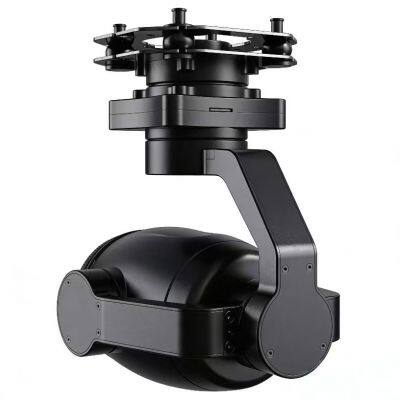

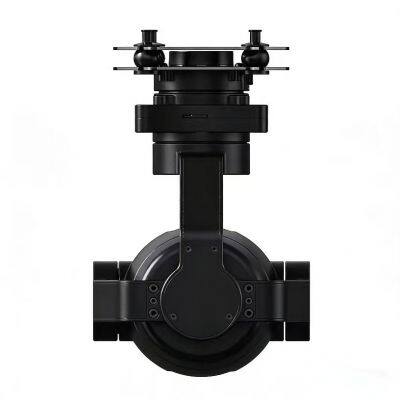

Detailed Description of ZR30 Gimbal Camera
The ZR30 is a high-performance compact 3-axis gimbal camera designed specifically for aerial shooting, outdoor surveying, cinematography and other scenarios. It integrates high-definition imaging, stable anti-shake and flexible control features, and is suitable for mounting on various portable flying carriers. It serves as a core accessory for professional image acquisition and industrial-grade visual applications.
I. Core Hardware Specifications
1. Lens & Image Sensor
- Equipped with a 1/1.8-inch CMOS sensor with 20 million effective pixels, it supports 4K/60fps ultra-high-definition video recording and 1080P/120fps slow-motion shooting, with the maximum static photo resolution reaching 5472×3648.
- Features an 8.8mm fixed-focus lens (equivalent to 35mm focal length) with an aperture range of F2.8-F11 and a field of view of 78°. It supports auto/manual focus switching, with a minimum focusing distance of 0.1 meters, enabling clear capture of close-up details and long-distance scenes.
2. Gimbal Performance
- Adopts a 3-axis mechanical stabilization gimbal (pitch/roll/yaw) with an anti-shake precision of ±0.01°, which can counteract jitters and offsets during carrier movement to ensure smooth and stable footage.
- Gimbal rotation range: pitch from -90° to +30°, roll ±180°, yaw ±320°, supporting 360° unlimited rotation for unobstructed shooting angles.
3. Physical Specifications
- The whole unit weighs only 185g with dimensions of Φ68mm×128mm. Its compact and lightweight design meets the load requirements of small carriers.
- With an IP43 protection rating, it can resist light dust and splashes, adapting to shooting in complex outdoor environments.
4. Battery Life & Interfaces
- Built-in removable lithium battery, a single battery supports up to 90 minutes of continuous operation, and supports hot-swappable battery replacement (requires matching with the carrier's power supply system) for uninterrupted shooting.
- Equipped with HDMI, USB-C and SDK expansion interfaces, supporting real-time video output, data transmission and third-party device control, and can be connected to ground stations for remote parameter adjustment.
II. Core Functional Features
1. Intelligent Shooting Modes
- Supports intelligent modes such as waypoint following, trajectory time-lapse and panorama stitching. Shooting paths can be preset via supporting software to automatically complete complex image acquisition tasks.
- Integrates Electronic Image Stabilization (EIS) and digital anti-shake technology, combined with the 3-axis mechanical gimbal to achieve "dual stabilization", further enhancing footage stability in dynamic scenarios.
2. Low-Light Shooting Optimization
- The sensor has a native ISO range of 100-6400, supporting night mode and long-exposure shooting. Multi-frame synthesis algorithms reduce noise, ensuring clear image quality even in low-light environments.
3. Quick Deployment & Control
- Adopts a quick-release mounting structure, enabling assembly and disassembly with the carrier in just 30 seconds, compatible with mainstream quick-release interface standards.
- Supports wireless remote control (2.4G/5.8G dual-band) and wired control, with a control delay as low as 50ms, allowing real-time adjustment of shooting parameters and gimbal angles.
4. Data Security & Storage
- Built-in MicroSD card slot supporting up to 1TB high-speed memory cards, with loop recording and emergency save mechanisms to prevent shooting data loss.
- Supports real-time image transmission with a maximum distance of 5km in unobstructed environments, allowing ground terminals to monitor shooting footage in real time.
III. Applicable Scenarios & Applications
1. Professional Cinematography: Suitable for aerial tracking shots in microfilms and commercials, with flexible gimbal angles and high-definition image quality meeting the needs of professional video production.
2. Industrial Surveying: In scenarios such as power line inspection, topographic mapping and agricultural plant protection, it can quickly collect high-definition image data to assist staff in environmental monitoring and analysis.
3. Outdoor Adventure Shooting: Compatible with portable carriers to access complex environments such as mountains and oceans, capturing perspectives and footage unreachable by conventional shooting equipment.
4. Security Surveillance: Paired with mobile carriers for temporary security deployment, transmitting real-time monitoring footage, applicable to large-scale event security and campus patrols.
