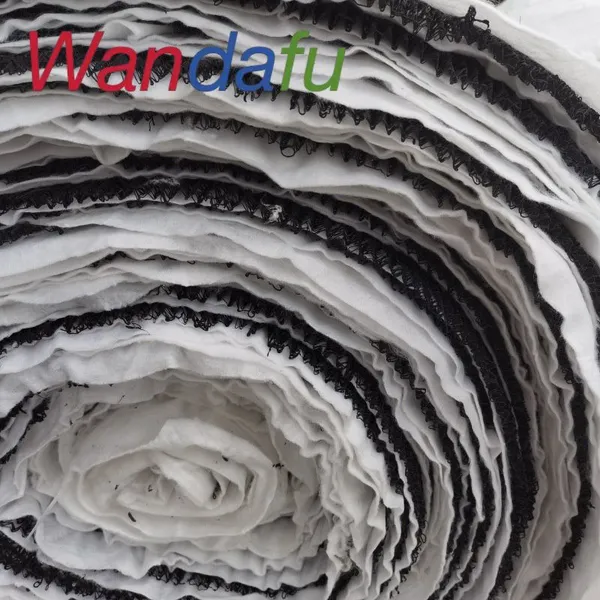

Help CenterWandafu High-efficiency Drainage Filtration & Anti-clogging Composite Drainage Geomat
Related Products
-
Wandafu 3D Composite Drainage HDPE 3D Drainage Geomat Geosynthetic Drainage NetUS$ 1.28 - 1.48MOQ: 1000 Square Meters -
Wandafu PEE Composite Drainage Filtration LayerUS$ 3.78 - 4.28MOQ: 1000 Meters
-
Wandafu Customized Processing Available Direct Factory Highway Subgrade High Permeability Corrosion Resistant Permeable Drainage MatUS$ 1.28 - 1.48MOQ: 1000 Square Meters
-
Wandafu Hexagonal Gabion Mesh Engineering Gabion Protective Wire Cage Seawall Wave ProtectionUS$ 1.28 - 1.48MOQ: 1000 Square Meters
-
Wandafu Custom Size PVC Gabion Retaining Wall System Easy Installation Gabion Mesh for Construction ProjectUS$ 1.28 - 1.48MOQ: 1000 Square Meters
Product Introduction

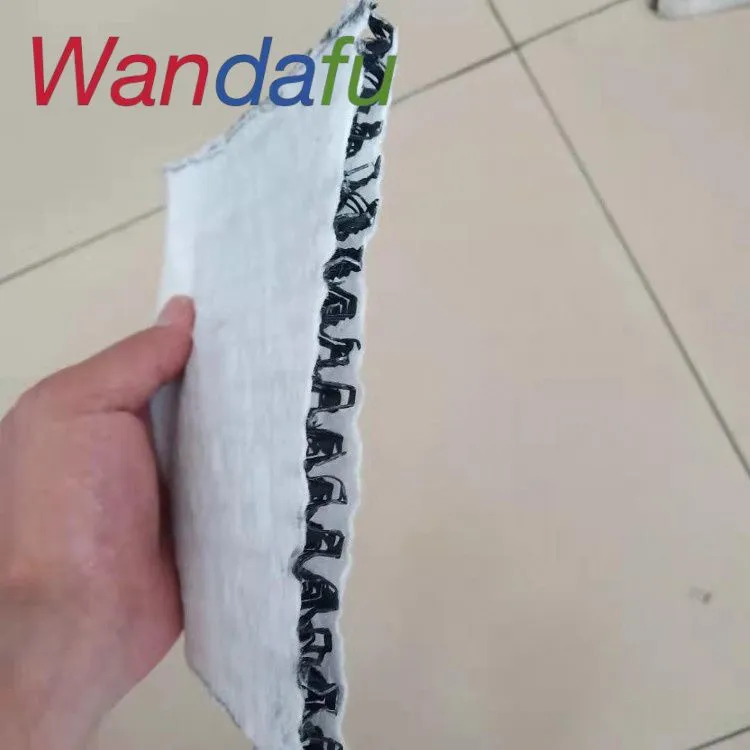

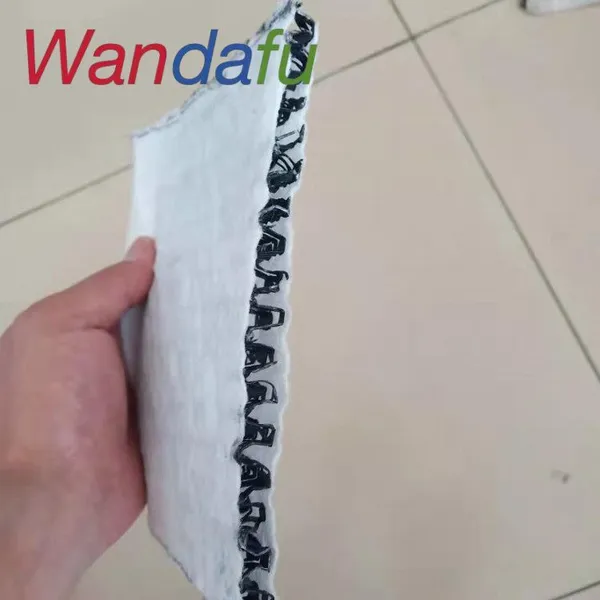

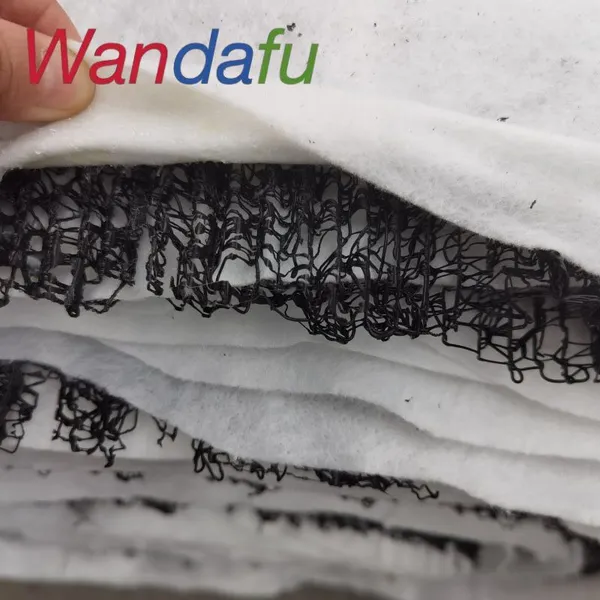

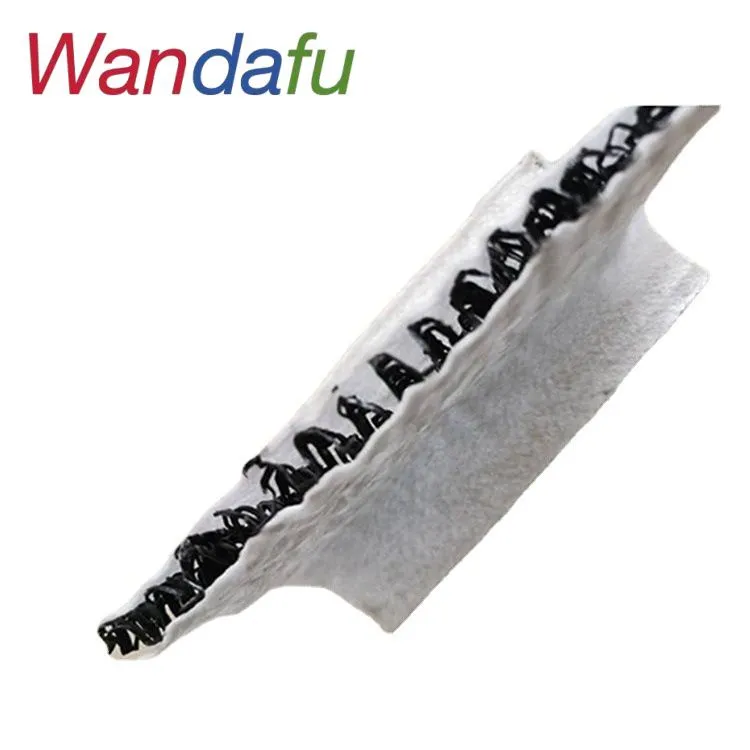

The composite waveform drainage pad is composed of two layers of non-woven fabric combined with a central drainage core board. The drainage core board is made of polypropylene as the raw material and is specially extruded to form a "wave" shaped longitudinal full section continuous drainage channel. Due to the continuous and straight channels inside the drainage core board, different channels do not interfere with each other horizontally, allowing seepage water to pass through at a fast speed and achieve good drainage effect. The upper and lower composite layers of non-woven fabric play a filtering role, preventing particles from entering the drainage channel and blocking it in practical engineering applications, ensuring the integrity of the soil structure and preventing structural deformation or collapse. In projects with special anti-seepage requirements, a composite layer of geomembrane can be chosen to achieve anti-seepage effect. Therefore, this product actually combines three functions of drainage, filtration, and anti-seepage, and is a typical multifunctional material
Core Features
1. Efficient drainage: The waveform structure forms a continuous longitudinal drainage channel, quickly extracting accumulated water from the soil and reducing pore water pressure.
2. Filtration and blockage prevention: The composite geotextile filter layer can intercept soil particles, prevent drainage channel blockage, and allow water to pass freely.
3. Compressive and durable: The waveform core layer is mostly made of high-strength materials such as HDPE, which has good compressive performance and is not easily deformed after burial, ensuring long-term drainage effect.

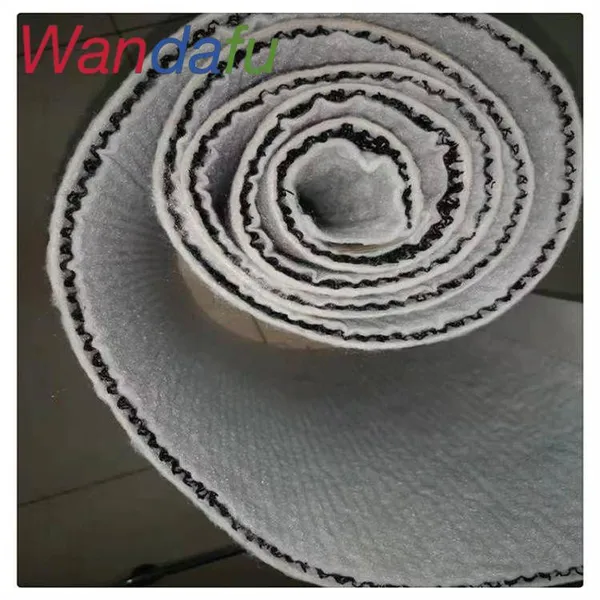

4. Convenient construction: It can be supplied in a roll shape, directly laid and overlapped on site, without the need to build additional drainage blind ditches, saving construction time.
Main usage scenarios
1. Roadbed and pavement drainage: Horizontal/vertical drainage of highway and railway roadbeds to prevent water accumulation and settlement of roadbeds.
2. Drainage of retaining wall/foundation pit: Drainage of the back of the retaining wall and the side walls of the foundation pit reduces the lateral pressure of the soil and avoids water seepage from the wall.
3. Underground garage roof drainage: Used in conjunction with roof greening, to drain accumulated water from the roof and protect the waterproof layer.
4. Slope drainage: Internal drainage of slope soil to reduce the risk of landslides caused by rainwater infiltration.
5. Landfill drainage: leachate drainage from the landfill lining system, as well as surface drainage after closure.
Product Specifications
Core thicknesses of 3.5mm, 4.5mm, 5.5mm, 6.5mm, 7.5mm, 8.5mm
ABOUT US
Tai 'an WDF Polymer Composites Co., Ltd. is located in Tai 'an City, Shandong Province, China.
Our company mainly produces geogrids, geotextiles, geomembranes, geocells, slope greening materials, drainage and drainage products, and serves roads, railways, water conservancy, coal mine landfills and tailings ponds. The company has a number of geogrid geotextile production lines, with an annual production capacity of 20,000 tons, and its products are exported to more than 50 countries and regions. We have been deeply involved in geosynthetics for 20 years and are members of China Geosynthetics Association. We have established a complete industrial chain in product development and production, marketing system and engineering application.We are willing to establish long-term, stable, cooperative and win-win business relations with friends from all over the world under the principles of honesty, trustworthiness, quality assurance, fairness and reasonableness. Welcome friends from all over the world to visit our company.
Send Inquiry to This Supplier
