Crawler Burr Deflashing Sand Blasting Machine Automatic Tumble Belt Small Deburring Sand Blasting Machine

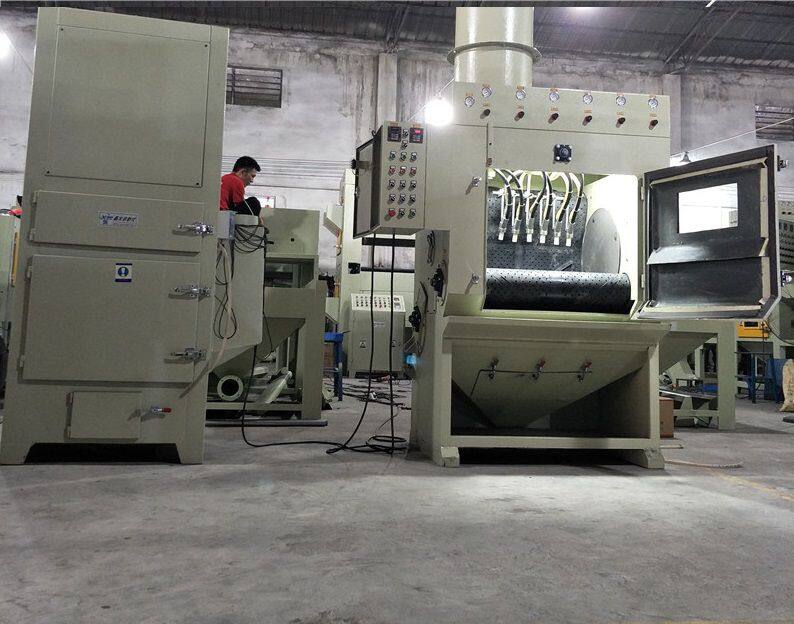

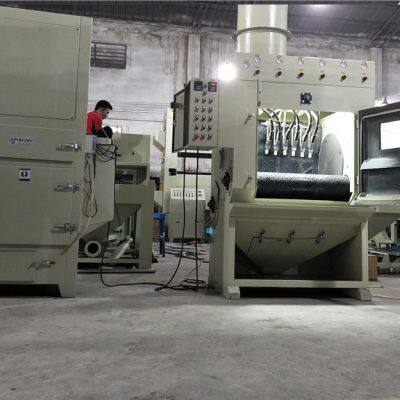

6 gun track rolling burr machine product real-life photos
This machine adopts suction sandblasting, which uses compressed air to flow at high speed inside the spray gun to create negative pressure and generate projection effect. The sand in the separator dust removal box is sucked into the spray gun through the conveying pipe, and then sprayed at high speed from the spray gun nozzle to the surface of the workpiece with the compressed air flow, achieving the purpose of sandblasting processing.
Features of this machine:
1. The machine features a simple and reliable structure. Easy to operate, high processing efficiency, low energy consumption,
2. The spray gun can swing, automatically or manually, and the swing of the spray gun can be adjusted.
3. The spray gun group adopts a fixed structure that can adjust the spraying distance and angle to achieve good results
4. This machine is equipped with a separator that can separate usable abrasives from useless dust, thus greatly reducing the consumption of abrasives.
Basic parameters of 6 gun track rolling automatic sandblasting machines:
1: Dimensions of the host: 1230MM, length 900MM, width 1920MM, height
2: Work compartment size: 900mm wide 600mm long 450mm high

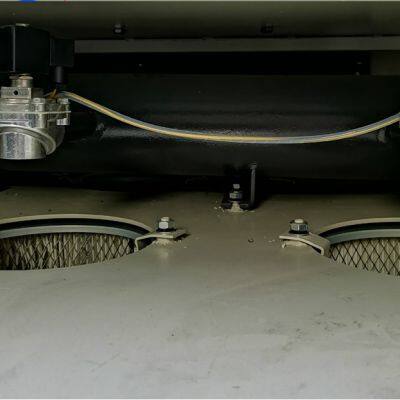

3: Dust removal box size: 1000mm wide, 1000mm long, 2300mm high (4 dust removal filter elements, 4kw high-pressure fan)
4. Power supply: 380V 50HZ
5. Lighting: 220V 18W energy-saving LED light
6. Air requirement: pressure 5-8BAR (KG/cm2), air requirement is above 6 cubic meters
7. Dust removal fan, 380V 50HZ 5.5KW
8. Airflow: 2504M3/H
9. Track load capacity: 100KG
10. The total power of this machine is approximately 7KW
11. The homework time is about 5-8 minutes
Machine construction:
Cold rolled steel plate
The machine is made of seamless welding of 3MM cold-rolled steel plates, with a surface painted and key areas in the sandblasting zone covered with silicone rubber
Auto Swing

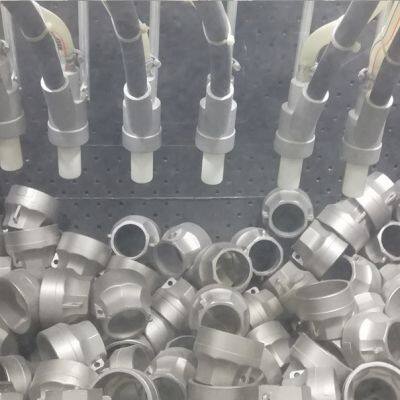

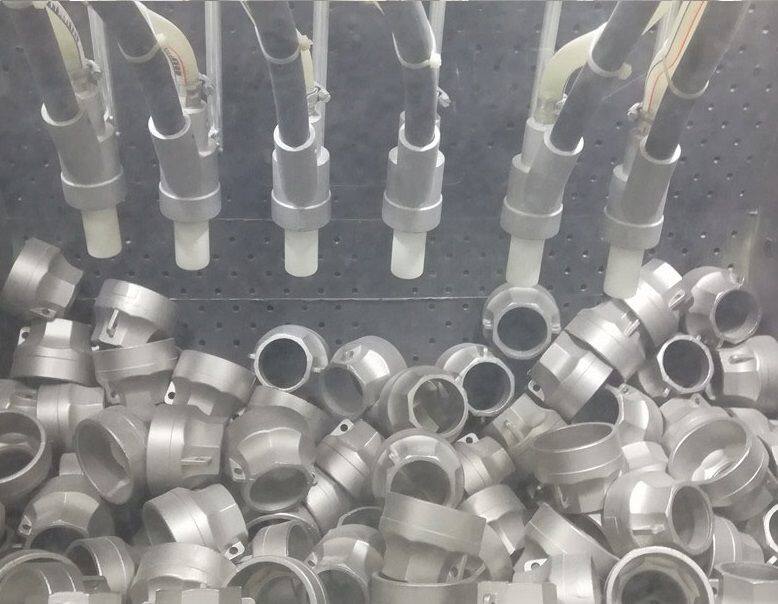

The sandblasting gun is equipped with 6 spray guns, which are equipped with imported boron carbide nozzles of 8MM in size and 60 in length. The spray guns are fixed with a fixed gun frame and can automatically swing. The angle and position can be adjusted according to the user's product needs
The design of this machine is innovative, allowing for direct observation of the entire processing process and real-time understanding of the machining situation
