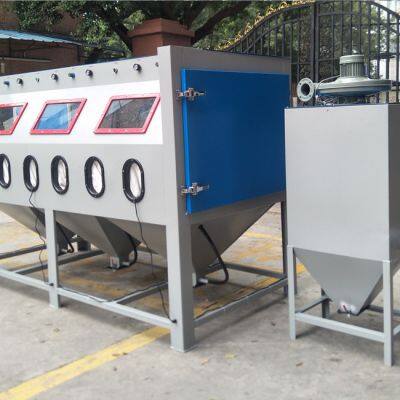

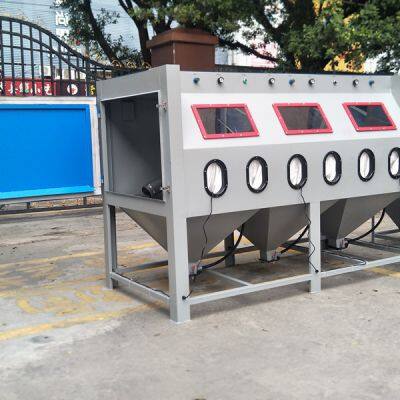

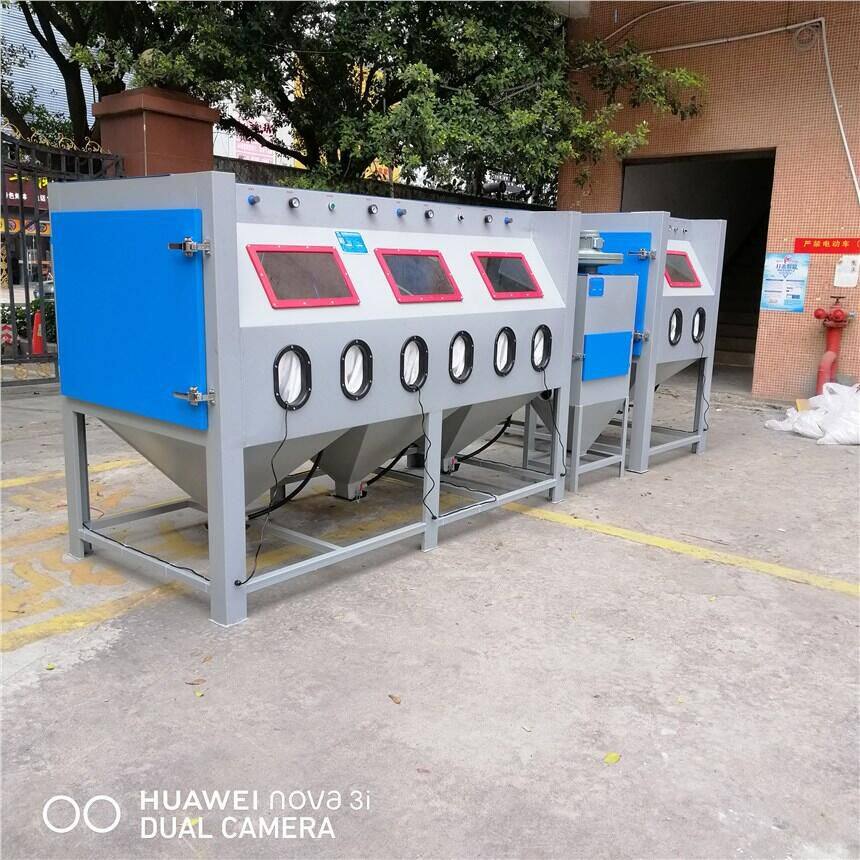

Basic parameters of three station manual box type environmentally friendly sandblasting machine:
Product category: Manual dry sandblasting machine
Product model: BY-3000mm
Equipment dimensions: 3030mm length * 1200mm width * 1850mm height
Equipment studio dimensions: 3000mm long * 1020mm wide * 830mm high
Inlet size: 1000mm wide * 720mm high

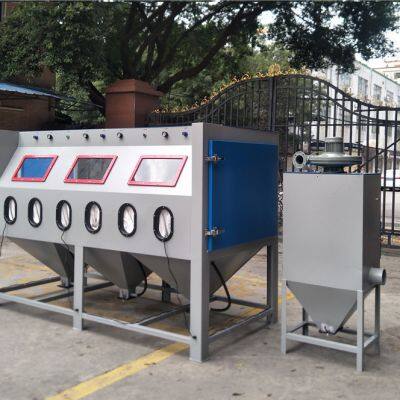

Independent dust removal box: 430 mm * 380 mm * 1700 mm
Dust removal fan: 750W 220V 50HZ
Number of spray guns: 3 (boron carbide, 8mm nozzle)
Eye protection frame; 3 of them
Operation opening: 3 gloves: 1 pair
Processing capacity per session: 30-150KG
Power supply: 220V/50HZ/750W
Work pressure: 2-7BAR
Machine lighting: 2 220V 5W LEDs
Air volume of separator: 8.5m3/min
Dust removal method: Bag filter box, using pneumatic automatic/manual dust removal
Air source requirement: pressure of 7BAR (kg/square meter)
Flow rate: 0.8-1.2 cubic meters per minute
Body material: 2mm cold-rolled plate (body electrostatically sprayed, not easy to scratch, long-lasting without discoloration or rusting)
Application scope of three station manual sandblasting machine:
1. This machine is designed specifically for molds or large, heavy, and irregular workpieces.
2. It can be equipped with a movable turntable and a trolley. When operating, simply place the workpiece on the trolley turntable and push it into the machine to engage in sandblasting operations, which is very simple and labor-saving. It can also be equipped with a timed heater to prevent glass beads from getting damp.
3. The turntable can be customized to rotate 360 degrees according to the size, weight, and shape of the workpiece provided by the customer. An electric speed control turntable can be installed to accelerate the processing speed and easily control the sandblasting quality.
4. The window is made of tempered glass with a layer of ordinary glass on the inside, making it very easy and fast to replace, and the line of sight is very clear.
5. This machine uses powder baking paint to achieve the requirements of beauty and durability.
6. The sand materials used are: alumina sand (corundum sand), silicon carbide (green silicon carbide, black silicon carbide), glass beads, walnut sand, resin sand, plastic pellets (nylon sand), ceramic beads, etc.
7. The metal parts of the sandblasting machine are basically not damaged, and the dimensional accuracy will not change;
8. The surface of the parts is not contaminated, and the abrasive will not undergo chemical reactions with the materials of the parts;
9. Sandblasting machines can easily handle difficult to contact areas such as grooves and indentations, and a variety of abrasive sizes can be selected for use;
10. The processing cost has been significantly reduced, mainly reflected in the improvement of the efficiency of sandblasting machines, which can meet various surface finishing requirements;
11. Low energy consumption and cost savings;
12. Sandblasting machines do not pollute the environment, saving environmental remediation costs
Three station mold cleaning and mist treatment manual sandblasting machine features:
Innovative design, scientific structure, and easy operation; Good processing efficiency and low energy consumption; Automatic sand return, cyclone separator can separate dust and sand; Combining technology from the same industry in the United States and Japan, the fine sand separation effect is particularly excellent, minimizing the loss of abrasives to the greatest extent possible; The main components are made of high-quality imported parts with a long service life.
Three station box type environmentally friendly manual sandblasting machine applicable scope:
Pre treatment of electroplating and spraying to improve adhesion; Heat treatment, descaling, residue removal, rust removal, oil removal, and refurbishment of various molds, castings, stamping parts, metal and non-metal surfaces; All ceramic products, glass products, plastic products with light decoration and atomization effects; Surface treatment for all metal products, glass, plastic crafts, jewelry, glasses, and clocks
Operation of manual sandblasting machine:
A: Connect the power supply (single-phase 220V, 50HZ), turn on the power switch, the lighting will turn on, and the dust removal fan will start;

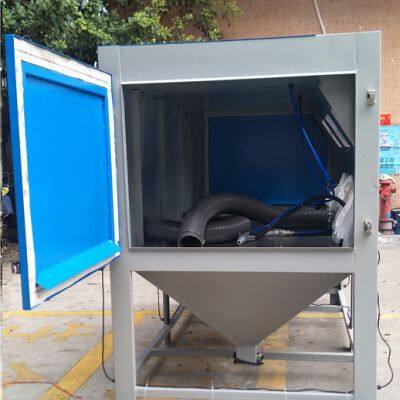

B: Place the parts to be processed on the workbench and close the work door;
C: Insert both hands into the work gloves, hold the spray gun with one hand, and grasp the workpiece with the other hand. Aim the spray gun nozzle at the workpiece to be sprayed; The spray gun can also be fixed on the bracket, and the workpiece can be held in both hands for relative movement under the spray gun to complete the sandblasting action;
D: Lightly press the foot switch, and compressed air will enter the spray gun. The abrasive will be sprayed from the bottom of the separator storage box into the spray gun according to the set amount, and under the action of compressed air, it will be sprayed at high speed onto the surface of the workpiece being processed;
E: During the sandblasting process, on the one hand, it is necessary to maintain an appropriate spraying distance and angle between the spray gun and the workpiece, and on the other hand, to make relative movement between the spray gun and the workpiece, so that the workpiece is uniformly subjected to abrasive spraying processing until satisfactory results are achieved;
F: After processing, the foot must be moved away from the foot switch, and the spray gun must stop spraying abrasive before opening the work door and removing the parts;
G: If further processing of parts is required, there is no need to turn off the dust removal box fan and lighting power supply in the middle; Otherwise, it will be closed;
H: After work, stop working and turn off the power switch, unplug the power plug, and disconnect the air source connector.

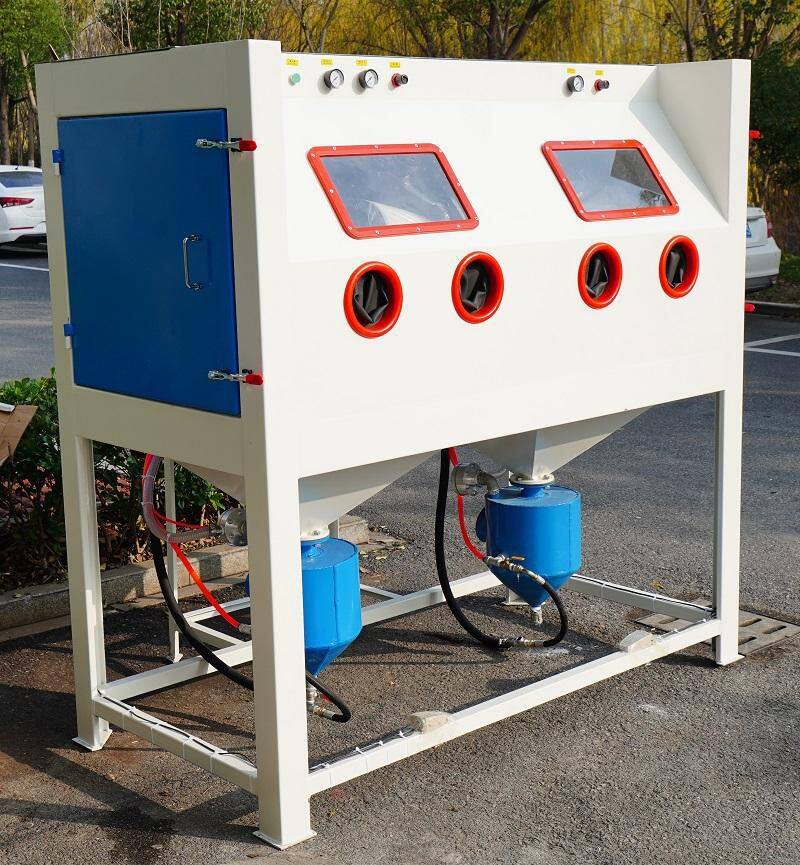

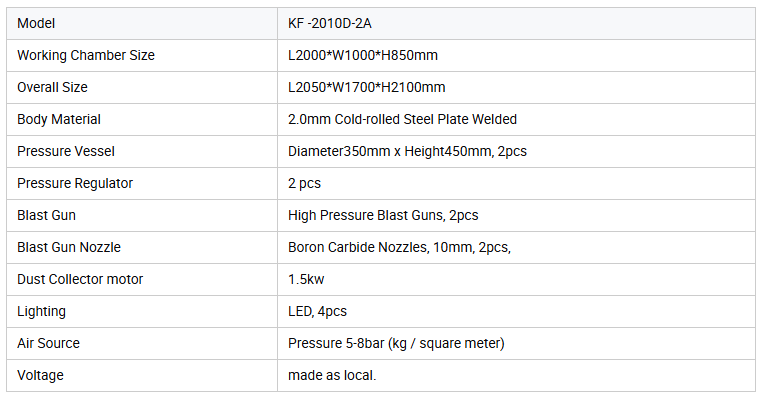

Big Sand Blasting Cabinet Manual Double Station Pressure Sandblasting Machine
This big pressure sandblasting machine with double working stations is designed for operating larger workparts. Pressure type blasting cabinet delivers higher abrasive velocity for greater impact intensity.
As the medias are delivered at a much higher velocity that causing poweful cutting force, pressure blast cabinet is ideal for tough cleaning jobs, such as removing heavy burrs, thick oxide layers and old coats, or treating hard materials, work can be done 3-5 times faster than a suction blast cabinet

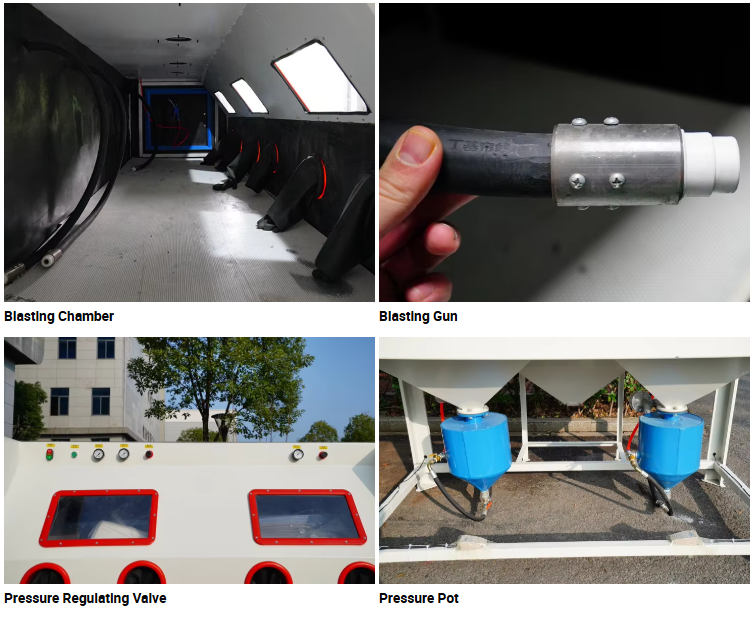

Double Stations Pressure Sandblasting Machine Features
1. Enclosed cabin design without dust leakage during blasting, cause no pollution to environment and is safe to operators.
2. Built with filter cartridge collector to capture even ultrafine dust, filter is automatically cleaned by pulse valve. It ensures vented air is clean.
3. Used abrasives are collected in the funnel that can be recycled for many times, reducing consumption and save cost.
4. Newly-developed pressure abrasive valve improves processing quality, reduces compressed air consumption.
5. Pressure type blast gun with boron carbide nozzle are extremely durable that guarantees long service life.
