Q37 Series Hook Type Membrane Shell Shot Blasting Cleaning Machine, Vibration Free Shell Shot Blasting Machine, Wax Film Casting Enterprise Special

Q37 series hook type membrane shell shot blasting cleaning machine, vibration free shell shot blasting machine, wax film casting enterprise special

Why do wax casting companies choose specialized vibration free shell shot blasting machines?
Special vibration free shell shot blasting machine for wax casting Introduction

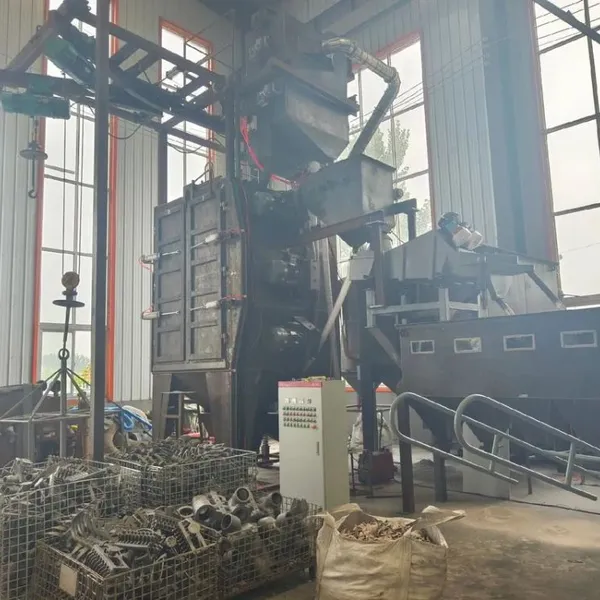

The hook type shot blasting cleaning machine consists of a shot blasting cleaning room, a hoist, a separator, a screw conveyor, two shot blasting machine assemblies, a shot control system, a hook walking track, a hook system, a self rotating device, a foundation, a dust removal system, and an electrical control part.
Special vibration free shell shot blasting machine for wax casting Scope of Application
The Q37 series hook type shot blasting cleaning machine is mainly suitable for surface treatment of various medium and large castings, forgings, welded parts, and heat-treated parts, including fragile and irregularly shaped workpieces.
Special vibration free shell shot blasting machine for wax casting advantage
The hook type shot blasting machine has the advantages of no pit, high cleaning efficiency, good continuity, and labor saving.

Special vibration free shell shot blasting machine for wax casting Product Features

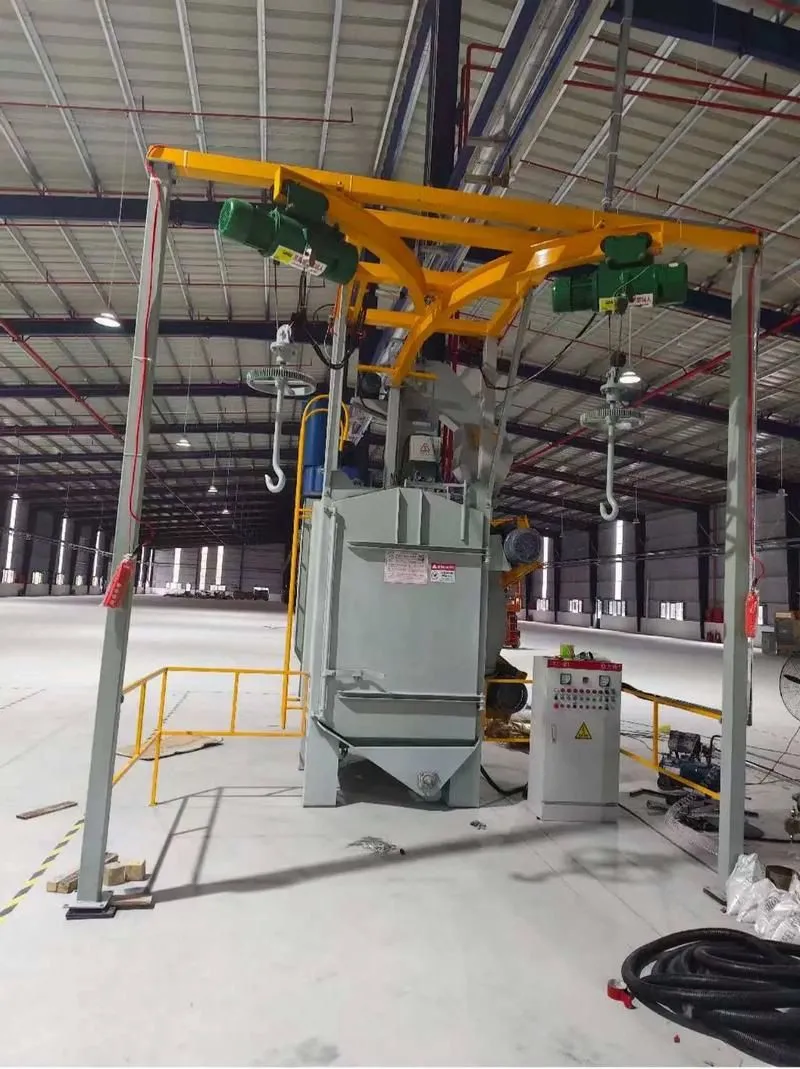

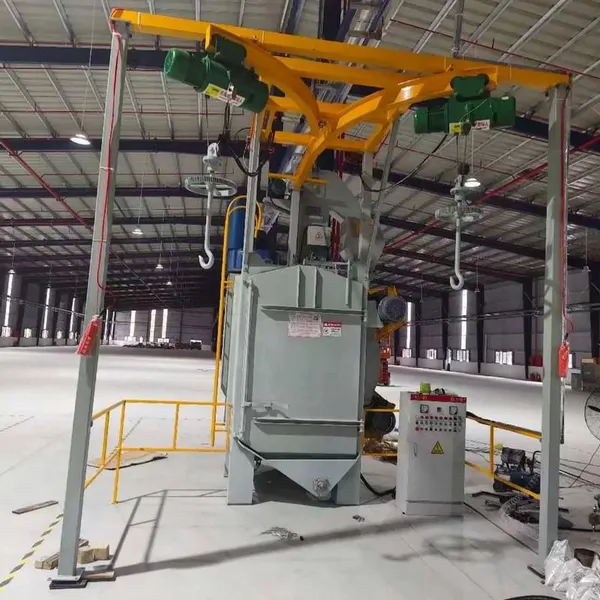

1. There are two types of hooks: single hook and double hook, which can be selected according to the actual situation.
2. No pit, energy-saving cost.
3. The equipment has low noise and meets environmental standards.
4. Customized designs can be made to increase and widen the size.
5. The operation is simple and convenient, and the cleaning process can be completed in 5-7 minutes.
6. Save labor costs.
7. Brand electrical and accessories with lower failure rate and longer lifespan!
8. Free maintenance during the warranty period!
9. The material of the room body protective plate is rolled manganese 13 protective plate, which is more wear-resistant!

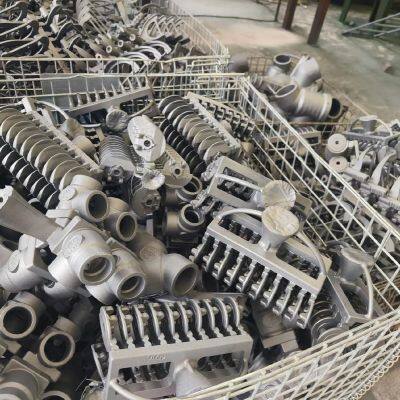

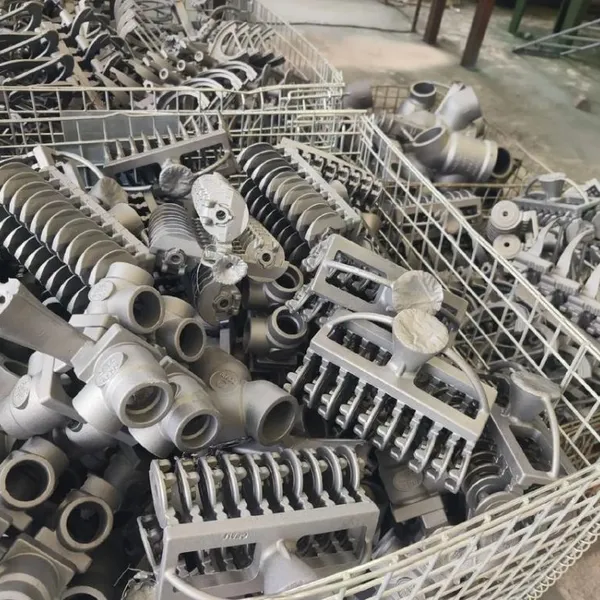

The hook type shot blasting machine is divided into single hook and double hook. The suspended shot blasting machine loads the workpiece into the shot blasting cleaning room through the hook. Using a shot blasting machine to throw the projectile onto the surface of the workpiece, achieving a certain roughness, making the workpiece more aesthetically pleasing, or changing the compressive stress of the workpiece to increase its lifespan. This model is widely used for surface cleaning or strengthening treatment of small and medium-sized castings and forgings in industries such as casting, construction, chemical engineering, motors, and machine tools ..
Special section: vibrating screen:

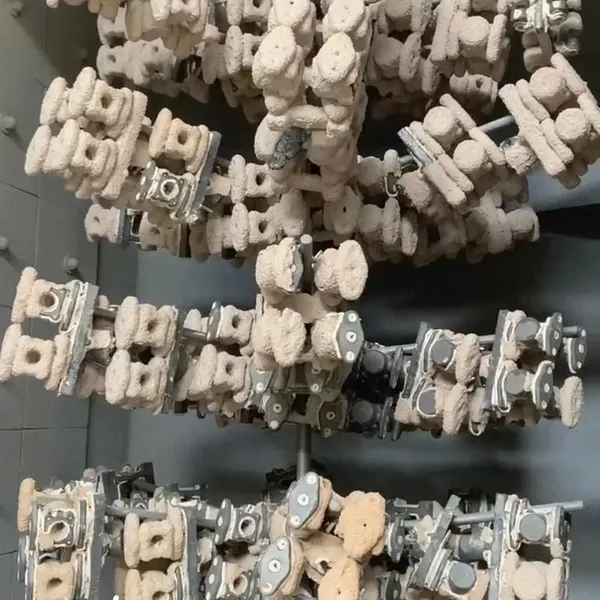

In this plan, multi-stage vibrating screens are used to separate the pellet and shell materials, namely the lower bin vibrating screen, separator vibrating screen, and pellet shell end vibrating screen! Separate the pellet and shell materials through multiple vibrating screens!
Vibration Screen: (Three vibration screens, effectively separating the shot material from the shell, reducing steel shot loss, and lowering production costs)
Bottom vibrating screen:
Power: 1.5KW
Model: JOZ-120-2
Vibration force: 7.5KN
Quantity: 2 units
Vibration screen under the separator:
Power: 0.75KW
Model: JOZ-7.5-2
Vibration force: 7.5KN
Quantity: 2 units
End vibrating screen:
Power: 1.1KW
Model: JOZ-90-2
Vibration force: 9KN
Quantity: 2 units
Main components:
