Xi'an Yuanzheng Technology Yz810 Series Switch Status Display

1. Overview

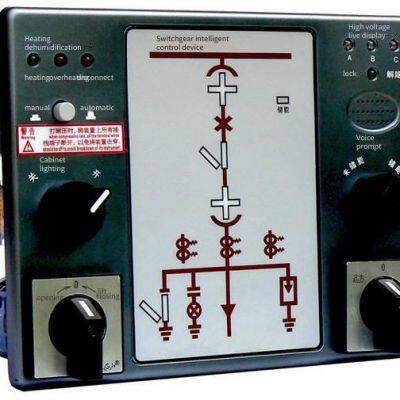

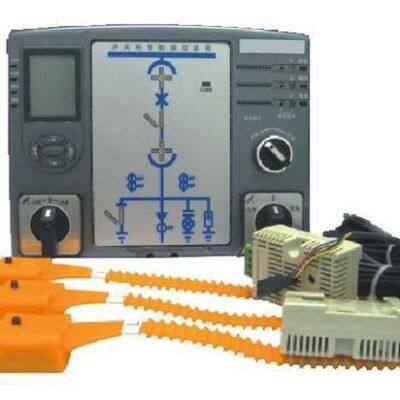

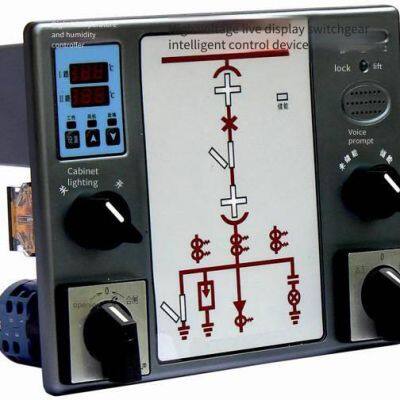

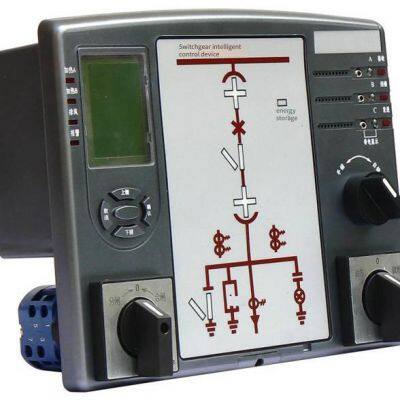

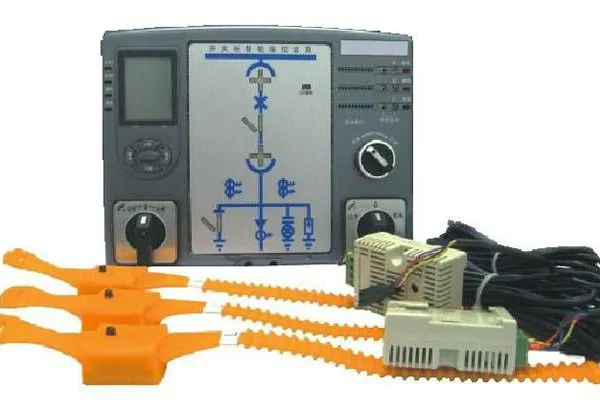

Xi'an Yuanzheng TechnologyYZ810 series switch status displays are a new type of multi-functional and analog dynamic indicating device. It integrates multiple functions such as primary circuit analog diagram, circuit breaker position, switch status, grounding switch position, spring energy storage status, high-voltage live indication, high-voltage live interlocking, and temperature and humidity control. The indication functions can be combined or separated, and it is installed on the panel. The YZ810A product can also achieve network communication through the RS-485 interface.

2. Main Functions

This product can achieve the switch status indication of primary circuit equipment and temperature and humidity control functions according to user requirements.

The product is equipped with the switchgear in an integrated layout, which simplifies the panel structure design of the switchgear in the past and beautifies the panel layout. It will replace various control and indicating devices such as the existing primary circuit analog indicator, electromagnetic switch status indicator, and grounding indicator.

Considering the installation space requirements of various switchgears with different structures such as fixed cabinets, handcart cabinets (including middle-mounted cabinets and bottom-mounted cabinets), and ring main units, three models A, C, and D are designed. The functions, installation dimensions, and terminal wiring methods of each model are different, which is convenient to select according to actual needs.

The specifications of the three models A, C, and D are as follows:

YZ810A:

Switch status display (circuit breaker, handcart or isolating switch,

grounding switch, spring energy storage)

Three-phase high-voltage live indication and interlocking control

Dehumidification and heating control (two-way condensation, two-way temperature) and

Heating circuit disconnection alarm

It has an RS485 interface and can achieve network communication

The wiring terminals are for side outlet

YZ810D:

 Switch status display (circuit breaker, handcart or isolating switch,

grounding switch, spring energy storage)

The wiring terminals are for side outlet

YZ810C:

Switch status display

(circuit breaker, handcart or isolating switch,

grounding switch, spring energy storage)

Three-phase high-voltage live indication and interlocking control

Dehumidification and heating control (one-way condensation, one-way temperature) and

Heating circuit disconnection alarm

The wiring terminals are for side outlet
