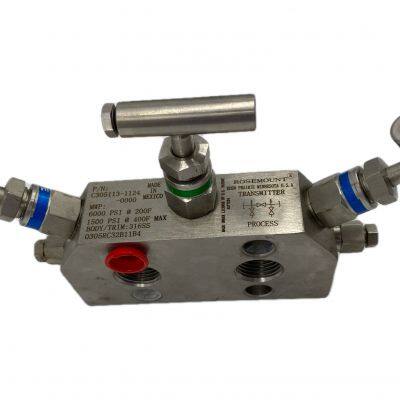

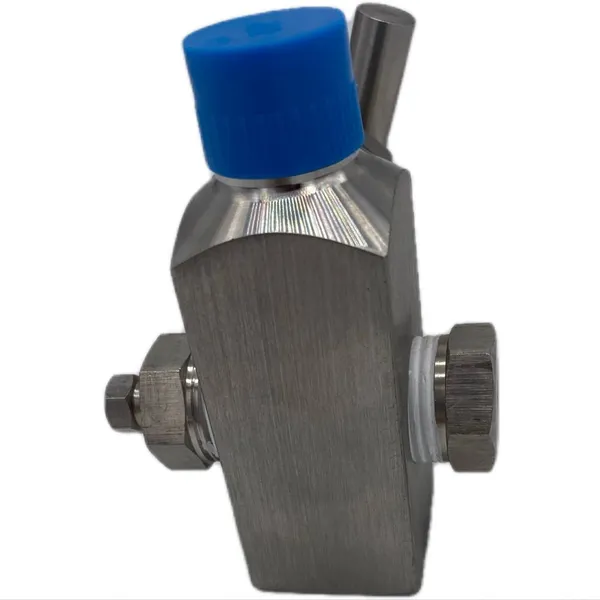

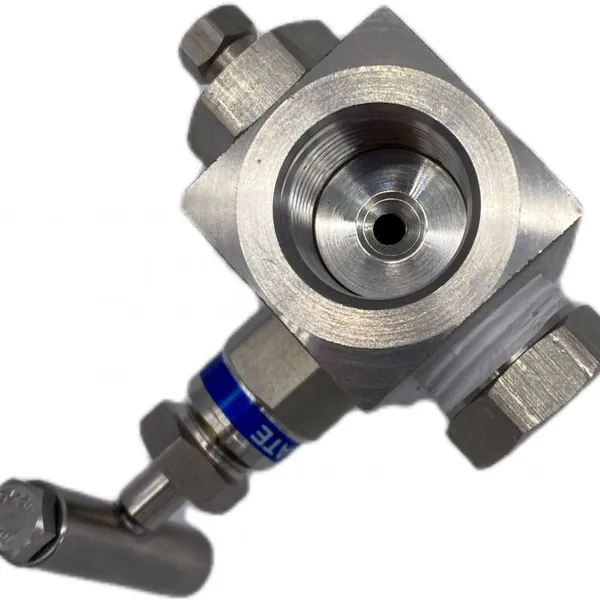

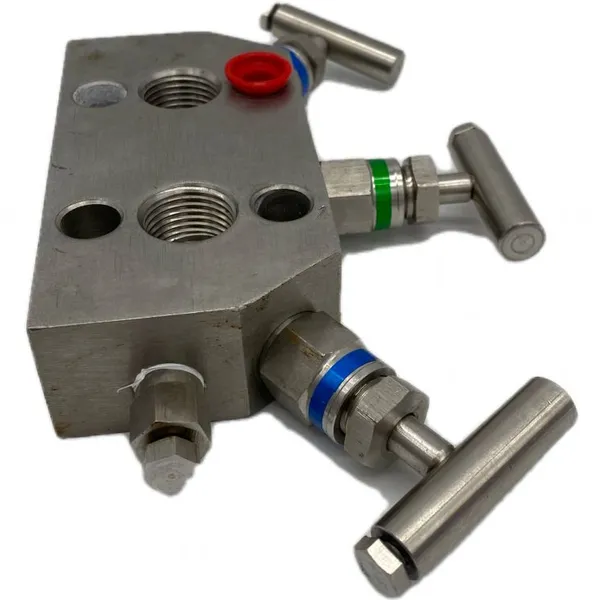

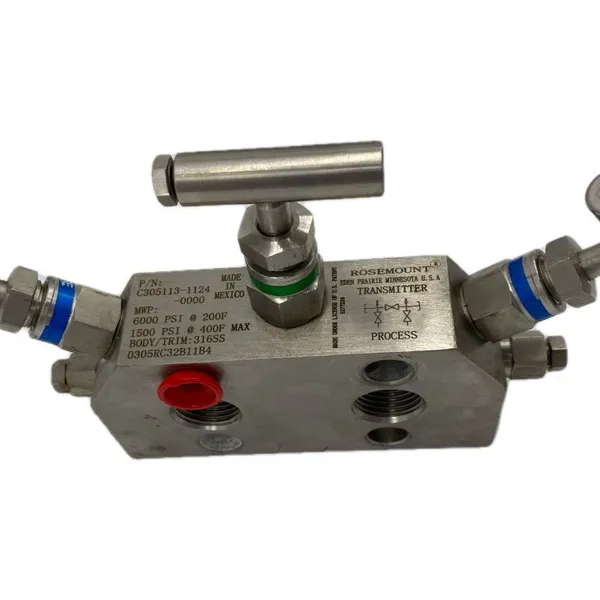

Stainless Steel 3-Way Manifold Valve for Rosemount Pressure Transmitter With NPT Thread Multi-valve Manifold Yokogawa
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Manifold type:
2-valve,3-valve,5-valve
Bolts standard:
2051/3051/3095 Traditional Flange
Media:
Water Gas Oil
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
OEM ODM Stainless Steel 316 304 Customized Thread Thermowell Temperature Instrument Sheath Flange ConnectionNegotiableMOQ: 1 Piece -
316Stainless Steel Tube Fittings Connection Adapters Double Ferrules Connector for Gas for Gases Fitting Union TeeUS$ 4MOQ: 1 Combo
-
OEM Bolted Chemical Seal With Diaphragm for Pressure Measurements Pressure Gauge Pressure TransmitterNegotiableMOQ: 1 Combo
-
Customized 1/2NPT(M)-1/2NPT(F) High Temperature Resistance Transmitter Valve Stainless Steel Pressure Gauge Two-Valve Manifold 316SSUS$ 4MOQ: 1 Combo
-
Kyue Stainless Steel Union Pressure Transmitter With 4-20mA Output for Etroleum Industry Hammer UnionNegotiableMOQ: 1 Piece
Manifold type
2-valve,3-valve,5-valve
Bolts standard
2051/3051/3095 Traditional Flange
Media
Water Gas Oil
Condition
Original New
Transport Package
carton
Trademark
Customizable
Origin
Tianjin
1.Definition & Function
A transmitter manifold valve is an integrated multi-valve module specifically designed for use with pressure, differential pressure (DP), or level transmitters. It is mounted directly onto the transmitter's process connections, serving as the critical interface component between the transmitter and the process piping. Its core function is to provide a safe and efficient operational procedure for isolating the transmitter, performing zero calibration, conducting online maintenance, and venting/draining the impulse lines without interrupting the process flow.
2.Types & Configuration
| Product name | Typical Valve Configuration & Diagram | Primary Application |
|---|---|---|
| 3-Valve Manifold | Typically consists of two isolation valves (high-pressure side and low-pressure side) and one equalizing/balance valve (connecting the two chambers). | The standard configuration for differential pressure (DP) transmitters. Used for measuring flow, level (in pressurized vessels), filter pressure drop, etc. |
| 5-Valve Manifold | Based on the three-valve design, it adds two vent/drain valves (one at the end of each impulse line, high-pressure and low-pressure sides). | Used for DP measurement applications requiring high cleanliness or where media is prone to condensation, such as steam flow or viscous liquid level measurement. |
| 2-Valve Manifold | Comprises two isolation valves only, with no equalizing valve. | Used with pressure or absolute pressure transmitters. Primarily for single-pressure measurements. |
3.Contact us for selection
