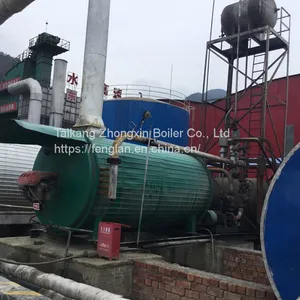

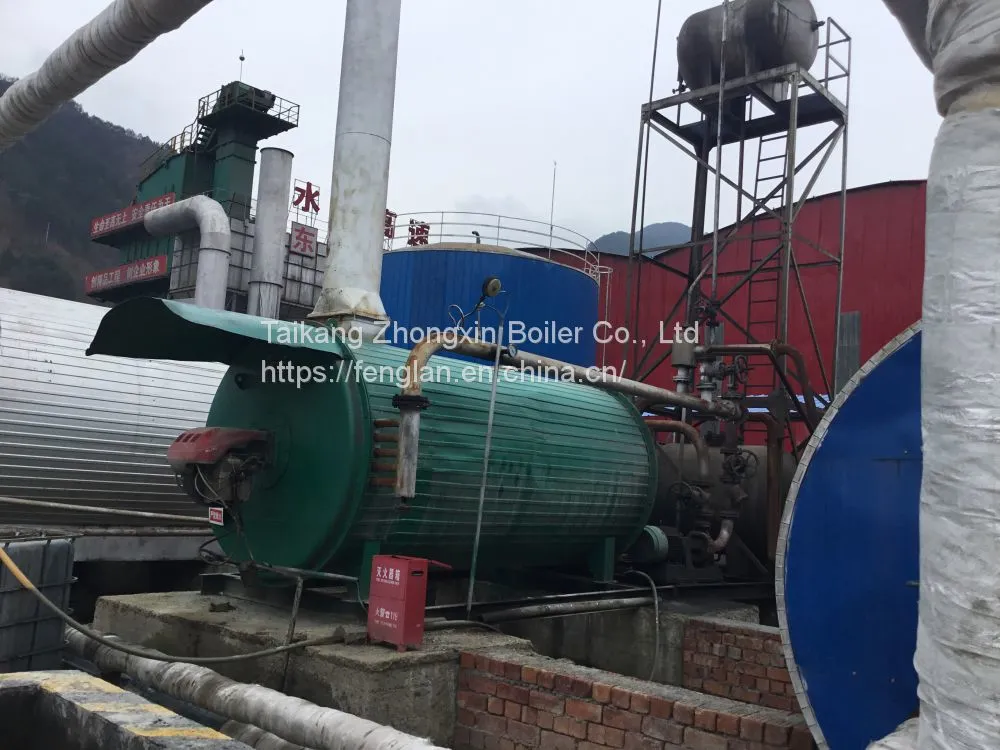

Help CenterSkid-mounted Gas-fired Heat Transfer Oil Furnace, 3000KW Organic Heat Carrier Furnace
Related Products
-
2 Tons of Biomass Coal-fired Steam Boiler Burning FirewoodUS$ 19000 - 20000MOQ: 1 Piece -
800000 Kcal Thermal Oil Furnace for Asphalt Mixing PlantUS$ 15000 - 16000MOQ: 1 Piece
-
WNS3-1.6-YQ Horizontal Oil Fired Steam Boiler 3 Ton Steam BoilerUS$ 30000 - 31000MOQ: 1 Piece
-
50000m ³ 1100 ℃ Flue Gas Waste Heat Steam Boiler 6 Ton Waste Heat BoilerUS$ 47000 - 50000MOQ: 2 Pieces
-
1 Ton Biomass Particle Steam Generator for Wood Steam Curing Carbonization Impregnation Tank (encryption Tank)US$ 20000 - 21000MOQ: 1 Piece
-
Performance description of the 3 million BTU gas-fired organic heat carrier boiler:1. Boiler model: YY(Q)W-3500-YQ
2. Rated thermal power: 3.5MW/h
3. Power: 3500KW
4. Design calculation pressure: 1.1Mpa
5. Total calorific value: 3 million kcal
6. Rated oil outlet temperature: 320℃
7. Rated return water temperature: 290℃
8. Hydrostatic test pressure: 1.2Mpa
9. Design thermal efficiency: 93.39%
10. Exhaust gas temperature: 120.28℃
11. Fuel consumption: 436.88Nm³/h
12. Natural gas lower heating value: 35.6MJ/Nm³
13. Medium heat transfer oil model: L-QD340
14. Circulating oil volume: 187.51m³/H
15. Boiler body oil capacity: 3.22m³
16. Boiler inlet and outlet oil pipe diameter: DN200
17. Boiler oil drain port: DN25
18. Boiler body auxiliary exhaust port: DN20
19. Boiler explosion-proof door diameter: Φ426
20. Fire extinguishing hole: DN20
21. Economizer inlet and outlet: DN65
22. Oil-gas separator: DN200
23. Power supply: 380V 50HZ
24. Installed capacity: 72KW
25. Circulating oil pump: 55KW, lift 70m, flow rate 200m³/H
26. Oil injection pump: 1.5KW, flow rate 3.3m³/H
27. Applicable fuels: natural gas, liquefied gas, biogas, coal gas, diesel fuel, etc.
28. Overall dimensions: 6000×2800×3500 (length × width × height mm)

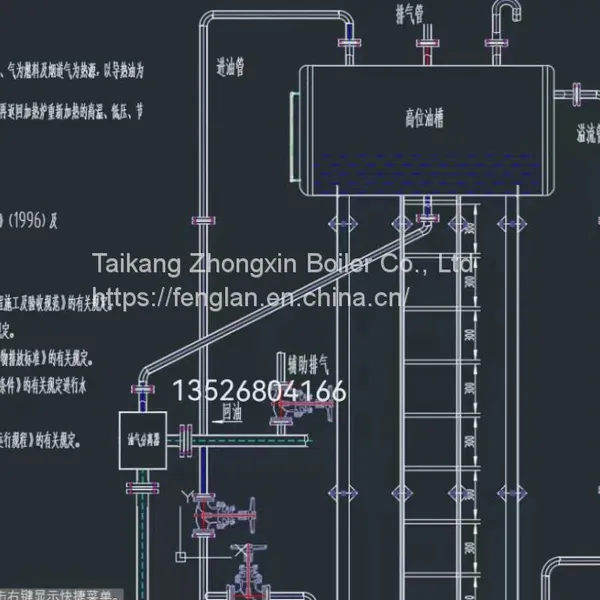

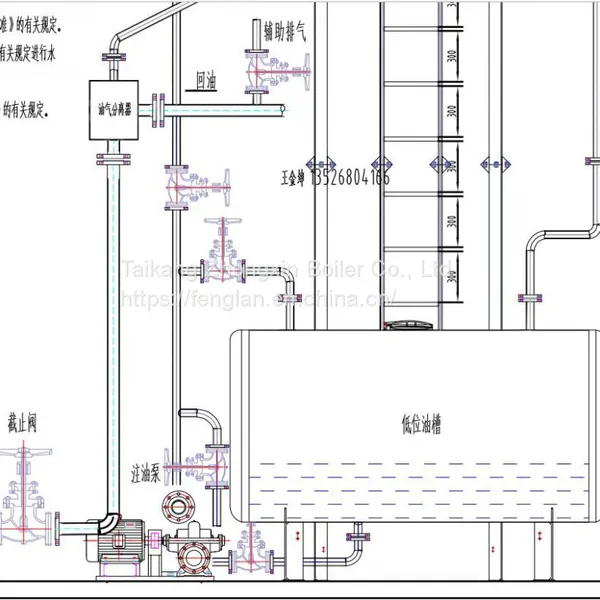

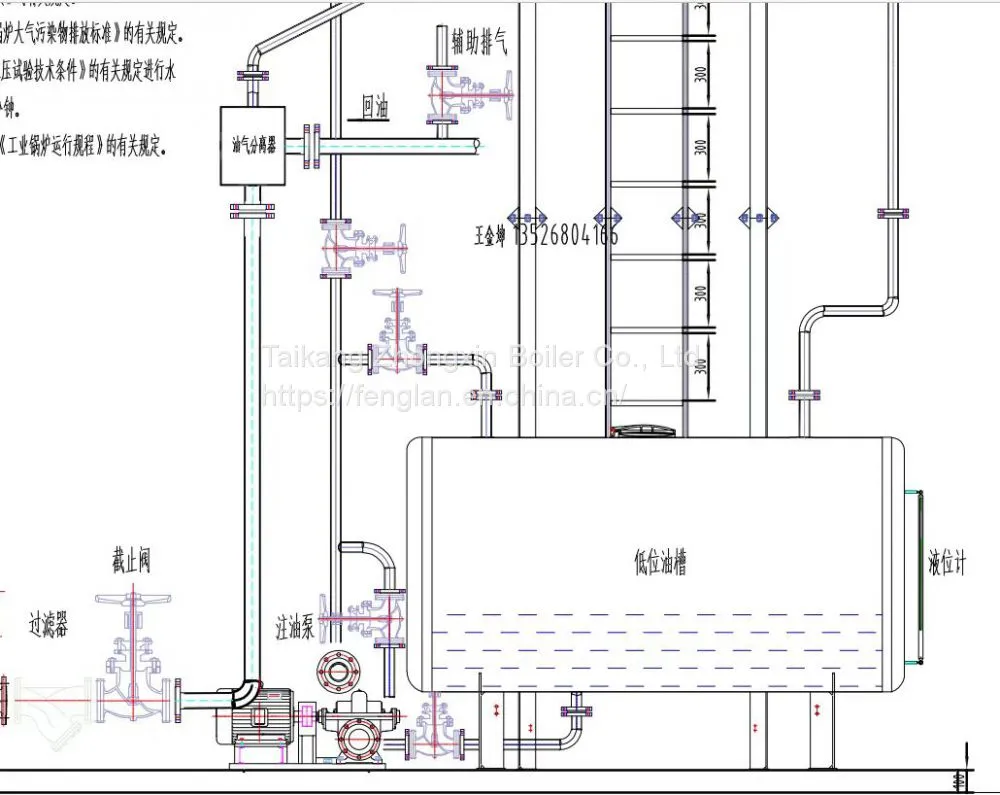

29. Transportation weight: 20T (specific detailed parameters refer to the drawings)
