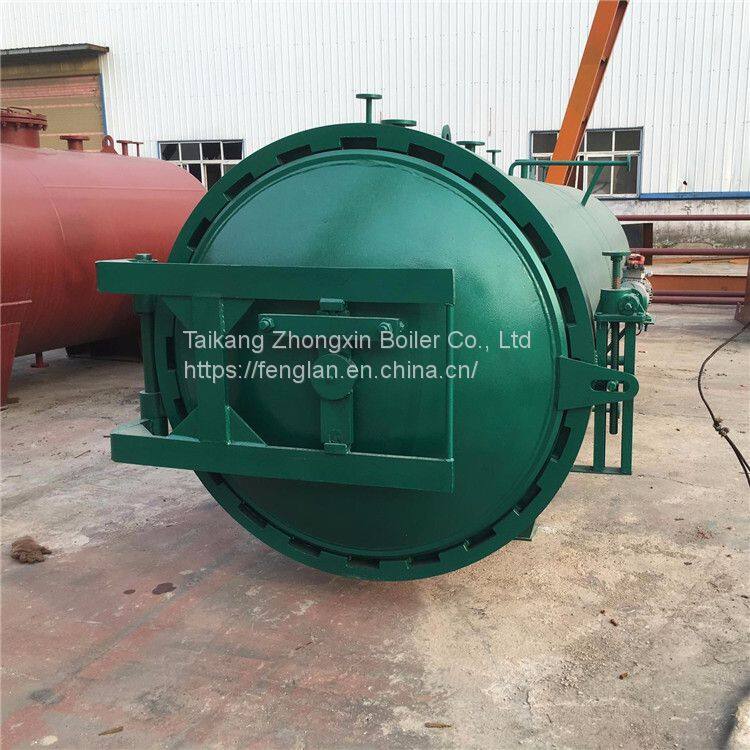

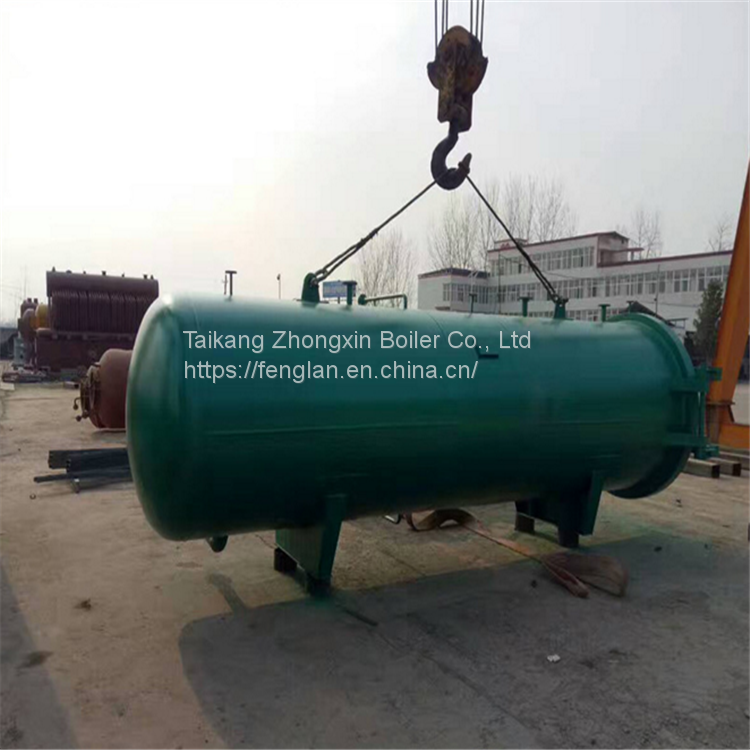

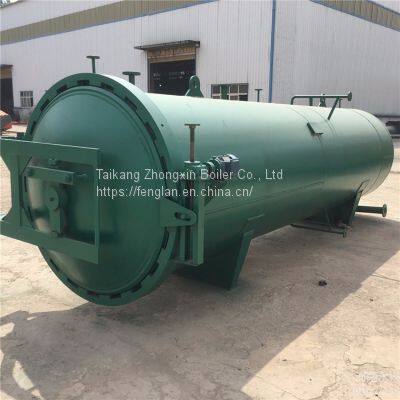

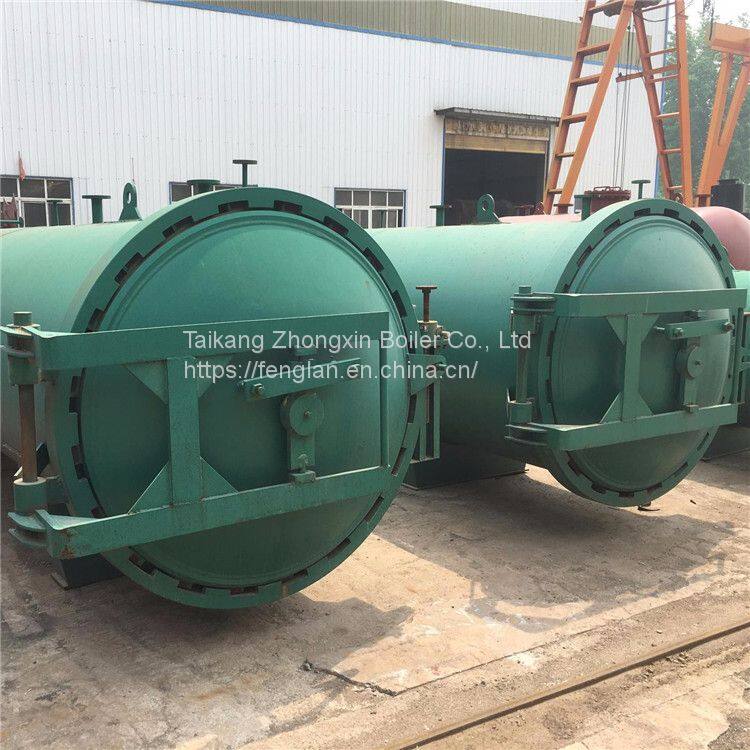

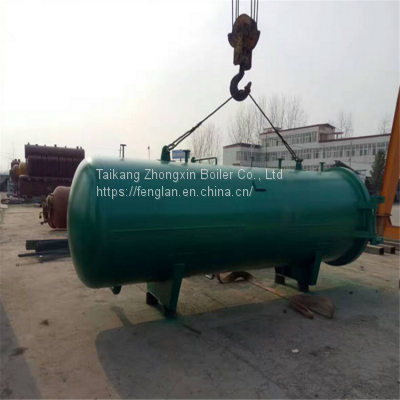

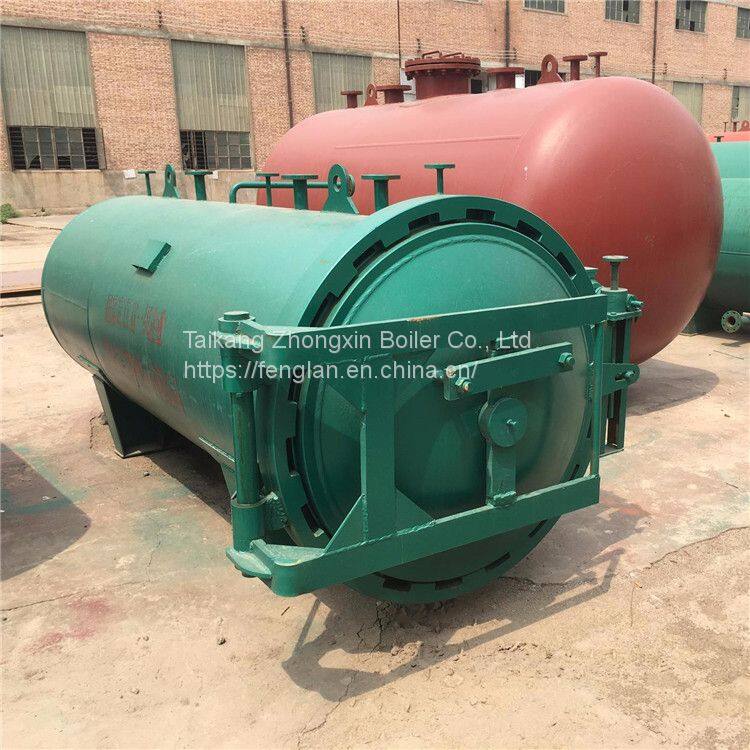

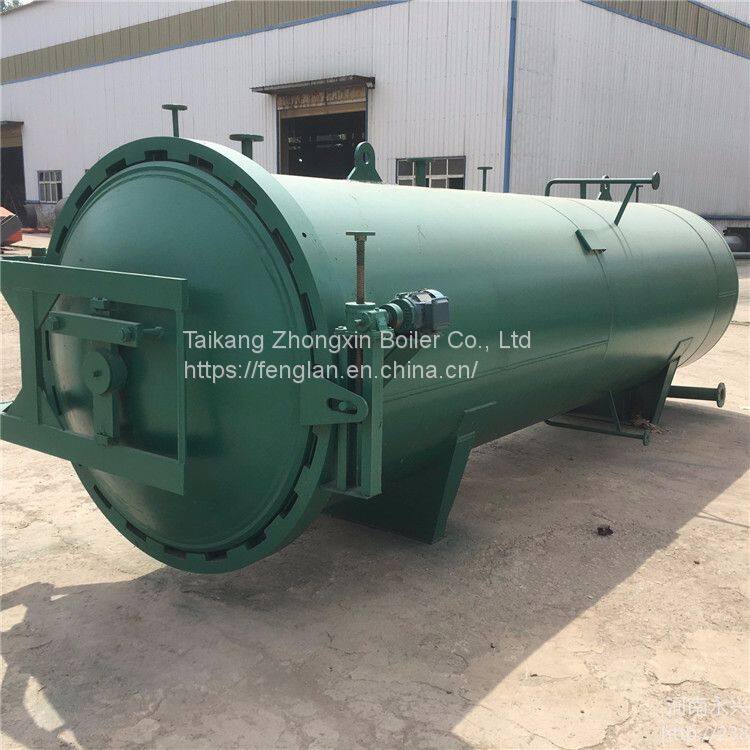

Performance description of wood impregnation tank (encryption tank): 1 ton biomass particle steam generator for wood steaming carbonization impregnation tank (encryption tank)
1. Model: DN1200 × three thousand
2. Design code: GB150-1998 "Steel Pressure Vessels"
TSG R004-2009 "Safety Technical Supervision Regulations for Fixed Pressure Vessels"
HG/T20584-2011 Technical Requirements for Manufacturing Steel Chemical Containers
3. Medium: water-based preservative
4. Pressure vessel category: I
5. Medium characteristics: non-toxic
6. Welding rod model: according to NB/T47015-2011 regulations
7. Weld structure: Unless otherwise specified, a fully welded structure is used
8. Welding procedure: according to NB/T47015-2011 regulations
9. Working temperature: 20 ℃
10. Rated working pressure: 1.5Mpa wood steam curing carbonization impregnation tank (encryption tank) 1 ton biomass particle steam generator
11. Design pressure 1.65Mpa
12. Design temperature: 80 ℃
13. Superheated air coefficient: 1.15
14. Corrosion allowance: 20mm
15. Design life of pressure vessels: 8-10 years
16. Transportation weight: 4T
17. Vacuum pump diameter: DN25
18. Pressure pump diameter: DN40
19. Washing and drainage fluid diameter: DN80
20. Inflation port: DN15
21. Exhaust port: DN15
22. Safety valve diameter: DN40
23. Liquid level gauge caliber: DN25
24. Pressure gauge interface: DN15
25. Drum wall thickness: 12mm
26. Head wall thickness: 12mm
26. Booster pump (booster pump): 2.2KW
27. Vacuum pump: 1.1KW
28. Reagent pump: 2.2KW
