1. Basic Information
Device Name: Household Seat Backrest Combined Durability Testing Equipment
Device Model: ZYLH-2

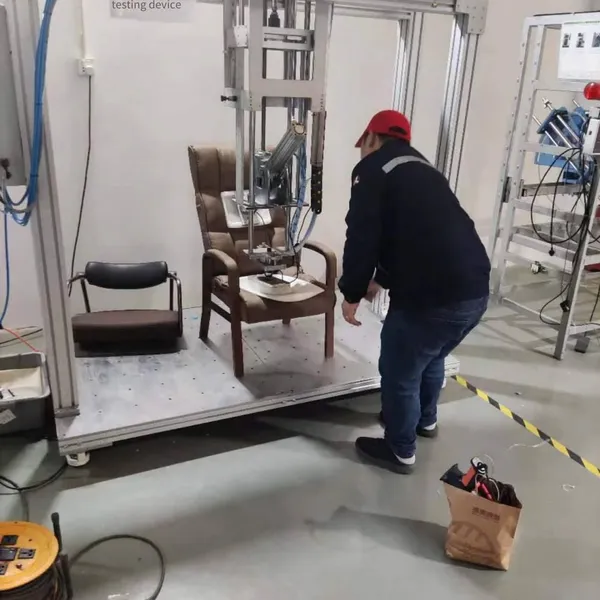

Scope of Use: This equipment is customized according to customer requirements, referring to the standards GBT 10357.3-2013, ANSI/BIFMA 5.1-2017, EN 12520. It is used to conduct durability tests (i.e., durability under repeated use and repeated loading conditions) on the finished household seats. It simulates the durability performance of the seat surface and backrest after multiple loadings during the normal daily use of furniture, and identifies the rationality of product design. This equipment uses a human-machine interface (HMI). The HMI is intuitive, easy to operate, and user-friendly. Users can communicate with the system and perform operations through the human-machine interaction interface.
2 . Performance Features
1) The test bench has an unattended function. It will automatically stop when there is a power outage during the test, an alarm occurs, or the set number of times is reached;
2) The number of test times, load-holding time, and loading force can be changed during the test process;
3) The number of test times, frequency, force value, load-holding time, etc. are displayed through the human-machine interface (touch screen);
4) A pressure reducing valve is used to adjust the loading force, and an exhaust throttle valve is used to adjust the test speed (change the test frequency);
5) During the test process, the operating pressure is monitored. When the test pressure value is greater than the set value, it will stop and give an alarm.
6) The equipment has a reasonable structure, a compact mechanism, a small volume, and an attractive appearance;
7) The equipment has low energy consumption and is safe and convenient to operate.
3 Composition of the Test Bench

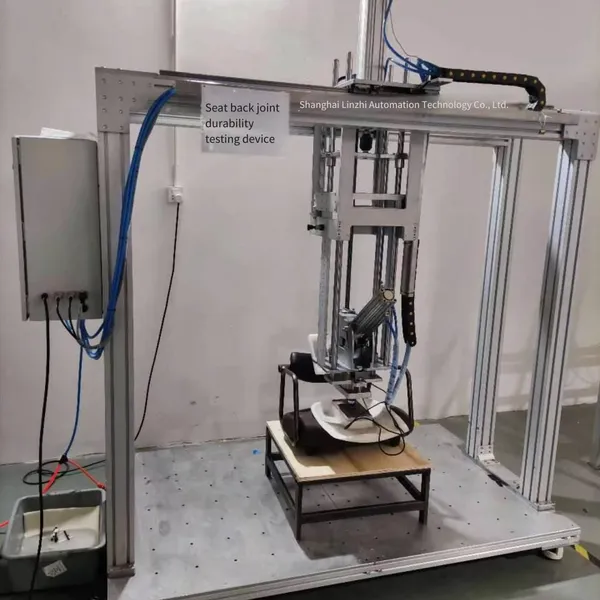

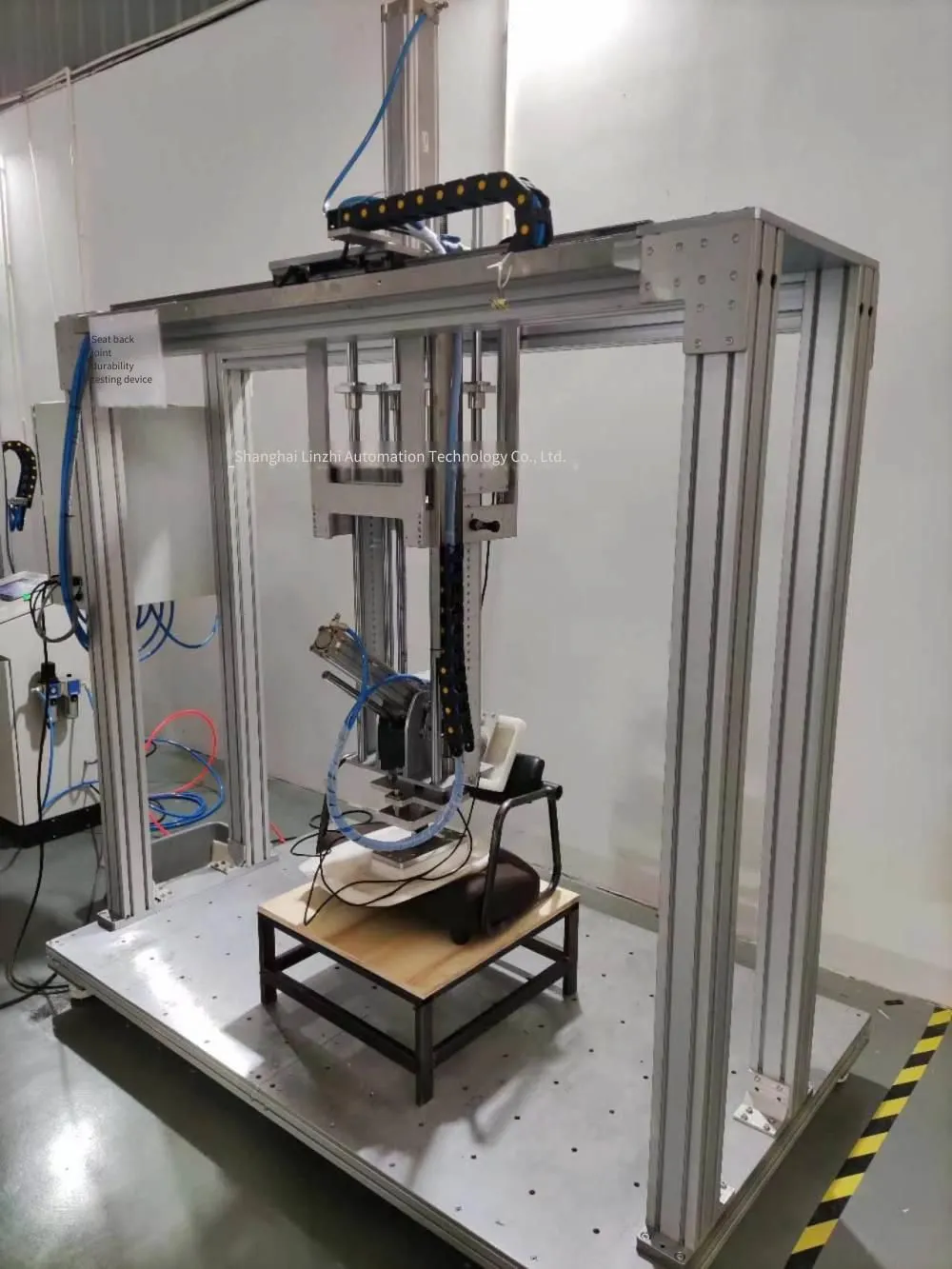

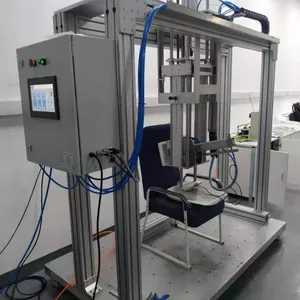

The test bench is mainly composed of a main frame, a test platform, a seat cushion force application mechanism, a backrest force application mechanism, a seat fixing fixture, a load sensor, an amplifier, a cylinder, a control cabinet (operating console), , Human - Machine Interface, Electrical Control System, etc.
