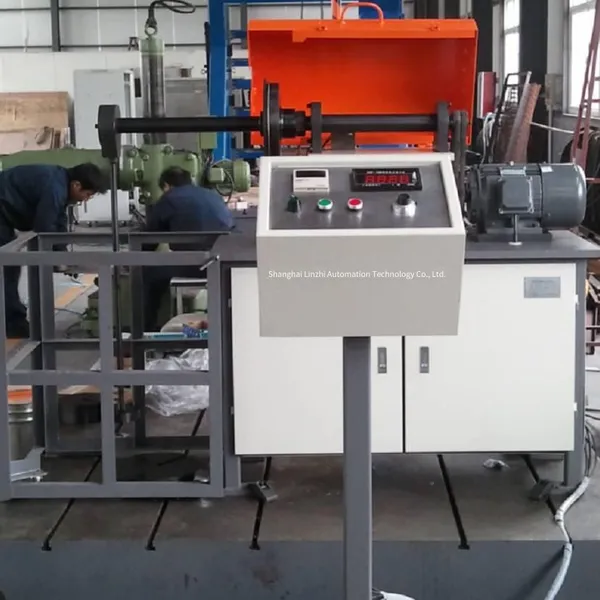

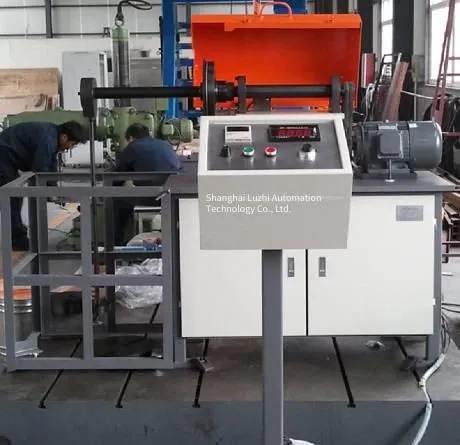

The flywheel rotary bending fatigue testing machine is a device used to test the bending characteristics of the flywheel disc coil assembly, and it can evaluate the rationality of the product equipment.
I. Working Principle
The working principle of the flywheel rotary bending fatigue testing machine is mainly to apply periodic loads to the flywheel disc assembly to simulate the rotational and bending stresses in actual use, so as to detect the behavior of the sample under these conditions. During the test, one end of the flywheel disc assembly is fixed, and an eccentric load is applied to the other end to make it produce rotational and bending movements.
II. Main Features
Customizability: The flywheel rotary bending fatigue testing machine is usually customized according to customer requirements to meet the testing needs of different products.
Stepless speed regulation: The rotation speed of the specimen is usually steplessly adjustable within a certain range, such as 800~3000r/min or higher, to adapt to different testing conditions.
High degree of automation: The control and data acquisition system can automatically control the experimental conditions and collect data, improving the experimental efficiency.
Safety protection: During the test, it has a safety protection net and a specimen breakage protection function to ensure the safety of the test process.
III. Technical Specifications
The technical specifications of the flywheel rotary bending fatigue testing machine usually include the specimen rotation speed, counter capacity, overall dimensions, weight, power supply, etc. For example, the specimen rotation speed may reach 1000~3000r/min or higher, the counter capacity can reach 90000000, and the overall dimensions and weight depend on the specific model and configuration. In addition, the power supply is usually three-phase 380V, and the power varies according to the equipment model.
IV. Application Fields
The flywheel rotary bending fatigue testing machine is widely used in the fields of chemical industry, transportation, aerospace, automotive, etc., to test the durability and performance of various flywheel disc assemblies, automotive parts, aircraft parts, etc. By simulating the rotational and bending stresses in actual use, the reliability and service life of the product can be evaluated.
