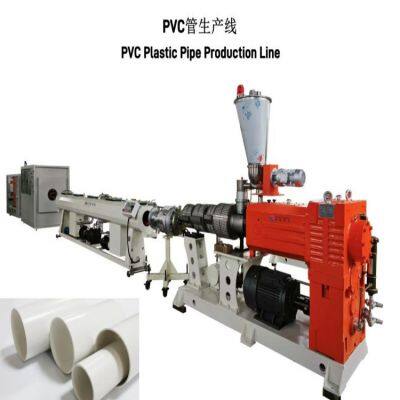

Our PVC pipe production line adopts advanced technology from Australia and Taiwan. We can customize various PVC pipe production lines according to the pipe standards of various countries in the world. Our pipe diameter range is: 12mm-1200mm, from large water supply pipes to small cables We can customize the tube. Our PVC pipe production lines are spread all over the world and have a large customer base. We will provide all customers with on-site installation, commissioning, training, etc.
Feature

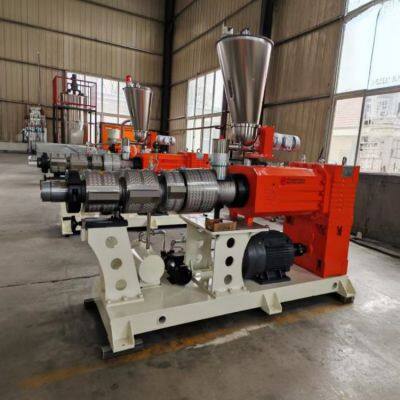

1) Main machine uses PVC high efficiency screw, and notch feeder with powerful water
Cover cooler, which has greatly improved transmitting capability and ensured
Extruding. DC running electric machine with high-quality speed adjuster
2) Applied for the basket-shaped composite electric head for processing polythene,
Which not only ensures the stability of high efficiency extruding, but also achieves
The minimum stress and highest pipe quality brought by low melting temperature

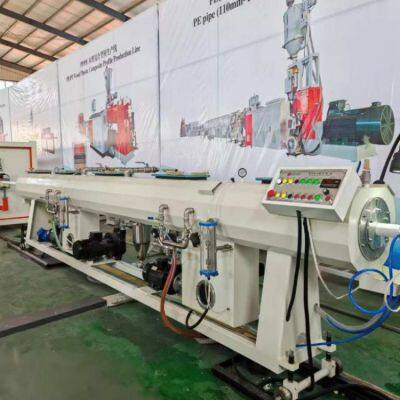

3) Adopting high efficiency double-cavity vacuum calibrating technology and spray-paint
Cooler gullet, which improve the finished product passing rate, and meet
The requirements of high speed manufacturing. Vacuum calibrating platform and cooler
Gullet are all made of stainless steel
4) Adopting multi-track traction, through the central motor to run all the tracks
To reach same height, and ensure roundness of pipes
5) Adopting fully automatic control system with high precision, reliable operation,
Easy and convenient handling
6) Suitable pipe diameter: 16 - 630mm
Product Parameters
| Model | Diameter | Max speed | Power | Line length |
| PVC50 | 16-50 | 10 | 85 | 20 |
| PVC63 | 16-63 | 10 | 60 | 20 |
| PVC110 | 50-110 | 10 | 70 | 24 |
| PVC160 | 63-160 | 5 | 90 | 24 |
| PVC250 | 110-250 | 3.5 | 120 | 28 |
| PVC315 | 160-315 | 3 | 160 | 28 |
| PVC450 | 240-450 | 1.5 | 200 | 36 |
| PVC630 | 315-630 | 0.9 | 230 | 36 |

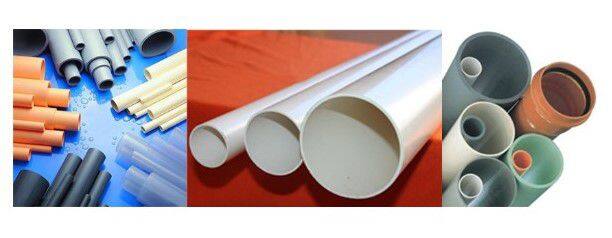

Application
1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:T/T,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE, SGS, ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.
