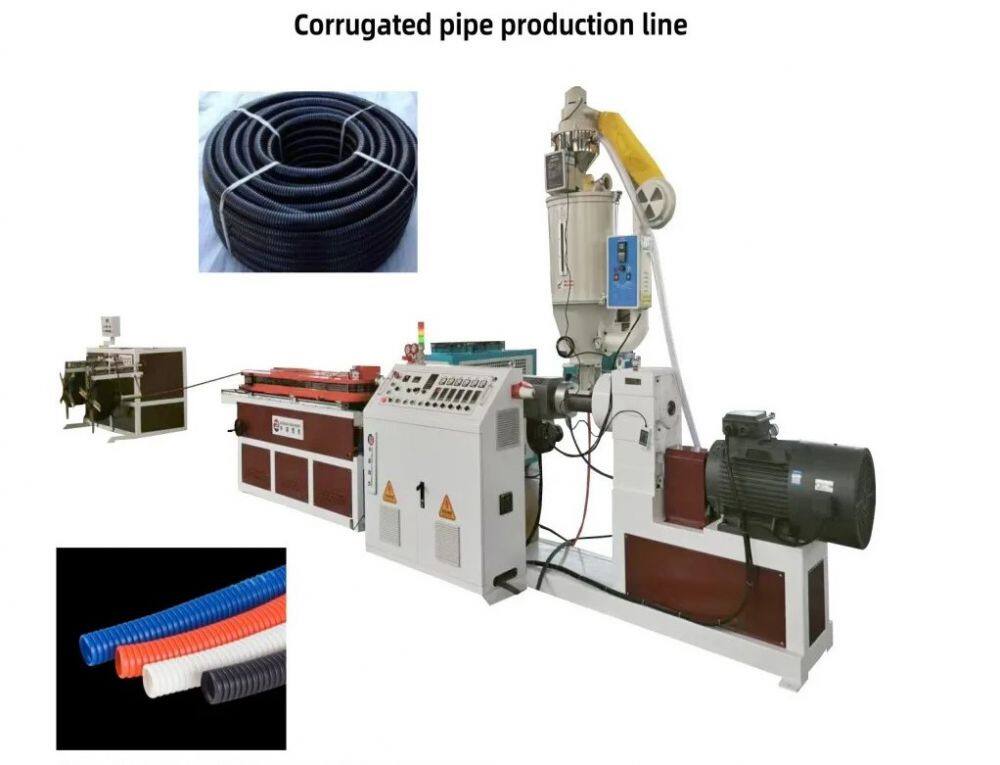

Single Wall PP PE PVC Corrugated Pipe Line:
1.Production Description:

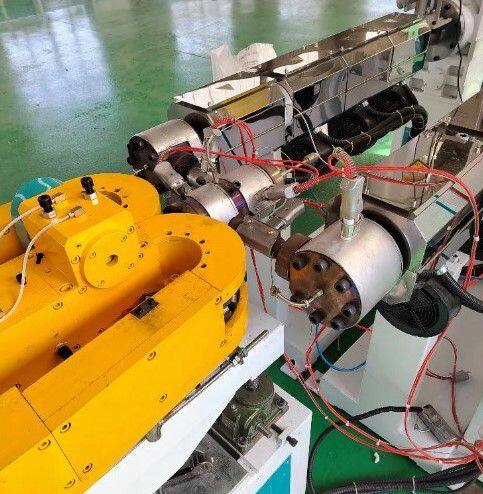

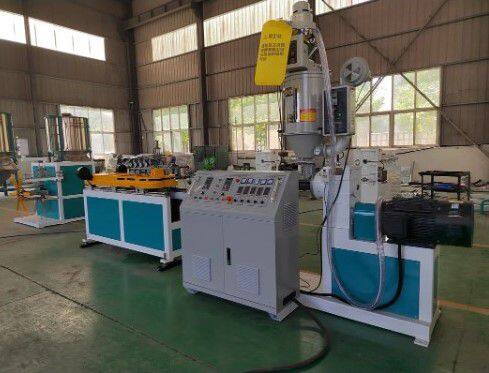

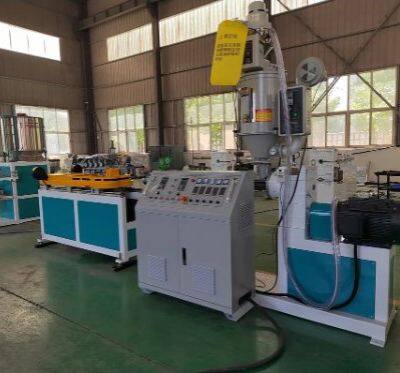

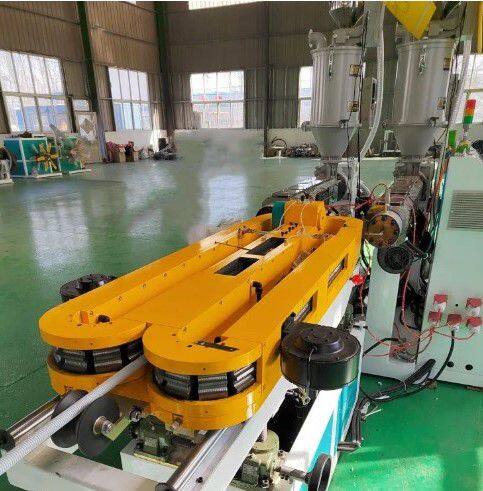

It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Material-1: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Material-2: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is
ultraviolet resistant.
PE/PP/PVC Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PVC.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
2. Process flow:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder
This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be ued ass stuffing tube for electrical appliance, stuffing tube for automobile, engineering works, lamps and lanterns, automatic instruments and meters, etc. which has a great demand in present-day market.
Performance characteristics:
1. According to different processing materials, choose a different type of extruder.
2. The special design of single wall corrugated pipe head, wide range of application, simple shape, uniform wall.

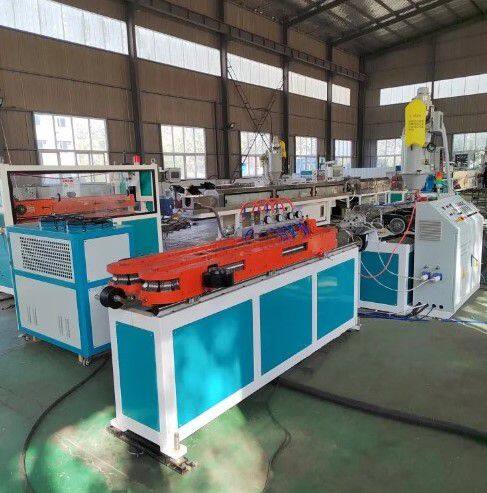

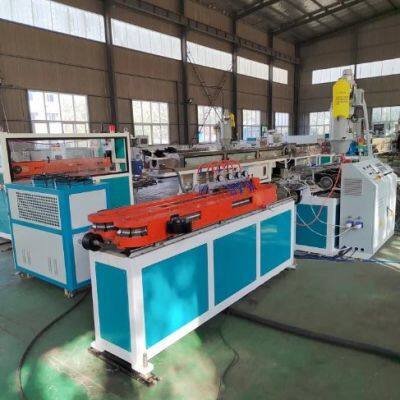

3. Corrugated pipe forming machine optimization design, high speed, corrugated pipe forming stable.
4. Designed for corrugated pipe cutting machine, high cutting precision, no damage wave.
The Final Product Application:
Final product widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Technical parameters
| Pipe diameter range(mm) | 4.5-9 | 9-32 | 32-50 |
| Main machine model | SJ-30 | SJ-45 | SJ-65 |
| Main machine l/d | 30:1 | 28:1 | 30:1 |
| Production capacity kg/h | 10 | 40 | 80 |
| Main motor capacity kw | 4 | 11 | 18.5 |
| Moiding machine capacity kw | 1.1 | 1.5 | 1.5 |
| Pair of modules | 42 | 38 | 38 |
| Cooling mode | Water cooling and fan cooling | Water cooling and fan cooling | Water cooling and fan cooling |
| Production (m/min) | 6-10 | 8-12 | 8-15 |
| Metering mode | inductiing mode | inductiing mode | inductiing mode |
| Coiling machine mode | Motor-drivenManually-operated | Motor-drivenManually-operated | Motor-drivenManually-operated |
FAQ
Q: Are you a manufactuer or trading company?
A: We're professional manufacturer.
Q: Where is your company?
A: Our company is located in Qingdao City and it's only half an hour's drive from the airport.
Q: What's your payment term?
A: L/C, TT is all good to do.
Q: When can I get the price?
A: Once we get the specific inquiry, we can send you the price with the configuration within 3 days.
Q: If we have some other product requirements that your page don't include, can you help to supply?
A: Yes, we can customize products and services to meet your specific needs.
Q: How long is the warranty period?
A: 12 months.
