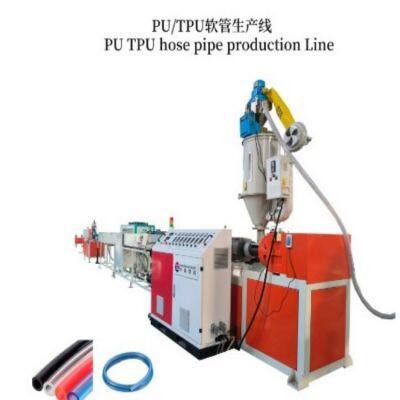

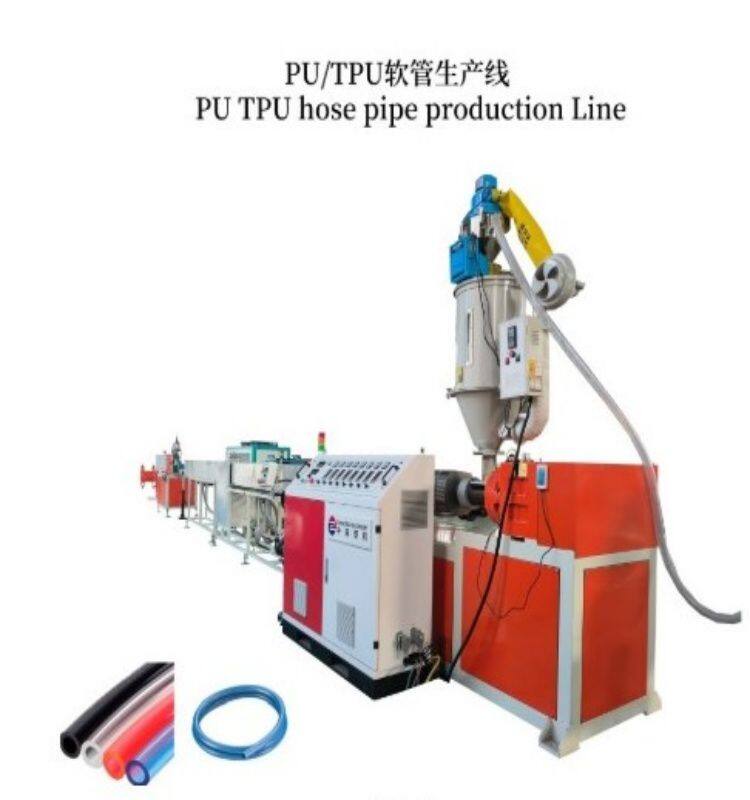

PU Air Tube/Hose/Pipe Production Extrusion Machine
This type of production line for processing 3D consumables, automotive tubes, air tubes and other products. By matching different structure of screw barrel can meet the PE, PP, PA, FPVC, PU, PLA, ABS and other raw materials for the high-speed extrusion of pipe or bar. They are characterised by high production speed, high precision, easy operation and easy maintenance. Minimising production waste, reducing running costs and taking up less space, this is the multifunctional machine of choice for customers.

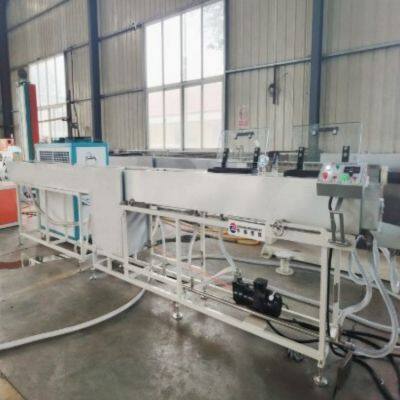

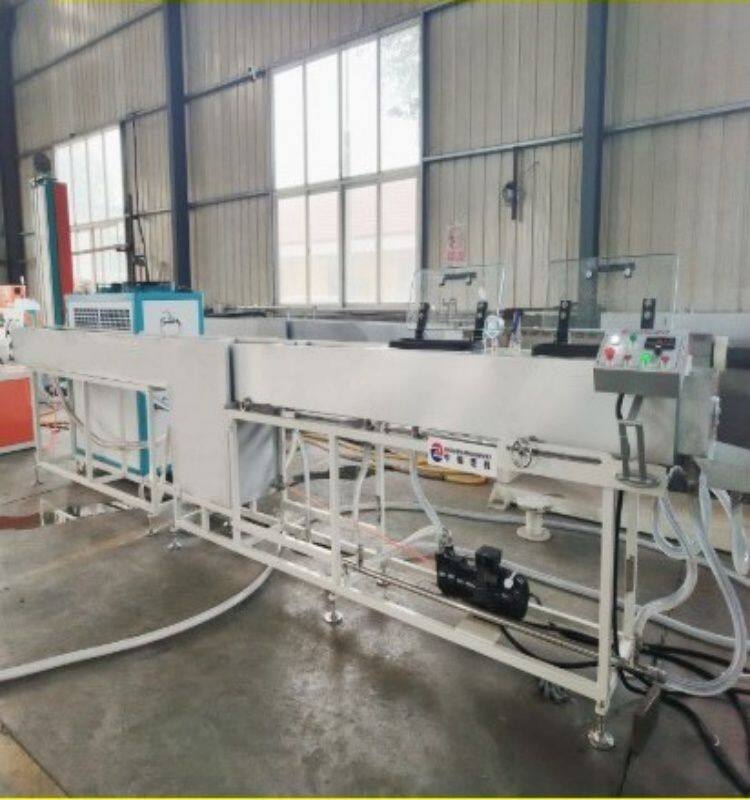

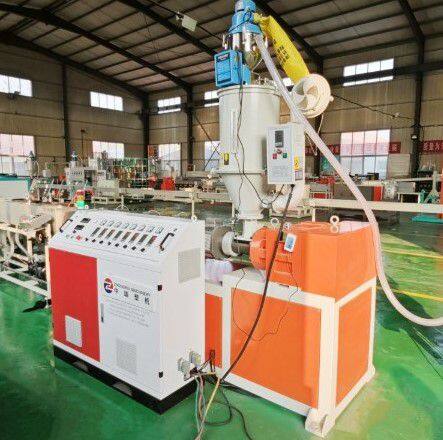

The production line use high-speed single-screw extruder, equipped with low noise fan and high speed and hard tooth gear box, thus ensuring the high-speed and high-performance extrusion. Machining head made of high quality materials, using advanced machining center, thus ensuring the processing accuracy and the extrusion uniformity of raw material. The vacuum sizing water tank is made of high hardness and high quality stainless steel plate, and equipped with advanced water circulation and high pressure cooling system, vacuum degree adjustment device and accurate water temperature and level control system. The cutting machine adopt automatic chipless cutting to ensure the smooth cut surface. In short, the whole production line is a intelligent control system.
| Screw diameter(mm) | L/D | Screw speed (rpm) | Production(kg/h) | Powder(KW) | |
| SJ30 | 30 | 25-33 | 17-120 | 4-10 | 2.2-3 |
| SJ35 | 35 | 25-33 | 15-120 | 5-15 | 3-5.5 |
| SJ40 | 40 | 25-33 | 15-110 | 7-25 | 5.5-7.5 |
| SJ45 | 45 | 25-33 | 15-110 | 12-35 | 7.5-11 |
| SJ50 | 50 | 25-33 | 12-100 | 20-50 | 15-22 |
| SJ65 | 65 | 25-33 | 8-90 | 40-130 | 22-45 |

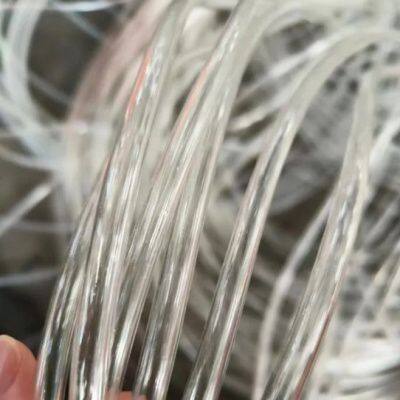

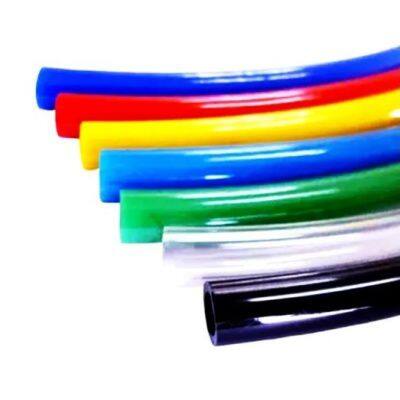

Product:
Packaging and shipping:
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5. How does your factory do regarding quality control?
A5. We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
