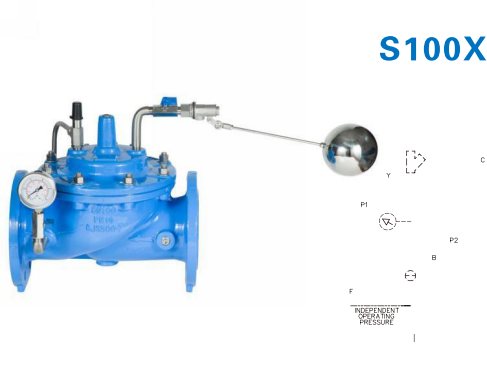

Energy Saving Automatic Control Valve for Water Supply Networks, Various Connection Types

Shanghai Sote Valve Co., Ltd., a specialized manufacturer based in Shanghai, China, presents its innovative Energy Saving Automatic Control Valve designed for modern water supply networks. Our valve integrates advanced hydraulic technology to optimize water distribution systems while reducing energy consumption and operational costs. Engineered for reliability in demanding municipal applications, this solution offers precise pressure management without requiring external power sources.

The versatile design accommodates various connection types including flanged, threaded, and grooved configurations, ensuring compatibility with existing pipeline infrastructures. Constructed with durable ductile iron bodies and corrosion-resistant stainless steel internals, Sote valves deliver exceptional longevity even in challenging water quality conditions. The self-regulating mechanism maintains consistent pressure levels across fluctuating demand cycles, preventing pipe damage and water loss.

Key Technical Specifications:

Operational Benefits:

• Energy Efficiency: Reduces pumping energy requirements by maintaining optimal system pressure
• Leakage Reduction: Minimizes water loss through precise pressure control preventing pipe bursts
• Zero Electricity Operation: Hydraulic system eliminates electrical components and associated costs
• Low Maintenance: Simple diaphragm design with accessible service points
• Water Hammer Protection: Gradual closing mechanism prevents pressure surges

The valve's modular pilot system allows for multiple control functions including pressure reduction, sustaining, and relief modes. Field conversion kits enable functional changes without complete valve replacement. Precision-machined stainless steel trim ensures smooth operation and tight shut-off, while the streamlined flow path minimizes head loss across the valve.

Installation Advantages:

• Bi-directional flow capability (specific models)
• Horizontal or vertical mounting orientation
• Integrated strainer protects pilot system from debris
• Visual position indicator for immediate status confirmation

Shanghai Sote Valve implements rigorous quality control throughout the manufacturing process, with each valve undergoing comprehensive hydrostatic testing and functional verification. Our Shanghai-based production facility maintains ISO-compliant processes, though specific certifications are available upon request. With over 15 years of industry experience, we've supplied valves to major municipal water projects across China.

Frequently Asked Questions:

Q1: What maintenance intervals are recommended?

A: Annual inspection of the pilot system and diaphragm is recommended. The main valve body typically requires minimal maintenance.

Q2: Can this valve handle untreated water?

A: Yes, the standard configuration handles suspended solids up to 500 mg/L. Optional reinforced diaphragms are available for challenging media.

Q3: How does it achieve energy savings?

A: By eliminating over-pressurization during low-demand periods, pumping energy consumption is reduced by 15-30% in typical installations.

Q4: Are custom pressure settings available?

A: Factory pre-setting is available upon request. Field adjustment can be performed using standard tools.

Q5: What is the lead time for DN300 valves?

A: Standard sizes typically ship within 4-6 weeks. Contact sales for expedited options.

Q6: Does installation require straight pipe runs?

A: We recommend 5D upstream and 2D downstream straight pipe for optimal performance, though field performance may vary.

Shanghai Sote Valve provides comprehensive technical support from system design through commissioning. Our engineering team offers customized sizing assistance and operational training to ensure optimal performance in your specific application. Contact us today for detailed product specifications or to discuss your project requirements with our water network specialists.

Experience the reliability and efficiency of Shanghai-manufactured control valves. Request a personalized quotation or schedule an online product demonstration to discover how our solutions can enhance your water supply infrastructure.
