Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit

Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit photo-1
Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit photo-2
Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit photo-3
Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit photo-4
Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit photo-5
US$ 1 - 48000 MOQ: 1 Set
Key Specifications
Get Latest Price
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Automatic Grade Automatic

Conveyor Belt Metal Detector for Chocolate, Potato Chips, Bread, Buscuit

Condition
New
Customized
Customized
Alarm Form
Customizable
Window Height
100mm
Window Width
250mm
Testing Sensitivity Iron
≥0.6mm
Testing Sensitivity Stainless Steel
≥1.2mm
Power Supply
AC220V
Conveying Speed
10-30m/Min(Customizable)
Transport Package
Standard Wooden Case
Specification
SUS304
Trademark
MAYER
Origin
China
HS Code
8543709100
Production Capacity
3000set/Year

Product Description


Product model
MY-JTM-2510
MY-JTM-4010
MY-JTM-4015
MY-JTM-5020
MY-JTM-5025
MY-JTM-8010
MY-JTM-9010
MY-JTM-10008
MY-JTM-12005
Window height
100mm
100mm
150mm
200mm
250mm
100mm
100mm
80mm
50mm
Window width
250mm
400mm
400mm
500mm
500mm
800mm
900mm
1000mm
1200mm
Testing sensitivity iron
≥0.6mm
≥0.6mm
≥0.8mm
≥1.0mm
≥1.2mm
≥0.8mm
≥0.8mm
≥0.8mm
≥0.8mm
Testing sensitivity stainless steel
≥1.2mm
≥1.2mm
≥1.5mm
≥1.8mm
≥2.0mm
≥1.5mm
≥1.5mm
≥1.5mm
≥1.5mm
Conveying speed
10-30m/min(customizable)
Type of alarm
Automatic shutdown or automatic removal(optional)
Power supply
AC220V

1.Digital Signal Processing:
Utilizes multiple digital technologies including DSP and DDS to process detection signals, offering more comprehensive functionality, enhanced stability, and higher reliability.

2.Full Metal Detection:
Capable of detecting all metallic contaminants such as ferrous, stainless steel, copper, aluminum, lead, as well as certain conductive non-metallic foreign objects.
3,Effective Product Effect Suppression:
Employs 0~360° free phase adjustment technology to effectively suppress "Product Effect", improving product detection accuracy.

4.Omnidirectional Detection:
Utilizes a closed coil system to completely eliminate detection blind spots, enabling metal detection at any position within the aperture.

5.User-Friendly Operation:
Features an intelligent LCD display system, allowing quick and easy setup of detection parameters via a keypad interface.

6.Auto-Learning:
Automatically analyzes the signal characteristics of the product to set optimal detection parameters, simplifying the parameter setup process.

7.High-Capacity Storage:
Stores detection parameters for up to 20 different products, facilitating quick product changeovers.

sensitivity
other
type
metal detector
operating frequency
Multi-frequency, 50HZ
user
Adults
Other attributes
material
304 stainless steel
Search Coil Diameter
8cm, 12cm
place of origin
Guangdong, China
warranty
1years
customized support
OEM, ODM, OBM
model number
CQ-918
color
Gray
brand name
TS
Model Number
TS-918
Place of Origin
Guangdong, China
Sensitivity(Fe)
FE≥0.8mm
Materail
304 stainless steel
Application
Ferrous and non-ferrous metal detector
Certification
CE
Packaging
wooden case
Power
AC110V/220V 50-60HZ
Sensitivity(Sus)
Sus≥1.2mm
Warranty
12 Months

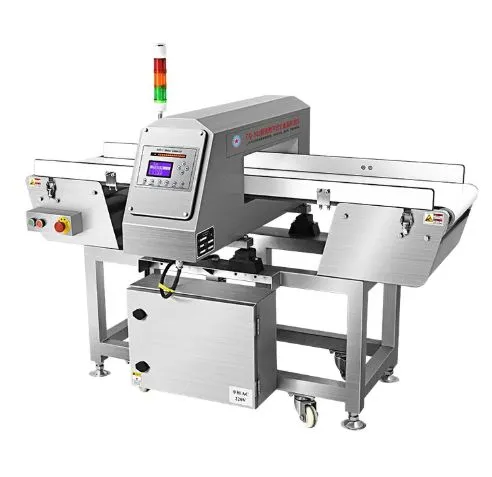

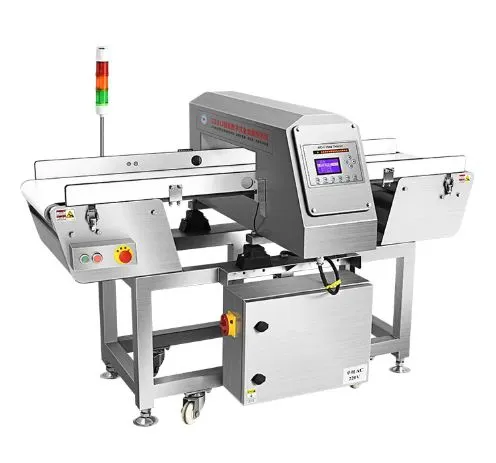

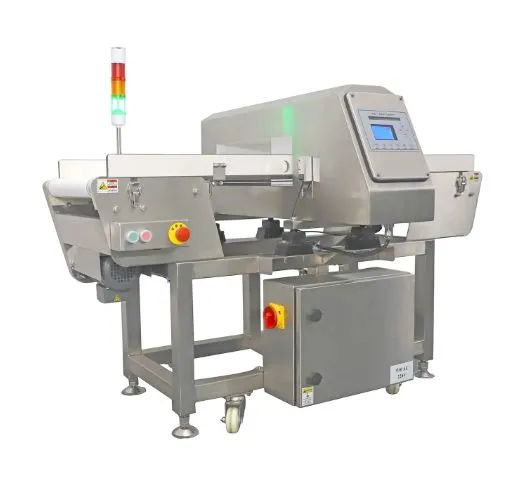

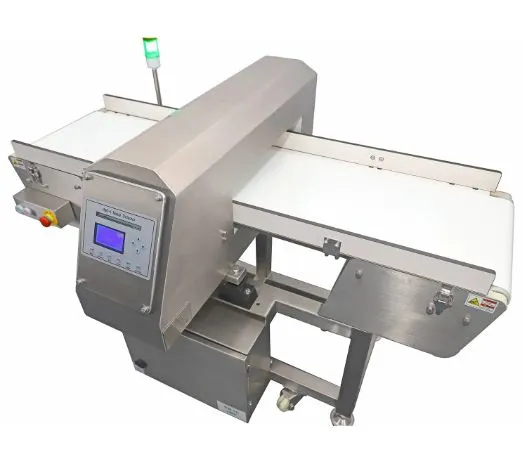

微信截图_20250615224722微信截图_20250615224713微信截图_20250615224730微信截图_20250615224740微信截图_20250615224703

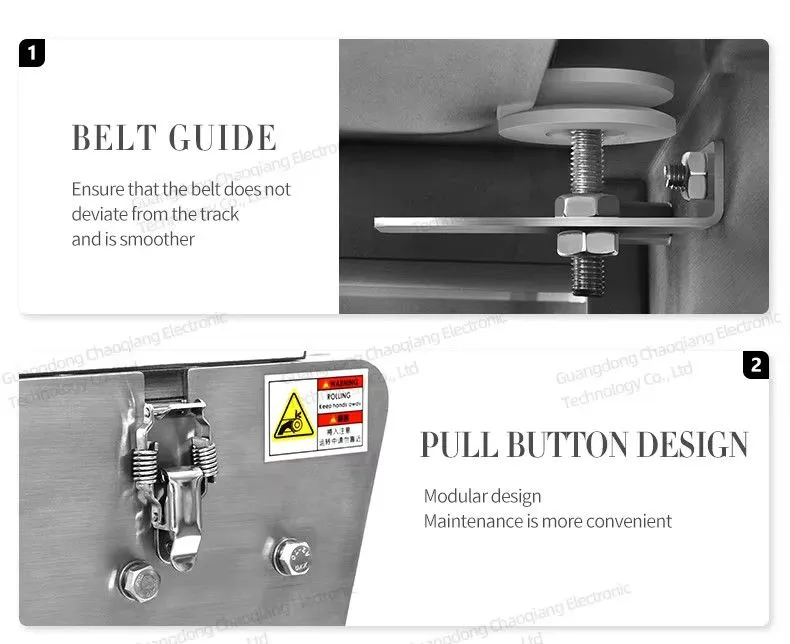

H0e7f2e00feaa4f1fb79dc5096c8dbc1cR.jpgH169de436234e461bbd1a8f92ccbd84d3Q.jpgH2358836c98b148dd8dbe0b56f27ac4d7u.jpgHa6a953462b3c4735a4766977aca77d46E.jpgHd5dd29cbe1734ee880540a40922d889dn.jpg



Packaging and delivery
Selling units
Single item
Single package size
160X100X105 cm
Single gross weight
200.000 kg








Feed Packaging Machine Automated Palletizing System Palletizing Robot





Bulk bag filling station


Liquid filling machine


Stretch hood machine


Pallet wrapper machine


Bag weighing filling machine


Bulk bag discharger machine


Palletizer


Crushing equipment


web:


email: shiyan-110@163.com


whatsapp: 0086 135 0624 5149


we can manufacture according to your requirement.  so welcome your enquiry.
