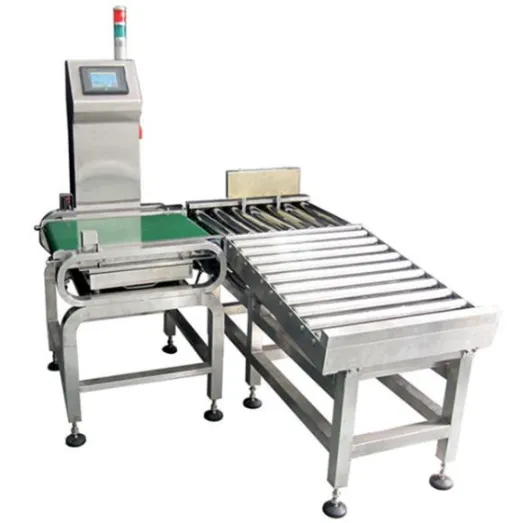

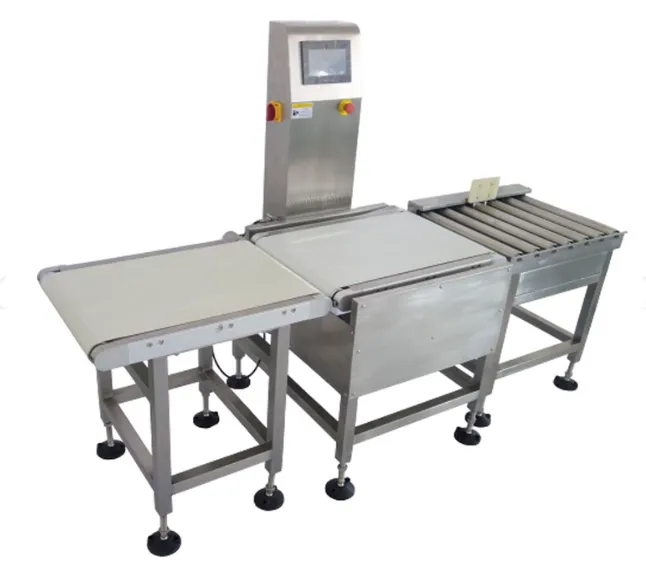

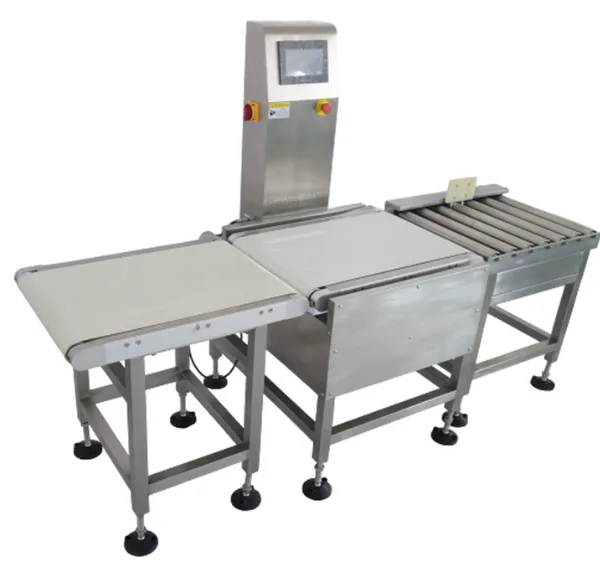

weight checker machine
1.Infeed conveyor :620（L）*400（W）mm
Weighing conveyor : 620（L）*400（W）mm
Reject conveyor :900（L）*400（W）mm
2.Weighing material size : ≤ 450（L）*390（W）mm
3.Weighing accuracy range: ±2g ~ ±5g
4.weighing range：≤ 20 kg
5.Minimum scale：1g
nveying speed :20~80m/min
7.Machine material:304 Stainless steel
8.Power supply:AC220V 50HZ（60HZ）
9.Operation direction:Run from left to right.
10.Belt height from ground:700-800mm
11.Machine size:2146*1110*1231mm
12.Reject method: Pusher.
13.Interface language: English.
14.With RS-485 and USB interface.
15.Touch screen: 7 inches.
16.Can store 100 recipes.

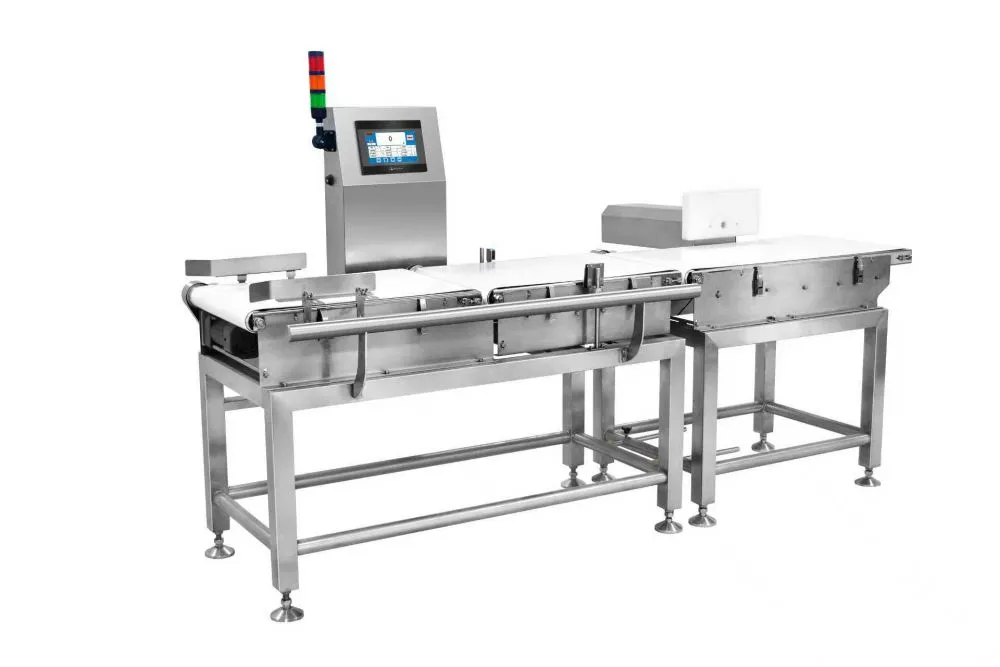

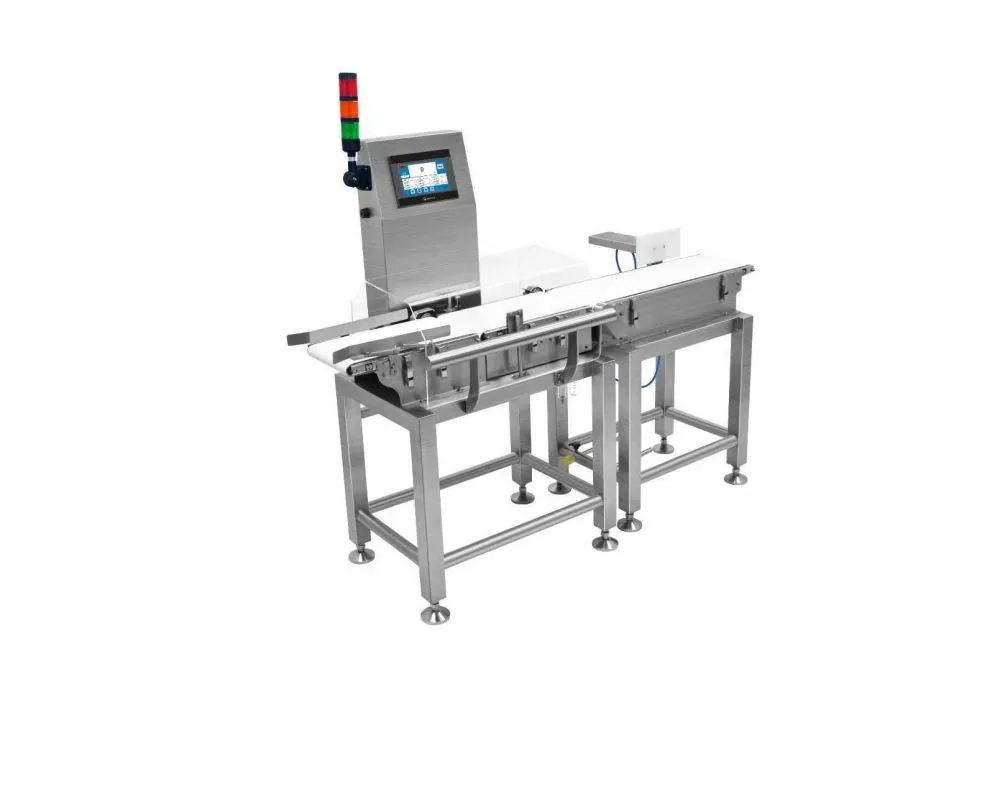

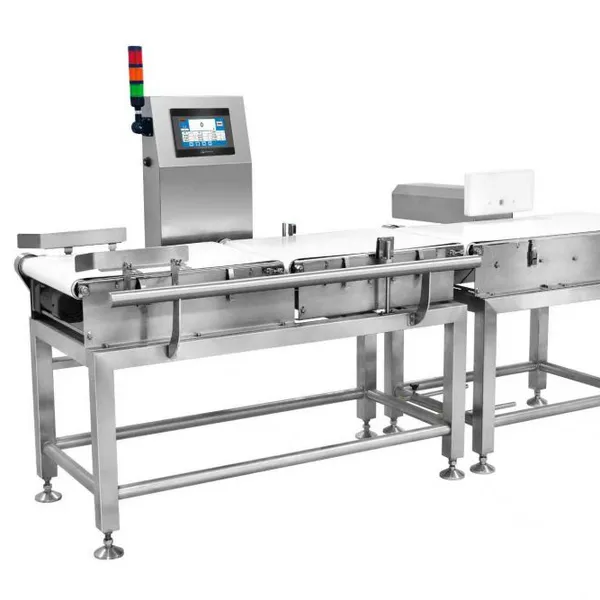

Description:
Food weighing scale is an online weight detection equipment specially developed and designed for the food industry. It adopts modular design, all stainless steel structure, and the food contact part is made of food grade materials. It is suitable for testing products in automated production lines and packaging lines, such as net weight detection, damage detection, omission detection, missing part detection, etc
Food check weigher can determine the specifications and models of weighing equipment, as well as the method of weight removal, based on the customer's product size, weight, and product characteristics. The product weight range can reach up to 6kg
| Weight inspection for boxed, bagged, and bottled food | |
| Capacity | 10g~6kg |
| Model Selection | EC |
| Belt Width | 150/200/300/400mm |
| Scale Length | 300/400/500mm |
| In/Outfeed | 300/400/500/600mm |
| Shaft Diameter | 25mm/38mm |
| Max Throughput | 0~200pcs/min |
| Accuracy 3σ | ±0.1g~3g |
| Division Value | 0.05g/0.1g/0.2g |
| Belt Height | Can be customized |

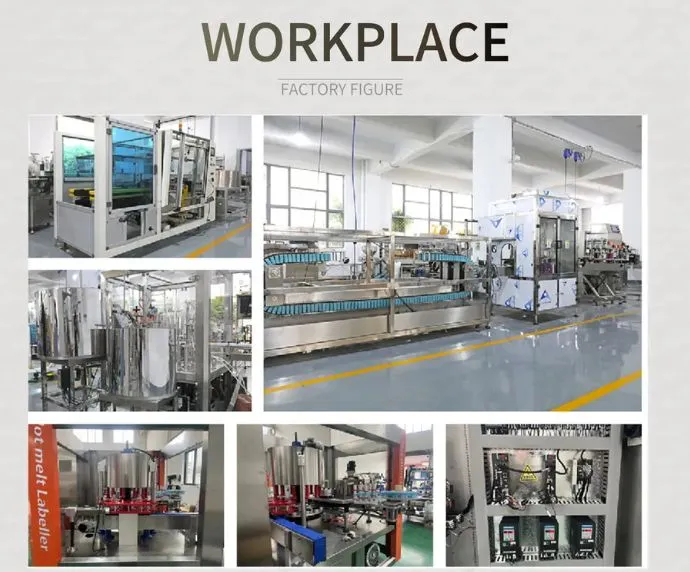

Factory and application
equipment has been widely used in different fields.
