Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder

Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder thumbnail-1
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder thumbnail-2
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder thumbnail-3
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder thumbnail-4
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder thumbnail-5
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder photo-1
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder photo-2
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder photo-3
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder photo-4
Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder photo-5
US$ 1 - 999999 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2006
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Gusu District Qiusheng Commercial Equipment Firm
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Jiangsu Machinery Waste Plastic Recycling Single Shaft Shredder


Waste Plastic Paper Double Shaft Shredder Machine

Jiangsu Kitech Machinery Waste Plastic Recycling Single Shaft ShredderJiangsu Kitech Machinery Waste Plastic Recycling Single Shaft ShredderJiangsu Kitech Machinery Waste Plastic Recycling Single Shaft Shredder

Material of ACEEXTECH Shredder:
Jiangsu Kitech Machinery Waste Plastic Recycling Single Shaft Shredder
Basic data of ACEEXTECH shredder:

ALS Series Shredder

Model

ALS-600

ALS800

Rotor diamter

300mm

400mm

Rotor width

600mm

800mm

Feed opening

600*1000

800*1200mm

Drive motor

22KW

37KW

No. of rotor knives

22pcs, SKD-11

30pcs, SKD-11

No. of stator knives

1-2pcs, SKD-11

2-4pcs, SKD-11

Hydraulic drive

1.5KW

2.2KW

Output capacity

200-300kg/h

400-600kg/h

Screen size

50mm

50mm

  • Heavy duty type rack, hydraulic drive for material pushing,

  • Special designed feeding hopper to avoid material splashing

  • Material of blades is SKD-11, high wear resistance and strong for hard material such as PP woven bag,

  • Repairing door was designed on the the chamber, Easily to change the blades,

  • PLC control system.

AMS Series Shredder



Model
  		AMS-1000 AMS1200 AMS1500

Rotor diamter
  		400mm 400mm 600mm

Rotor width
  		1000mm 1200mm 1400mm

Feed opening
  		1300*1000mm 1300*1200mm 1300*1500mm

Drive motor
  		55KW 75KW 132KW

No. of rotor knives
  		38pcs, SKD-11 46pcs, SKD-11 58pcs, SKD-11

No. of stator knives
  		2-4pcs, SKD-11 2-4pcs, SKD-11 2-4pcs, SKD-11

Hydraulic drive
  		3.75KW 5.5KW 5.5KW

Output capacity
  		500-800kg/h 600-900kg/h 1000-1500kg/h

Screen size
  		50mm 50mm 50mm


  • Heavy duty type rack, hydraulic drive for material pushing,

  • Special designed feeding hopper to avoid material splashing

  • Material of blades is SKD-11, high wear resistance and strong for hard material such as PP woven bag,

  • Repairing door was designed on the the chamber, Easily to change the blades,

  • PLC control system.

Product Parameters




ABS Series Shredder



Model

ABS-1200

ABS1600

ABS2000

ABS2500

Rotor diamter

560mm

560mm

560mm

560mm

Rotor width

1200mm

1600mm

2000mm

2500mm

Feed opening

1200*1850mm

1600*1850mm

2000*1850mm

2500*1850mm

Drive motor

90KW

110KW

2*75KW

2*90KW

No. of rotor knives

105pcs, D2

140pcs, D2

180pcs, D2

225pcs, D2

No. of stator knives

6pcs, D2

8pcs, D2

12pcs, D2

10pcs, D2

Hydraulic drive

5.5KW

5.5KW

7.5KW

7.5KW

Weight

8500KG

10000KG

13000KG

15000KG

Output capacity

800-1000kg/h

1000-1500kg/h

1200-1800kg/h

1500-2000kg/h

Screen size

50mm

50mm

50mm

50mm

  • Heavy duty type rack, hydraulic drive for material pushing,

  • Material of blades is D2, high wear resistance and strong for hard material such as PP woven bag,

  • Repairing door was designed on the the chamber, Easily to change the blades,

  • PLC control system.



Home > Industrial Shredder > Single Shaft Shredder

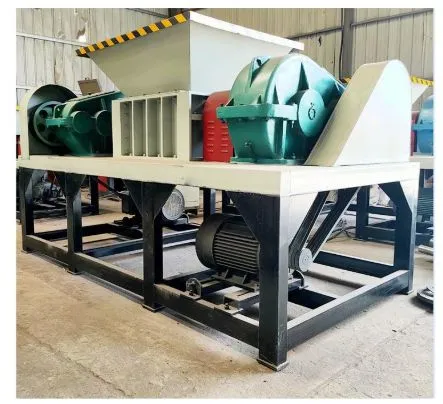

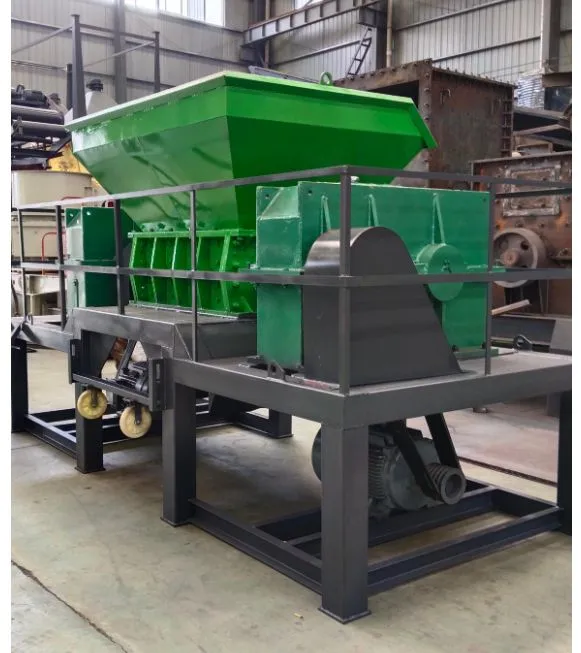

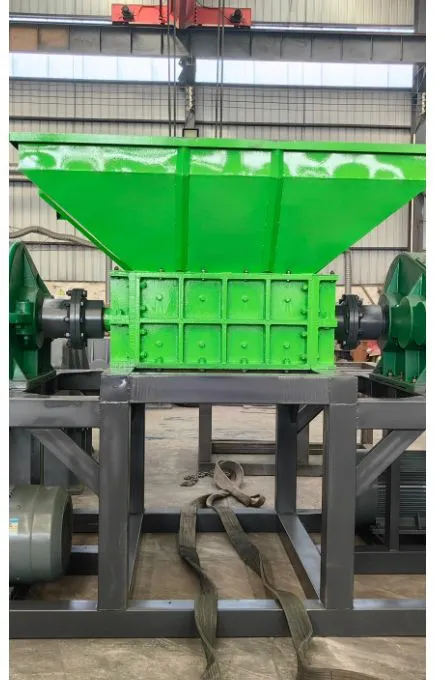

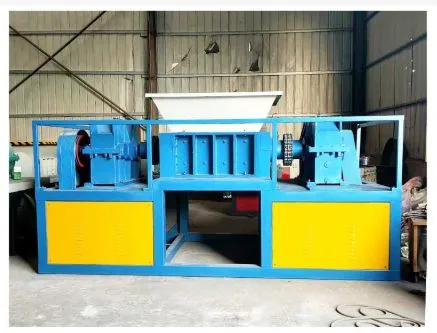

 微信截图_20250628200043微信截图_20250628200227微信截图_20250628200213微信截图_20250628200203微信截图_20250628200156

  • Single Shaft Shredder

  • Single Shaft Shredder

  • Single Shaft Shredder

  •  Single Shaft Shredder

  • Single Shaft Shredder

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

Single Shaft Shredder
The SR series single shaft shredder is popular size reduction machine used for materials that contain minimal amounts of metal, such as plastic, paper, wood, waste wires and cables. The screen mesh size is determined by material nature and subsequent processing requirements. The shredded particles can then be reused or further processed. An intelligent electric control provides a high degree of machine safety.

Application::Plastic,plastic lump,PET，PC，ABS
Plastic,plastic lump,PET，PC，ABS
Plastic film,PP，PE，
MSW,RDF
Metal,copper,steel,iron,aluminium
Wire and cables
Wood
Glass fiber
Electronic Scrap
Solid waste,Medical Waste
Get the latest quote
Desciption


Single shaft shredders reduce bulky materials into small, consistent particles. The material size is reduced using a pusher system and shingle shaft rotary blades. The particle size is determined by the screen mesh hole size, ranging from 40 to 100mm.

Features:

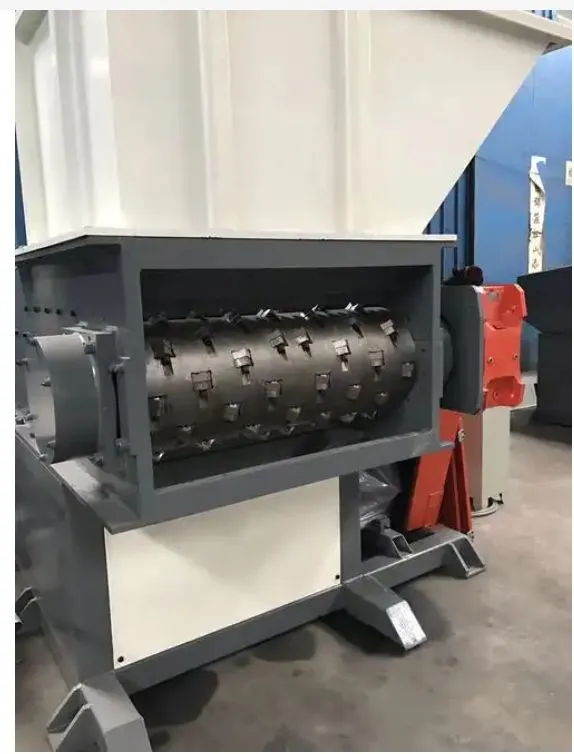

Rotor
“V” arrangement rotor with double side edge cutters prevent material build up. The rotating blades are made of CrMoV high alloy wear resistant steel, with different configurations and compositions available. The cutter blades feature a long service life allowing for multiple reuse before needing to be replaced.
Adjustable fixed blade
Adjustable fixed blade: the spacing between fixed blades is adjustable to create a broader shredding range. Surface overlaying wear-resistant material is used as the fixed blade, allowing the shredder to handle harder or higher abrasion materials as well as provide long term, stable operation.

  • Pusher system:

    Pusher system: reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.

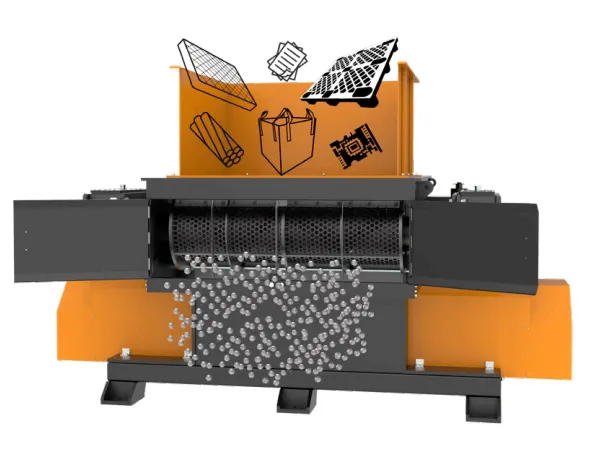

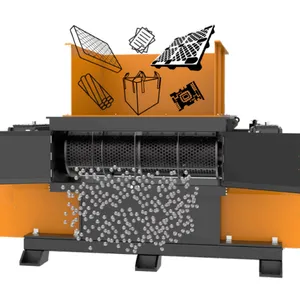

Screen unit:

Screen unit: a wide range of screens with a variety of configurations and mesh sizes are replaceable based on customer’s production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.



Drive train:

Drive train: intelligent hydraulic control. When shredding breakable materials, the oil cylinder will run at the fastest speed; when shredding difficult materials, the pushing speed will slow down to prevent rotor overloading. Every hydraulic system is equipped with a cooling system to increase the durability and stability in long-time operation.




         Working Steps

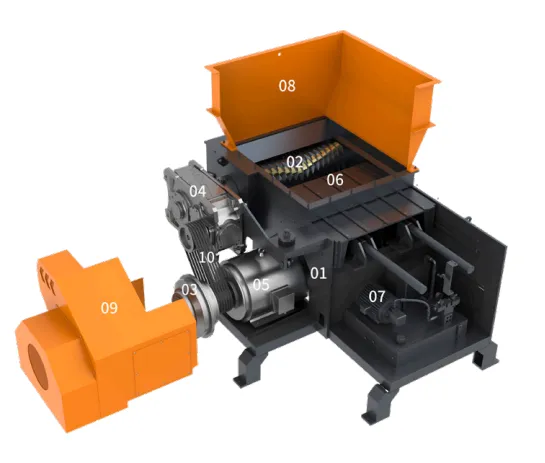

Hydraulic system makes pushing device run and motorspass power into rotor by belt and gearbox. Rotor upperand bottom stator blades will work as cutting motion.
Materials are fed into the hopper and pushed by pushingchamber between rotor blades, upper and bottom statorblades.After being shred,fed materials will becomegranules.
Step1:
Ready condition.		 Step2:
Hydraulic system starts and has materials pushed into rotor.		 Step3:
Materialiscutintosmallergranuleswhichfallthroughscreenmesh.




         Application Range:


Textile
Before Shredding 		Plastic lumps
Before Shredding 		Paper
Before Shredding 		Film
Before Shredding 		Glass fiber
Before Shredding 		Municipal solid waste
Before Shredding

Textile
After Shredding
Plastic lumps
After Shredding 		Paper
After Shredding 		Film
After Shredding 		Glass fiber
After Shredding 		Municipal solid waste
After Shredding




     Parameters:



Model SR600 SR750 SR900 SR1400 SR1600 SR2100
Main shaft speed(rpm) 73 73 73 73 73 73
Ram travel(mm) 500 820 820 820 1000 1000
Rotor diameter(mm) Φ220 Φ400 Φ400 Φ400 Φ480 Φ480
Number of rotor blades(pcs) 23 44 52 80 94 122
Number of fixed blades(pcs) 4 6 6 10 12 16
Discharge height(mm) 500 610 610 610 950 950
Screen holes diameter(mm) 40 40 40 40 40 40
Motor power(kw) 18.5 37 45 75~90 2x55~2x75 2x75~2x90
Hydraulic power(kw) 1.5 2.2 2.2 5.5 7.5 7.5
Cutting chamber dimensions(mm) 540x600 830x708 830x840 830x1302 1000x1533 1000x1995
Overall dimensions(LxWxH)(mm) 1800x1350x1700 2810x2000x2115 2810x2100x2115 2810x2890x2115 3475x4100x2700 3475x4900x2700
Weight(kg) Approx 1600 Approx 4460 Approx 4560 Approx 6200 Approx 10800 Approx 13000



  Case


Bulk bag filling station


Liquid filling machine


Stretch hood machine


Pallet wrapper machine


Bag weighing filling machine


Bulk bag discharger machine


Palletizer


Crushing equipment


web:


email: shiyan-110@163.com


whatsapp: 0086 135 0624 5149


we can manufacture according to your requirement.  so welcome your enquiry.
