Netion Double Row Micro Module Data Center

Netion Double Row Micro Module Data Center thumbnail-1
Netion Double Row Micro Module Data Center thumbnail-2
Netion Double Row Micro Module Data Center thumbnail-3
Netion Double Row Micro Module Data Center photo-1
Netion Double Row Micro Module Data Center photo-2
Netion Double Row Micro Module Data Center photo-3
US$ 3000 ≥1 Piece
Key Specifications
Get Latest Price
Type:
On-line
Classification:
Lighting/Power
Application:
Other, Power supply and protection
Contact Supplier Request Quote Chat Now
Guangdong Netion Power Electronics Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type On-line
Classification Lighting/Power
Application Other, Power supply and protection
Phase Three Phase
Brand Other, NETION
Standby Time Long-acting Machine
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Protection Overvoltage
Output Capacity Large Type
Transport Package Wooden Box
Specification Single row
Trademark NETION
Origin China
Single cabinet/single row micro module Data Center


Basic Features

Efficient and energy-saving

The front and rear cold channels of the cabinet are closed to improve the cooling efficiency of the air conditioning.

Variable frequency compressor, matched with load size, reduces overall energy consumption.



Stable and reliable

Support N+1/2N design to ensure stable operation of IT equipment.

Emergency fans serve as emergency cooling.

Stable operation of ultra wide voltage input, with phase sequence detection and other electrical guarantees.


Source protection function.

Intelligent call self start function. Flexible and diverse

Low temperature components or long connected pipe components can be selected to ensure reliable operation of the unit in more severe on-site conditions.



Fast delivery speed

Factory prefabricated, quick on-site splicing, plug and play.

Standard modular construction, easy deployment, and quick deployment,

The later expansion will not affect each other, and the delivery target speed will increase by 50%.



Intelligent control

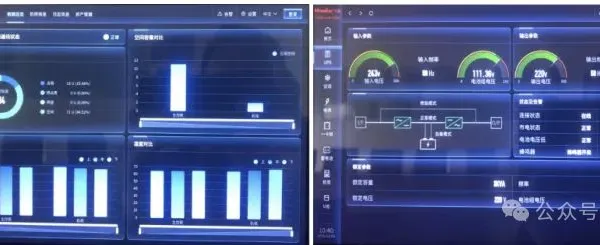

Local display on a 10 inch large touch screen, not occupying the U position.

Can manage intelligent devices such as UPS, air conditioning, power distribution, and temperature and humidity

Non intelligent devices such as temperature sensors, smoke detectors, and access control.

Through the WEB interface, remote comprehensive monitoring of unmanned computer rooms can be achieved, ensuring stable and reliable remote monitoring of the computer room to achieve unmanned or few people on duty, providing strong guarantees for efficient management and safe operation of the computer room.



Flexible and diverse

The cabinet is the computer room and can be flexibly placed.

The standard configuration is a dual closed cold and hot channel, or a single closed cold channel.



Single row micro module classification

Single cabinet

Single row multi cabinet



Naming rules


Single row micro module standard configuration



System

Model

Control   Cabinet

IT cabinet

Battery   Cabinet

Battery   position

Battery   capacity

UPS Power

Cooling Power

Total cabinet   positions

Single cabinet

Lx-MD31R103J103U-12

1

0

0

Internal

12V9Ah×6

3kVA×1

3.5kW×1/ Rack

1

1+1

Lx-MD32R105J106U-12

1

1

0

Internal

12V9Ah×16

6kVA×1

5kW×1/ Rack

2

1+2

Lx-MD33R107J110U-12

1

2

0

Internal

12V9Ah×16

10kVAx1

7.5kW×1/ Rack

3

1+3

Lx-MD34R112J120U-12

1

3

0

Internal

12V40Ah×16

20kVA×1

12.5kW×1/ Rack

4

1+4

Lx-MD35R112L120U-12

1

4

0

Internal

12V65Ah×16

20kVAx1

12.5kW×1/ Inter column

6

1+4

Lx-MD35R112L120U-12C

1

4

1

External

12V10OAh×16

20kVA×1

12.5kW×1/ Inter column

7

1+5

Lx-MD36R115L120U-12

1

5

1

Internal

12V100Ah×16

20kVAx1

15kW×1/ Inter column

8

1+5

Lx-MD36R115L120U-12C

1

5

0

External

12V100Ah×16

20kVA×1

15kW×1/ Inter column

7

1+6

Lx-MD37R212L130U-12

1

6

2

Internal

12V100Ah×32

30kVA×1

12.5kW×2/ Inter column

11

1+6

Lx-MD37R212L130U-12C

1

6

0

External

12V10OAh×32

30kVA×1

12.5kW×2/ Inter column

9

1+7

Lx-MD38R212L130U-12

1

1

2

Internal

12V10OAh×32

30kVA×1

12.5kW×2/ Inter column

12

1+7

Lx-MD38R212L130U-12C

1

7

0

External

12V100Ah×32

30kVA×1

12.5kW×2/ Inter column

10

Single cabinet structure diagram


Single row multi cabinet structure diagram



Technical Specifications

Item

Description

System

Single cabinet

1+1

1+2

1+3

1+4

1+5

1+6

1+7

Overall parameters

Power supply system

220V,50Hz,1Ph+N+PE

380V,50Hz,3Ph+N+PE

Working Temperature

0~40ºC

Humidity range

5~95%

Altitude

0~4000m(Reduce   capacity for use   above 1000m)

Cabinet System

Cabinet dimension:W×D×H(mm)

600×1200×2000

Cabinet composition

Control   cabinet+IT cabinet+air   conditioning cabinet+battery cabinet (optional)

Cold and hot channels

Cold   and hot channels, double   closed, cold channels, single closed

Device available space

Free space

42U×(N-1), the specific available space depends on the configuration.

Distribution system

System input

Input main switch

40A/2P

63A/2P

100A/2P

80A/3P

125A/3P

System output

Output circuit

Configure according to user requirements

UPS

Capacity

3kVA

6kVA

10kVA

20kVA

30kVA

Configuration

Single UPS

Single/DualUPS

Power Factor

0.8

0.9

Efficiency

93% above

PDU

Installation method

Vertical installation

Type

National standard

Configuration

32A,GB16×10A+4×16A

Battery Pack

Capacity

9Ah

QTY

0~4

Backup

Backup mode

Battery pack/rack/cabinet

Battery cabinet

Backup time

15 minutes to 4 hours, configured according   to user requirements

Dynamic loop system

Integrated monitoring machine

10-inch touch screen

SMS alarm

Optional

Atmosphere light

standard configuration

Audible and Visual Alarm

standard configuration

Water immersion

standard configuration

Temperature sensor

standard configuration

Door contact

standard configuration

Smoke Detector

standard configuration

infrared

Optional

Cooling

system

Cooling

Refrigeration capacity

3.5kW×1

5kWx1

7.5kW×1

12.5kW×1

12.5kW×1

15kw×1

12.5kW×2

12.5kW×2

Classification

Rack mounted variable frequency

Inter column frequency conversion

Work Voltage

220V

380V

Eemergency ventilation

Exhaust air volume(myh)

720

1440

2160

2880

3600

4320

5040

5760

Work Voltage

220v

Dimension/GW

Package dimension:

W×D×H(mm)

734×1360×2200(unit)

NW

140kg(Control Cabinet),100kg(IT Cabinet)
