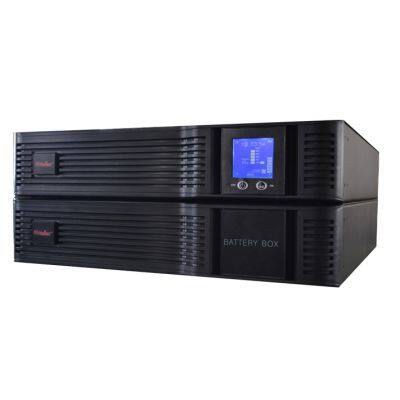

Help CenterNetion UPS RC Series 19-Inch Rackmount High Frequency Online UPS 1 ~ 20kVA
Related Products
-
Netion UPS D Series High-Frequency Online UPS 1~3kVAUS$ 60MOQ: 1 Piece -
Netion UPS D Series High-Frequency Online UPS 6~20kVAUS$ 100MOQ: 1 Piece
-
Netion UPS Dp Series Low Frequency Online UPS 6~20 KVAUS$ 300MOQ: 1 Piece
-
Netion UPS Integrated Power Supply and Distribution UPS (PDM15-180kVA)US$ 1000MOQ: 1 Piece
-
Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set)US$ 1000MOQ: 1 Piece
1. 19'rack design to provide more flexible and reliable power protection for critical equipment.
2. Real online design, output pure sine wave, pollution-free, conversion time is zero.
3. Intelligent MCU / DSP design, using PFC power factor correction, the input power factor is greater than 0.99, the whole machine efficiency is more than 93%, and the input current harmonic is less than 5%.
4. Using high frequency and IGBT transformation technology, improve the efficiency and reliability of the whole machine, small volume, light weight.
5. Perfect self-protection function, peak current and short circuit protection design, super load load impact resistance.
6. Optional D class lightning protection device with surge prevention, lightning protection design, effectively protect the equipment from lightning interference.
7. 6 ~ 20 KVA can choose the parallel redundancy function to realize the N + 1 parallel redundancy.
8. Intelligent local and remote monitoring function RS232 interface, compatible with SNMP.

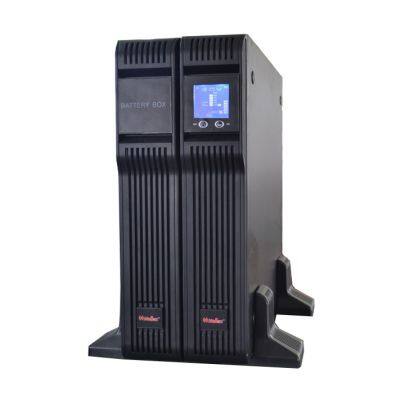

9. Tower and rack design, tower type and frame type free combination, more convenient installation.
Model |
1K |
1KS |
2K |
2KS |
3K |
3KS |
6K |
6KS |
10K |
10KS |
3-10KS |
3-15KS |
3-20KS |
|
|
Rated capacity (PF=0.9) |
1kVA/0.9kW |
2kVA/1.8kW |
3kVA/2.7kW |
6kVA/5.4kW |
10kVA/9kW |
15kVA/13.5kW |
20kVA/18kW |
|||||||
Input |
Voltage |
120~300VAC (single-phase two-wire+G)/304~478VAC (three-phase four-wire+G) |
||||||||||||
Frequency |
50/60Hz±10% |
|||||||||||||
Output |
Voltage |
220/230±1%VAC |
||||||||||||
Frequency |
Synchronized with input (mains mode), 50/60Hz±0.5%(battery mode) |
|||||||||||||
Discharge waveform |
Pure sine wave |
|||||||||||||
Transfer time |
Zero |
|||||||||||||
Built-in battery (12V) |
7/9Ahx2 |
- |
7/9Ahx4 |
- |
7/9Ahx6 |
- |
7/9Ahx16 |
- |
7/9Ahx16 |
- |
- |
|||
External battery DC voltage (Vdc) |
- |
36 |
- |
72 |
- |
96 |
- |
192 |
- |
192 |
192/240 |
|||
Battery type |
Valve-controlled lead-acid maintenance-free storage battery |
|||||||||||||
overload capacity |
105-120%, after 10 seconds to the bypass; |
|||||||||||||
120-140%, after 200ms to the bypass; | ||||||||||||||
140-150%, after 200ms to the bypasss, then shutdown after 10 seconds; | ||||||||||||||
>150%, shutdown immediately | ||||||||||||||
The load peak ratio |
3: 1( max ) |
|||||||||||||
Distortion rate (full load) |
Linear load |
|||||||||||||
Nonlinear loading |
||||||||||||||
Communication interface |
Rs 232 interface: optional USB interface) + SNMP smart slot |
|||||||||||||
Working temperature |
0C~40℃ |
|||||||||||||
Relative humidity |
0%~90% (no condensation) |
|||||||||||||
Size |
W×D×H |
430×510×85mm(2U) |
430×710×85mm(2U) |
430×600×85mm（2U） |
430×680×170mm(4U) |
|||||||||
Standard type |
2U |
- |
2U+2U |
- |
2U+2U |
- |
2U+2U |
- |
2U+2U |
- |
- |
- |
- |
|
Extended time type |
- |
2U |
- |
2U |
- |
2U |
- |
2U |
- |
2U |
2U |
4U |
4U |
|
Reference weight (kg) |
12/14 |
8.5 |
27/30 |
13 |
28/31 |
13.5 |
89 |
18 |
90 |
19 |
26 |
40 |
40 |
|
Compliance with standard |
GB/T14715-2017; YD/T1095-2018; EN62040-1:2008+A1:2013; EN62040-2:2018 |
|||||||||||||
