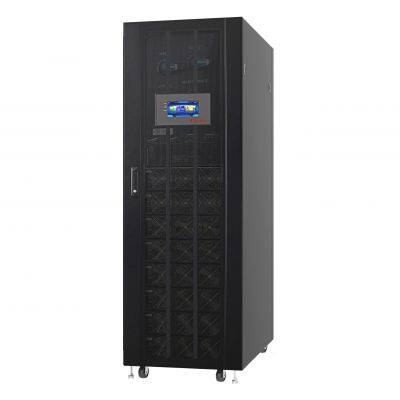

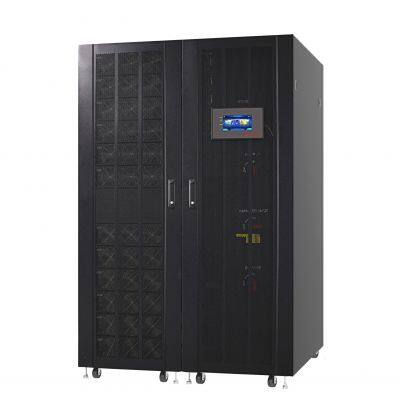

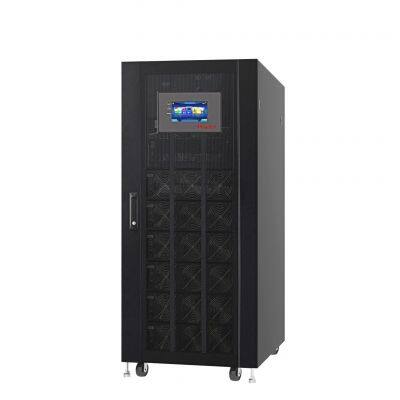

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set)

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set) thumbnail-3

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set) thumbnail-4

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set) photo-1

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set) photo-2

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set) photo-3

Netion UPS Fault Tolerant N+X Modular UPS MP Series20~1200kVA (single Set) photo-4

This product is applicable to a wide range of computer equipment , communication systems and automatic equipment.

High reliability design

Ultra wide input voltage range: 138 ~485Vac ( phase voltage: 80 ~280Vac) , no derating for use above 305Vac .

Energy saving , green and environmental protection

High input PF value , up to 0 .99. The three-level topology is adopted , and the overall efficiency is up to 96 .5% .

Parallel redundancy function

Direct parallel connection , 6 sets can be connected in parallel , and the parallel connection can share the battery pack.

Flexible battery configuration scheme

The number of battery cells can be set from 30 to 50. The single machine has large capacity charging power to meet the backup demand of long time delay.

Super load capacity

The output power factor is 1/0.9 . It can carry 100% unbalanced load. It has strong load adaptability and can carry pure inductive load and capacitive load close to full load.

Compatible with generator operation

The Power Walk In function can reduce the impact current of system startup and reduce the demand of parallel system for generator capacity.

LBS synchronization function

LBS synchronization function is provided to realize synchronization of two independent UPS systems and improve system reliability.

Intelligent management function

Support RS485 , SNMP , dry contact and CAN interface .

Model ( max . capacity)		MP200kVA/ MP300kVA/ MP400kVA/ MP500kVA/ MP600kVA/ MP800kVA/MP1200kVA
Capacity	UPS cabinet	80K~200K-20、90K~300K-30、120K~400K-40、200K~800K-50（60）、600K-100、1200K-100
	Modular	20kVA/30kVA/40kVA/50kVA/60kVA/100kVA
Main circuit input
Power supply system		Three phase four wire+grounding
Rated voltage		380/400V/415VAC
Voltage range		138~485 , 305~485Vac (no derating) , 138~305 Vac (linear derating)
Frequency range		40~70Hz
Power factor		>0 .99
Input current harmonic
Bypass input
Input voltage		380/400V/415Vac
Bypass range		Upper limit of bypass protection voltage:+25% (optional+5% , +10% , +20%)
		Lower limit of bypass protection voltage: -45% (optional -20% , -30%)
Power supply system		Three phase five wire
Bypass synchronous tracking range		50/60Hz±10%
Power Walking In		Support
Bypass back filling		Support
Generator connection		Support
Output
Rated voltage		380/400V/415VAC ±1%
Power factor		1 .0/ 0 .9
Voltage accuracy		± 1 %
Output frequency	Mains mode	Synchronize with input; When the mains frequency exceeds the maximum ± 10% (± 1 % , ± 2 % , ± 4 % , ± 5 % can be set) , output frequency 50/60 (± 0 .2 %) Hz .
	Battery mode	50/60(±0 . 1 %)Hz
Load peak ratio		3:01
Transfer time		Mains mode to bypass mode: 0ms (tracking) ; mains mode to battery mode: 0ms
Overload capacity		Load ≤ 110%, maintain for 60min, ≤ 125%, maintain for 10min, ≤ 150%, maintain for 1min
Output voltage distortion		≤ 2 % ( linear load)
		≤ 4 % ( non-linear load)
Efficiency
Normal mode		≥96 .5 %
Communication interface
UPS cabinet		RS232 , RS485 , 2 intelligent slots , dry contact
Battery
Battery voltage		±180~ ±300Vdc (30~50 sections optional)
Work environment
working temperature		-10℃ ~45℃
relative humidity		0~95% non condensing
Storage temperature		-20℃ ~65℃
Altitude		＜1500m
Noise ( Db)		＜70 ( 1 m away)
Physical characteristics		20/30/40kVA 3 module cabinet	20/30/40kVA 5/6 module cabinet	20/30/40kVA 10 module cabinet	50/60kVA 4/6/8/10/12 module cabinet	100kVA 6/12 module cabinet
Dimension W×D×H(mm)	System cabinet	600 × 850 × 1400	600 × 850 × 1400	600 × 850 ×2000	600 × 850 ×2000/1200×850×2000	800 ×1000×2000/ 2200×1000×2000
	Modular	440 × 580 × 86			440 × 620 × 130	440 × 750 × 130
Weight (Kg)	System cabinet	142	142	245	178/240/411/435/510	440/780
	Modular	18.5/21/22			33/33.2	49
Executive standards
Executive standards		CE , EN/ IEC 62040-2 , EN/ IEC 62040-1-1 , YD/T2165-2017
