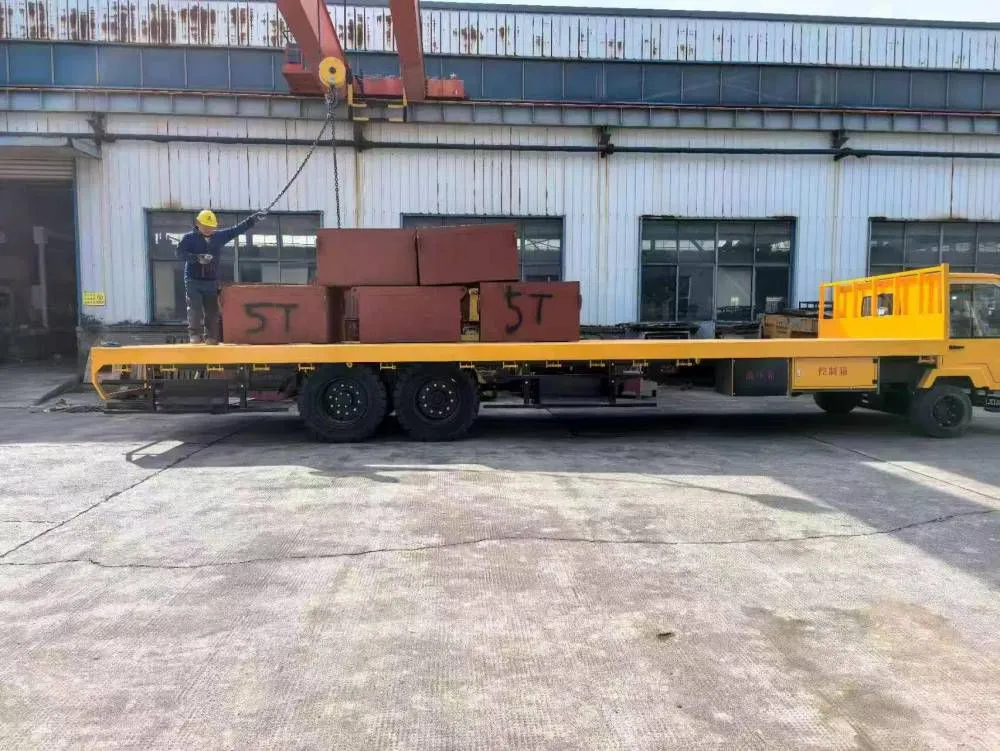

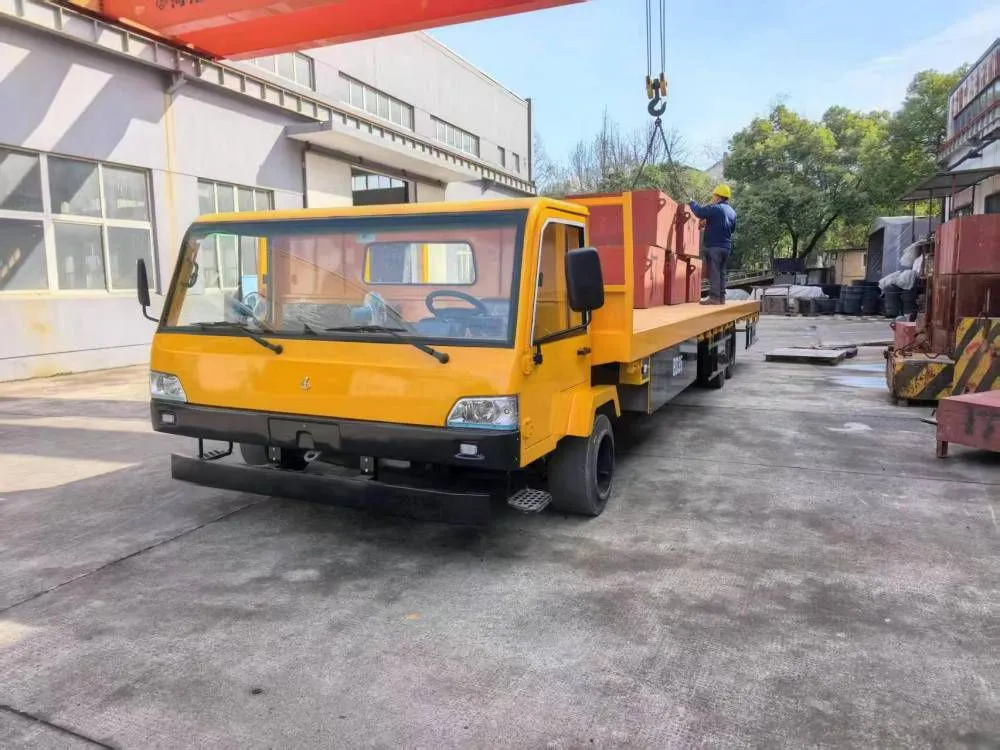

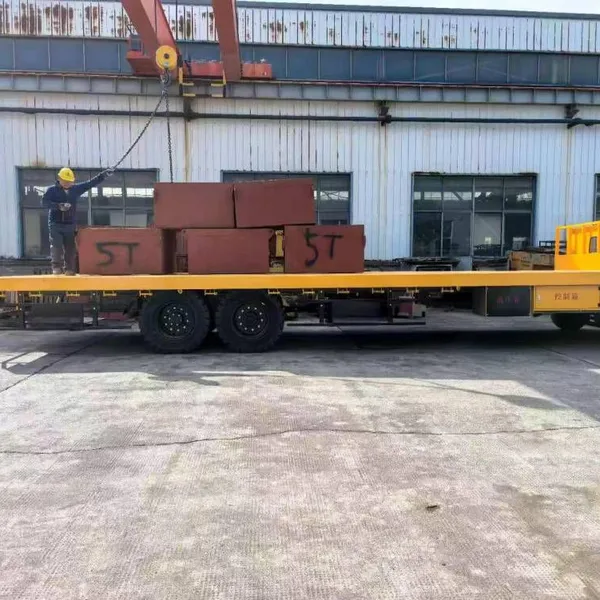

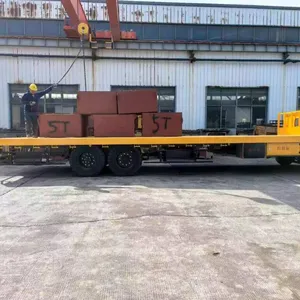

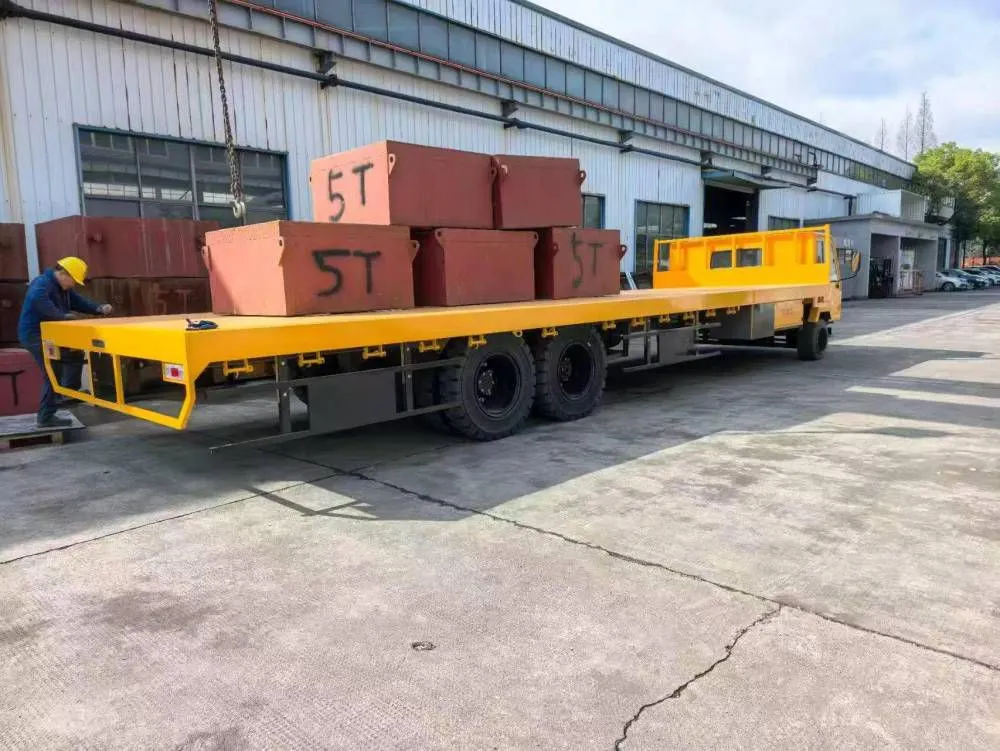

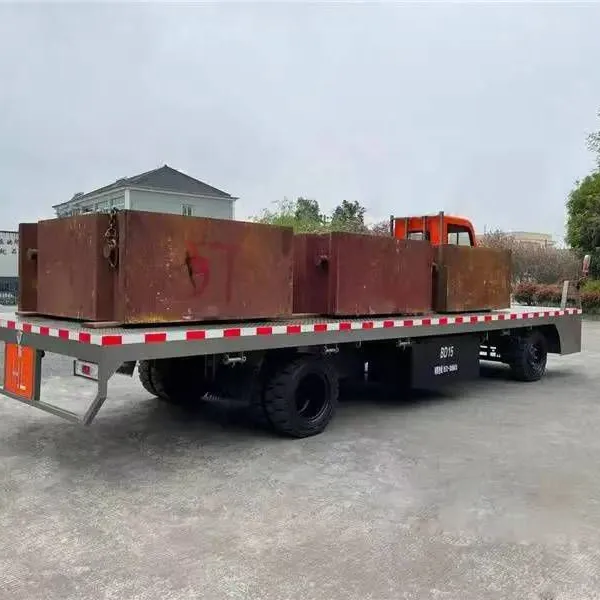

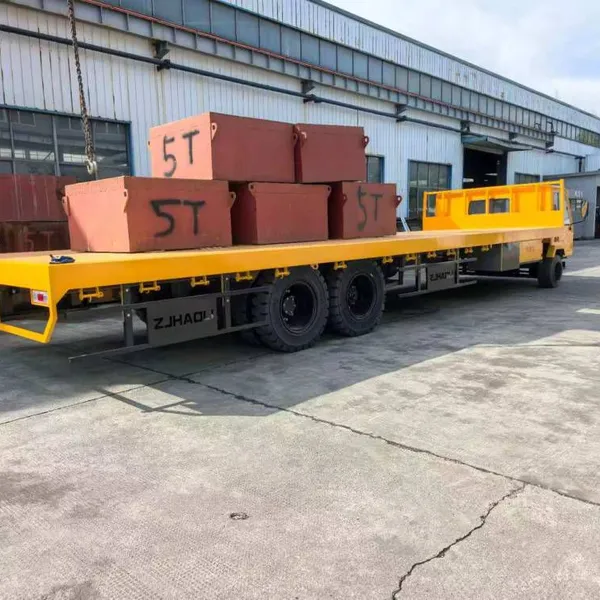

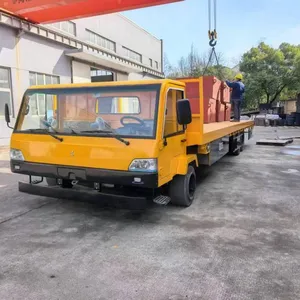

Help Center30-ton Electric Truck - 30-ton Load Capacity Electric Flatbed Truck for Factory Areas
Related Products
-
"Multi-Seat Electric Tour Bus – Quiet, Emission-Free Mobility Solution for Scenic Areas"US$ 9000MOQ: 1 Unit -
Factory-Price Electric Sightseeing Car – Spacious, Sustainable Transport for Tourist ZonesUS$ 6800MOQ: 1 Unit
-
Multi-Seater Electric Tour Bus – Quiet, Emission-Free Mobility Solution for Scenic SpotsUS$ 6800MOQ: 1 Unit
-
Likaishide 4+ 2-seat Electric Golf CartsUS$ 7196MOQ: 1 Unit
-
2/4/6-Passenger Electric Golf Cart – LSV Compliant, 25 MPH, FMVSS 500 Certified, Ideal for Neighborhoods & CommunitiesUS$ 6500 - 7600MOQ: 1 Unit
Manufacturer of electric flatbed trucks, Suzhou Likeshide Electric Vehicle Co., Ltd., offers electric trucks and flatbed trucks with capacities of 1 ton, 2 tons, 5 tons, and 8 tons
30 Quotation for single-sided cab flatbed battery trucks with a capacity of 30 tons
Electrical System |
Dual AC electronic controls |
Megmeet (Shenzhen Factory) |
|
Lithium iron phosphate battery |
410Ah/144V; (Hangcha Electric Appliance) |
||
AC drive motor |
ZPJ32KW/144V/HL2 |
||
AC steering motor |
ZPJ10KW/144V/HL |
||
Lithium battery charger |
100A/144V Intelligent charger |
||
Charging time |
4 - 5 hours (when the discharge rate is 90%) |
||
Technical Parameters |
Rated passengers |
1 person |
|
Overall dimensions |
8350×2580×2250 |
||
Length * Width * Height of the cargo box |
7000×2500×1300 |
Braking distance |
≤3.0m |
Curb weight of the whole vehicle |
≈8500kg |
Charging input voltage |
380V |
Vehicle load |
30000kg |
Driving speed |
0 - 8km/h |
Front and rear wheelbases |
≈2280/2350mm |
Comprehensive driving range |
≥40km |
Wheelbase |
≈4300/1000mm |
Gradient ability |
8%X12m |
Minimum turning radius |
≤9.0m |
Minimum ground clearance |
≥150mm |
Body Configuration |
Seat |
Sit-on type (1 person, leather fabric + high-resilience PU; equipped with seat belt) |
|
Battery box |
The battery boxes are located on both sides of the frame for easy battery maintenance and upkeep. |
||
Cab and body |
The cab is enclosed. The front of the vehicle uses tempered special glass for automobiles. The front of the vehicle is molded from a 1.5 mm Baosteel plate. The main beam of the vehicle body is welded with national standard Q355 I-beams. The floor of the carriage uses 8 mm checkered steel plates. |
||
Instrument panel |
Combined liquid crystal instrument (including voltmeter, steering light signal, brake light signal, parking light signal, low-voltage alarm); Equipped with a high-definition rearview camera. |
||
Lights and signals |
LED headlights, turn signals, combined three-color taillights, electric horn and reverse buzzer; |
||
Switches |
Start key switch, forward and reverse gear switch, electric fan switch, etc.; |
||
Steering wheel |
Polyurethane foam steering wheel; |
||
Paint |
The whole vehicle uses automotive-grade ordinary paint, computer color matching, and professional spraying equipment; |
||
Chassis |
Power transmission system |
Continuously variable transmission system. The reduction gearbox uses a low-noise reduction gearbox. The transmission method uses a direct drive axle; |
|
Steering system |
Full hydraulic steering system; |
||
Front axle and suspension |
Plate-type hydraulic front axle, angular shaft connection; |
||
Rear axle and suspension |
Double rear axle leaf spring balance link connection, double rear axle single drive; |
||
Braking system |
Power hydraulic brake + electronic parking brake; |
||

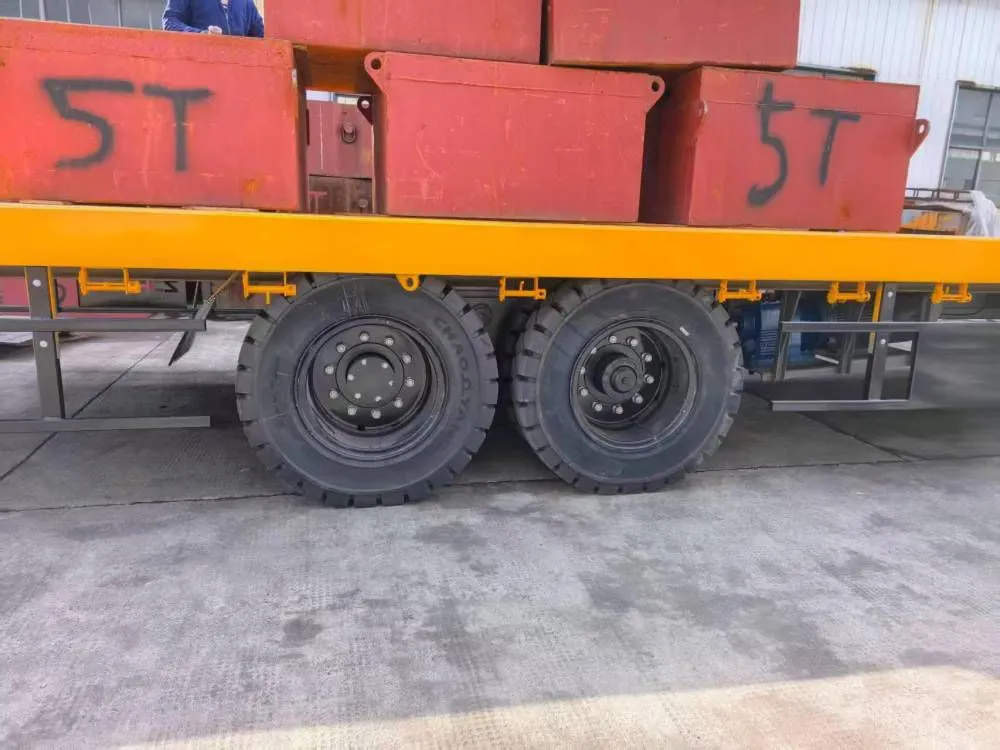

Chaoyang tires |
2 front 900-20/solid tires - 8 rear 900-20/solid tires (Chaoyang/Advance); |
