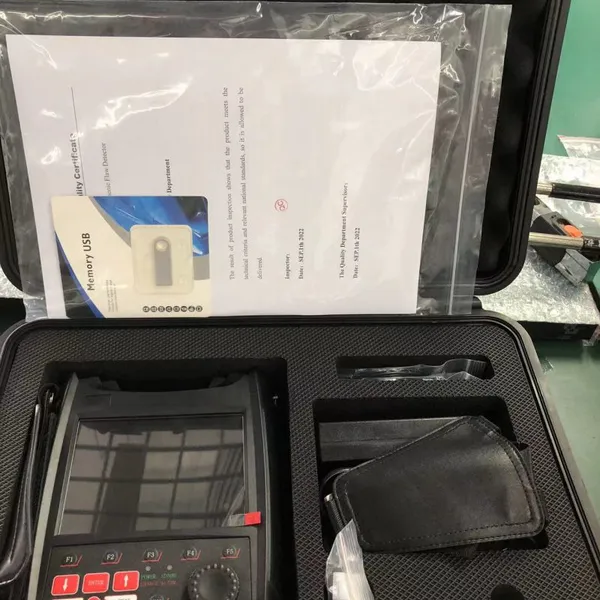

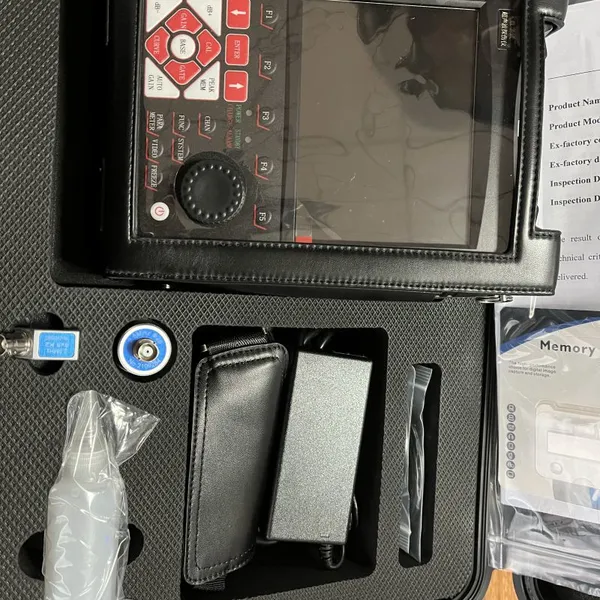

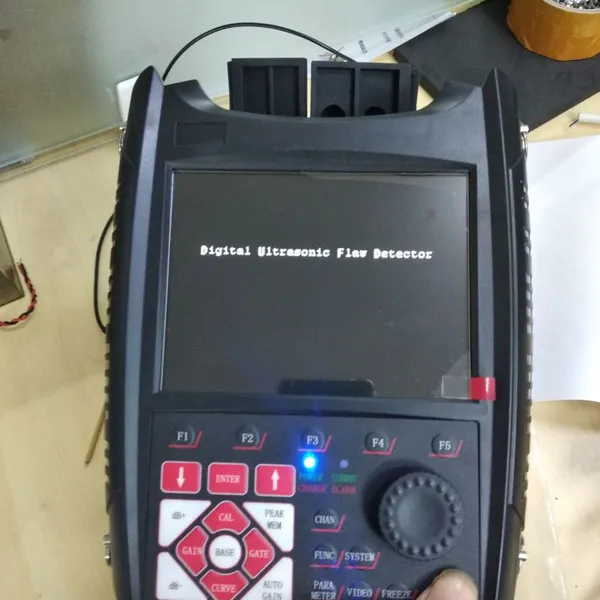

MFD650 Portable Ultrasonic Flaw Detector
|
1. 10 independent flaw detection channels, which can freely set and store various flaw detection processes and standards, and can store 100 flaw detection waveform signals and data |
|
2. real time dynamic color recording with recording time up to 50 minutes |
|
3. There are two scanning modes: A-scan and b-thickness scan |
|
4. Square wave pulse generator: adjustable pulse width, suitable for detecting the defects of different materials and different depth workpieces; |
|
5.DAC AVG curve making |
|
6.5.7-inch TFT color display, users can set the screen color according to the environment |
|
|
|
7. Compatible with single crystal straight, single crystal oblique, double crystal and transmission probes |
|
8. Three detection modes: positive half wave, negative half wave and full wave |
|
9. It has automatic calibration function of straight probe and angle probe, which is easy to use; |
|
ctions such as defect peak memory to assist in qualitative judgment of defects |
|
11.audible and visual alarm and low power alarm can be set for gate, curve wave in, wave loss and other conditions |
|
12.main menu and submenu are displayed in the same window.Clear at a glance, easy to operate, easy to find |
|
13. The main functions are fast access through the shortcut key, and the shuttle wheel is convenient to adjust the settings quickly |
|
14. multiple industry reports available |
|
15. Data can be imported into the computer through USB2.0 Interface |
|
16.Large capacity lithium battery can guarantee a endurance of more than 20 hours and can be replaced at any time |
|
17. The standby battery can be charged separately, and the battery can be charged when the host is working |
|
18.It can be operated by a single wrist strap handset or by hanging it on the chest |
|
19. Protection grade IP53, can be used in dripping environment or light rain
|
SPECIFICATIONS
|
Detection range |
0-9999mm |
|
Working frequency |
0.2mhz ~ 15MHz |
|
Sound speed range |
1000m / S ~ 9999m / S |
|
Gain range |
0dB ~ 110dB |
|
Sampling frequency |
100MHz |
|
Display delay |
- 20 μ s to + 3400 μ s |
|
Probe bias |
0 μ s ~ 99.99 μ s |
|
Electric noise level |
≤ 10% |
|
Sensitivity margin |
> 62db |
|
Resolution |
> 40dB (5p14) |
|
Linear inhibition |
0-80% (Digital inhibition) |
|
Vertical linear error |
≤ 3% |
|
Horizontal linear error |
≤ 0.1% |
|
Dynamic range |
≥ 32dB |
|
Battery |
6 × 3.7V (lithium battery) |
|
Power supply |
8.4v |
|
Ambient temperature |
- 20 ℃ ~ 50 ℃ |
|
Ambient humidity |
20% - 90% RH |
|
Size |
23cm × 17cm × 5.5cm |
|
Weight |
1.56kg (including leather cover) |
