Home > Instruments & Meters > Test Instrument > Test Machine > HST-MoPao3ST Metallographic Testing Equipment 1-Year Warranty Specimen Grinding and Polishing Machine
HST-MoPao3ST Metallographic Testing Equipment 1-Year Warranty Specimen Grinding and Polishing Machine
US$ 12596.22
1 - 2 Set
US$ 12456.27
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-MP2 Double-Disc Manual Grinding and Polishing Testing Equipment Machine With 1-Year WarrantyUS$ 4058.79 - 4758.58MOQ: 1 Set -
HST MoPao 300 Single Plates Laboratory Equipment Metallographic Specimen Grinding Polishing MachineUS$ 16095.17 - 17494.75MOQ: 1 Set
-
HST-MOPAO2T-300 300mm Double Discs Single Control Metallographic Grinding Polishing MachineUS$ 18544.44 - 18894.33MOQ: 1 Set
-
HST-MOPAO1T-200 200mm Metallographic Grinding Polishing MachineUS$ 13995.80 - 20993.70MOQ: 1 Set
-
HST-MoPao160 Metallographic Grinder and Polisher or Metallographic Specimen Grinding Polishing MachineUS$ 450 - 500MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing, grinding and polishing
customized support
OEM, ODM
power
900W
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Metallographic Specimen Polishing Grinding Machine
Polishing disc diameter
250(customizable 203,250)
Rotating speed
50-1000 r/min
Net weight
90kg
Gross weight
114kg
Dimension
790*740*700mm
Package size
920*820*840mm
Products Description
Application

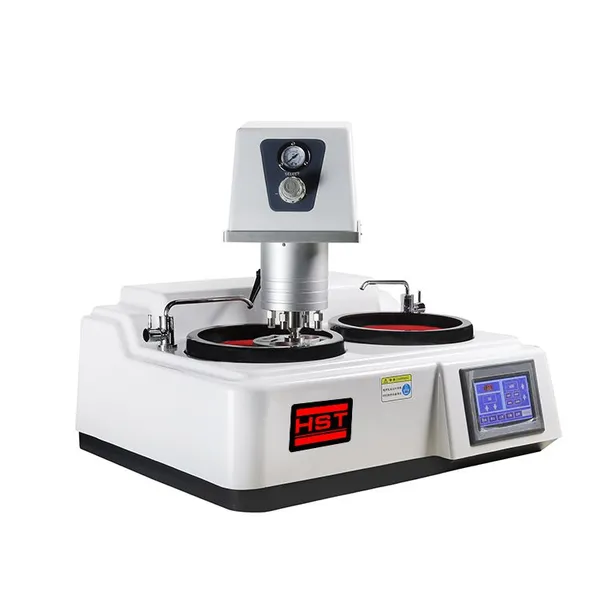

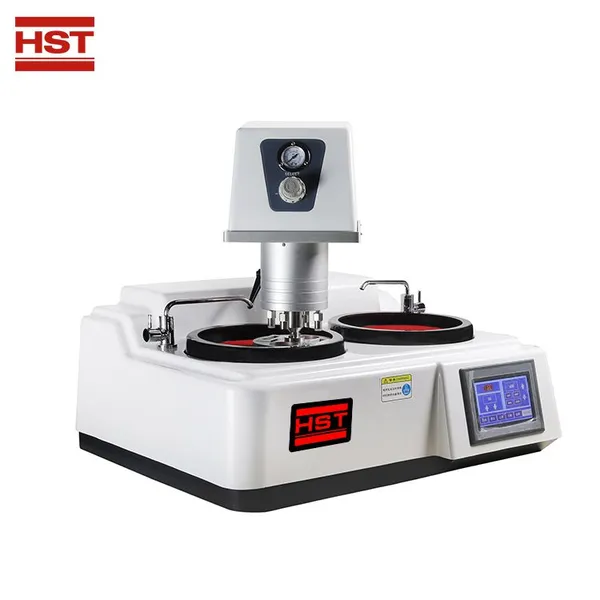

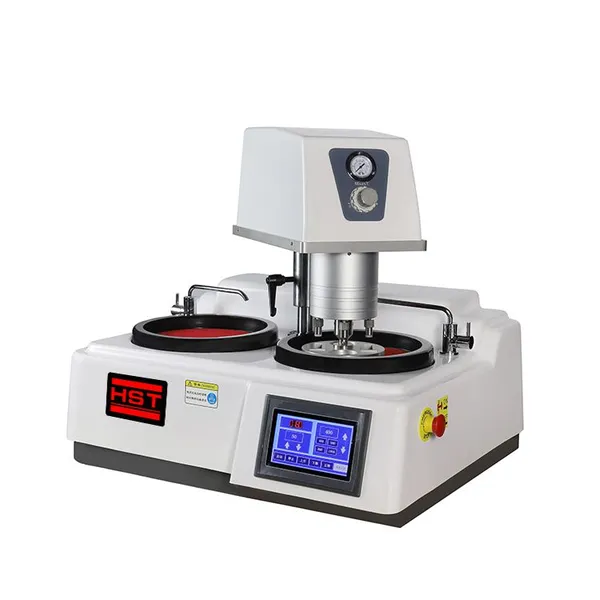

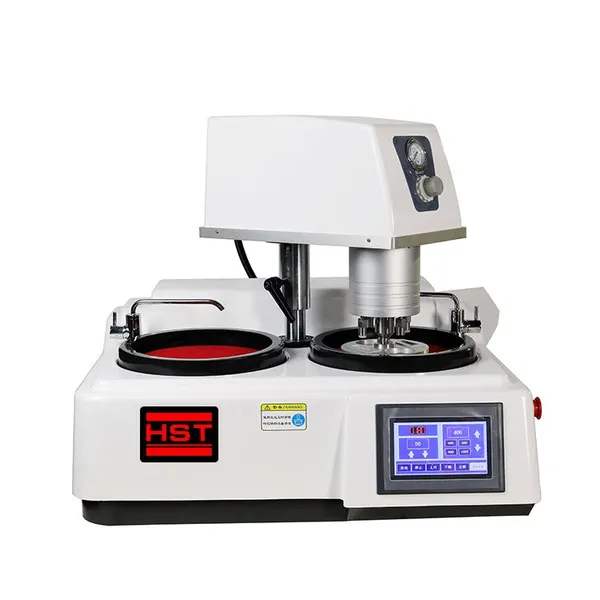

HST-MoPao3ST double-disc manual grinding and polishing machine integrates the functions of pre-grinding, grinding and polishing of metallographic samples. It has strong power, low noise, durability and simple operation. It is an ideal grinding and polishing machine for enterprises and scientific research institutions.
Features:
* One machine with multiple functions, easily completes pre-grinding, rough grinding, fine grinding,rough polishing and fine polishing of metallographic samples
* Double disc single control, four-level fixed speed, speed control system optimized for grinding and polishing machines
* Easy-to-control LCD screen, simple operation
* Finely ground and surface-treated work disc to ensure smooth sample surface
* The integrally formed high-strength fiberglass material shell is sturdy and durable.
* Double disc single control, four-level fixed speed, speed control system optimized for grinding and polishing machines
* Easy-to-control LCD screen, simple operation
* Finely ground and surface-treated work disc to ensure smooth sample surface
* The integrally formed high-strength fiberglass material shell is sturdy and durable.
Model | HST-MoPao3T |
Grinding Disc Diameter | φ250（customizable φ203,φ250） |
Working plate speed | 50-1000 r/min (stepless speed regulation) and 400/600/800/1000 r/min (four-level fixed speed) |
Grinding and polishing disc steering | adjustable forward and reverse selection |
Total power | 900W |
Grinding and polishing head speed | 5-150 r/min (stepless speed regulation) |
Number of prepared samples | 6 pcs |
Loading range | 5-60N |
Sample preparation time | 0-3000S |
Sample diameter | Factory standard φ30mm (can be customized with diameters φ22-φ45mm) |
Dimensions | 790*740*700mm |
Package Size | 920*820*840mm |
net weight | 89.6kg |
gross weight | 113.5kg |
power supply | Single phase 220V, 50HZ |
