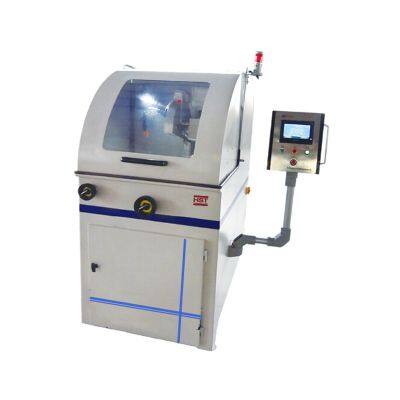

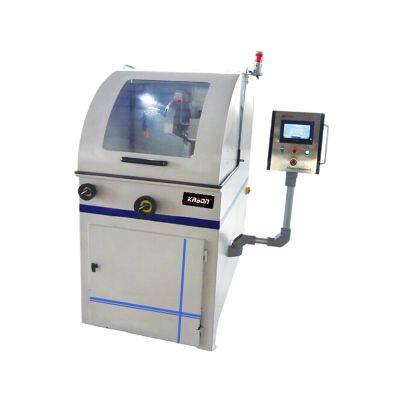

LDQ-350A Metallographic Automatic Sample Cutting Machine
1. Application:
Model LDQ-350A automatic cutting machine is designed and manufactured according to an introduced and
advanced technology of cutting actions, the health and safety of European Economic Community standard. This machine includes cutting system, lighting system, cooling system and cleaning system. Super cooling system can avoid specimen from burning while cutting. Imported gate style safety switch and explosion proof hood afford the safe guarantee for operators.
LDQ350A applies extensively with manual or automatic cutting features. It combines new cutting technology, high ability and convenience in one. It is the ideal option for colleges, car manufacturing, steel manufactories, material research institutes and so on.
2. Main specifications:
|
LDQ-350A |
|
|
Motor power |
4KW |
|
Max. cutting diameter |
110mm |
|
Y-axis maximum travel |
240mm |
|
Y-axis adjustable manual speed |
0.01~0.5mm/s |
|
Z axis adjustable manual speed |
0.01~0.5mm/s |
|
Spindle speed |
2800r/min |
|
Cooling method |
water cooling |
|
cutting speed |
0.005-10 mm/s is adjustable |
|
Power supply |
three phases, 380V, 50Hz |
|
Dimension |
1420×1040×1680mm |
|
Weight |
800kg |
Display Y-axis position, Z-axis position, cutting mode, four direction keys, water pump switch, light switch, start button, stop button and parameter setting button.
The second screen enters the second screen from the parameter setting as shown in the figure below
It mainly displays the setting of each parameter and the selection of cutting mode
Y-axis parameter setting screen
