Application:

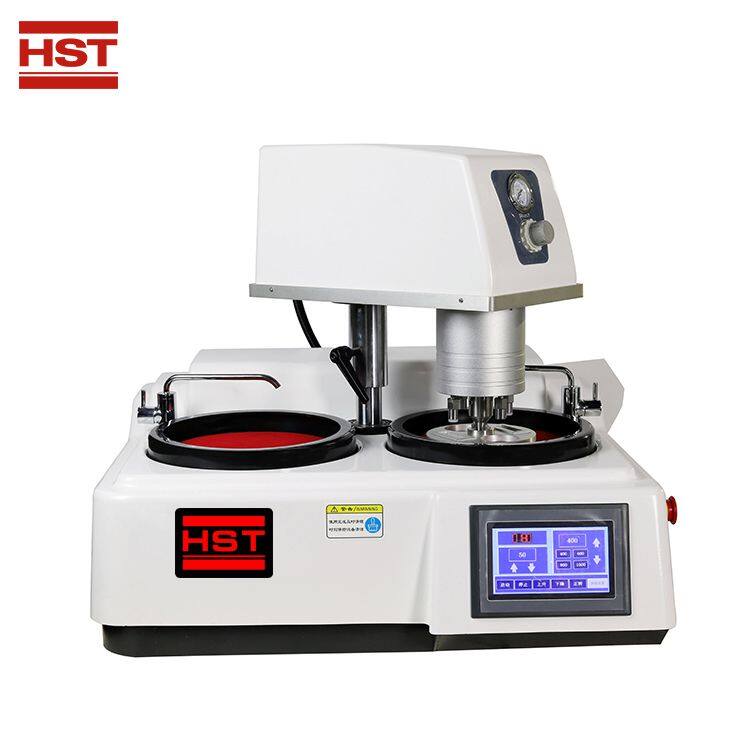

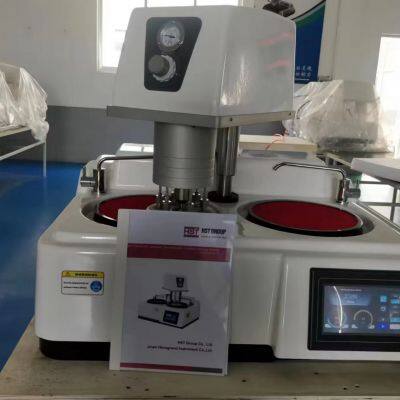

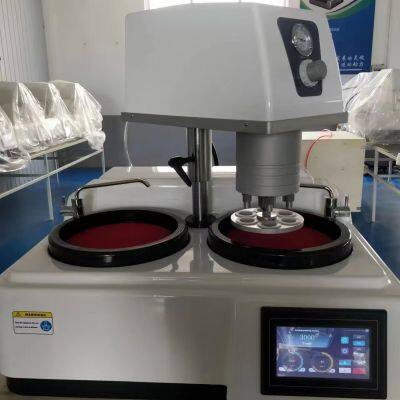

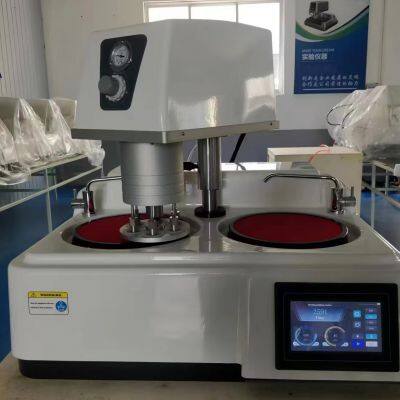

HST-MoPao3ST is a double-disc desktop machine. It is a new generation of high-precision, sample-preparation process automation grinding and polishing equipment made by international advanced technology according to international standards.
It has the functions of arbitrary rotation direction of grinding parabolic disc, fast replacement of grinding parabolic disc, multi-sample tester and pneumatic single-point loading. This machine adopts advanced microprocessor control system, which makes the grinding and polishing disc, the rotation speed of the grinding and polishing head realize the stepless adjustment.
The sample preparation pressure, the time setting are intuitive and convenient. It is necessary to change the grinding disc or sandpaper and fabric to complete the grinding and polishing process. This allows the machine to exhibit a wider range of applications. It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
Technical Parameters:
|
Model |
HST-MoPao3ST |
|
Grinding & Polishing disc diameter |
Φ250mm ( Φ203mm, Φ300mm customized) |
|
Sample Quantity |
6 |
|
Control mode |
Double disk /Single control |
|
Grinding and polishing disc rotation speed |
400/600/800/ 1000r/min(four-stage fixed speed) 50- 1000r/min(variable speeds) |
|
Polishing head rotation speed |
5- 150 R/Min (variable speeds) |
|
Loading range |
Adjustable 0.2-0.4Mpa is optimum |
|
Sample preparation time |
0-3000s |
|
Dia. Of samples |
φ40mm (φ22-φ45 optional) |
|
Motor voltage |
220V,50Hz |
|
Power |
900W |
|
Machine size |
755*815*690mm |
|
Weight |
89KG |
We supply full range services:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers' special needs.
After-sale, we could supply door to door installation and training services according to customer requirements .
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways.
The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
products are widely recognized and trusted by users.
