Home > Instruments & Meters > Test Instrument > Test Machine > SQ-80 Sample Cutter for Petrographic Metallographic Specimen Cutting Machine
US$ 9027.30
1 Set
US$ 8747.38
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
/
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-MoPao3ST Automatic Metallographic Grinding Polishing MachineUS$ 5201 - 5225MOQ: 1 Set -
HST-ZXQ5YS Hydraulic Automatic Metallographic Specimen Mounting PressUS$ 5000 - 5800MOQ: 1 Set
-
HST-ZXQ2A Automatic Metallographic Sample Mounting Press Hot Mounting Press MachineUS$ 1700 - 2500MOQ: 1 Set
-
LDQ-350A Metallographic Automatic Sample Cutting Machine Floor Type for Testing EquipmentUS$ 69279.21MOQ: 1 Set
-
Fully Automatic Metallographic Grinding Polishing MachineUS$ 4505 - 4510MOQ: 1 Set
Accuracy
/
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM, Software Reengineering
power
/
Protection Class
/
Voltage
380 V, 415 V, 240 V, 220 V
warranty
1 Year
Product name
metallographic cutting machine
Power
380V or 220V
Model
SQ-80
kw
2.2kw
Keyword
cutting machine
MOQ
1 Set
Brand
HST
Certificate
ISO CE
Delivery time
3 Working days
Port
Qingdao
Product Description
Application：

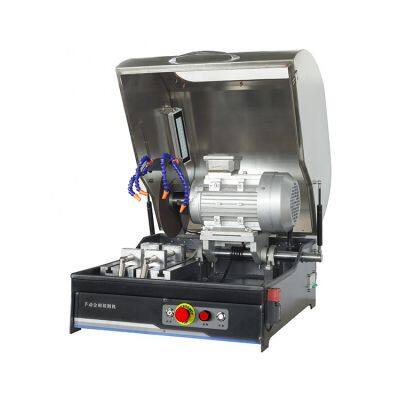

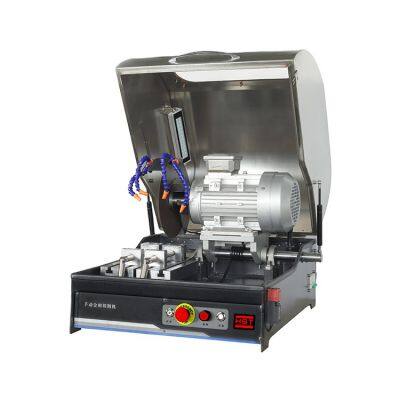

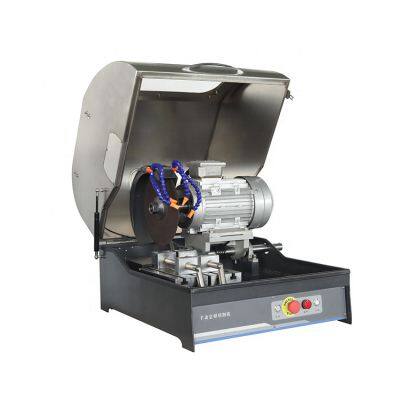

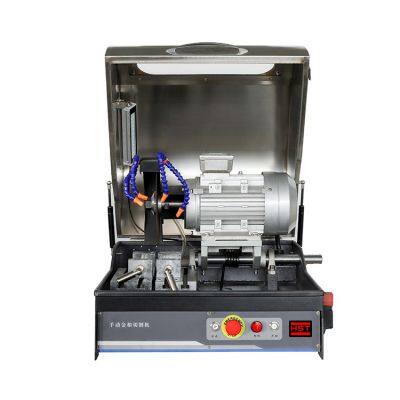

The HST-SQ80 metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials
in order to observe the metallographic and petrographic structures of the materials.
Features:
* This machine is equipped with a cooling system to take away the heat generated during cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample
cutting.
The HST-SQ80 metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials
in order to observe the metallographic and petrographic structures of the materials.
Features:
* This machine is equipped with a cooling system to take away the heat generated during cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample
cutting.
Model | HST-SQ80 |
Maximum cutting diameter | Φ80mm |
Spindle speed | 2800 r/min |
Cutting power | 3kw |
Input voltage | Three-phase 380V、50HZ |
Grinding wheel specifications | 250*2*32mm |
Dimensions | 730*650*551mm |
Packing Size | 897*757*730mm |
Net weight | 118.75kg |
Gross weight | 139.7kg |
Water tank size | 470*370*300mm |
Water tank packing size | 540*460*460mm |
Water tank net weight | 15kg |
Water tank gross weight | 25kg |
Detailed Images
