Home > Instruments & Meters > Test Instrument > Test Machine > HST Hot Sale High Quality Fully Automatic Six-station Vickers/Micro Hardness Tester HST-HVS-AT-XYZF-6
HST Hot Sale High Quality Fully Automatic Six-station Vickers/Micro Hardness Tester HST-HVS-AT-XYZF-6
US$ 18800 - 22200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Loading Method:
Automatic loading, dwelling and unloading
Accuracy Class:
High Accuracy
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Hardness Tester Test Display Type ForceTouch Screen Superficial Rockwell Hardness Tester HST-HSRS45THUS$ 1600 - 2000MOQ: 1 Set -
HST-HRS150/45T-Z-G Automatic Rockwell and Superficial Rockwell Hardness TesterUS$ 8000 - 9500MOQ: 1 Set
-
HST-HSRS45 Touch Screen Display Superficial Rockwell Hardness Tester With LCDUS$ 10846.75MOQ: 1 Set
-
Online Brinell Hardness Tester Online Automatic Hardness Testing Machine for Gas Cylinders HST-HBMT-365 TypeUS$ 68000 - 72000MOQ: 1 Set
-
Automatic Turret Small Load Brinell Hardness Tester High Quality HST-HBS62.5TZDX Small Load Brinell Hardness TesterUS$ 4400 - 5100MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Fully automatic Six-station Vickers/Micro hardness tester
Model
HST-HVS-AT-XYZF-6
Test Force
10gf~1000gf
Test Range
8 ~ 2900 HV/HK
Conversion scale
Rockwell, Brinell
Maximum allowable specimen height
100mm
Test microscope magnification
400X, 200X, 100X, 50X (test, observation) (500X optional)
Resolution
0.01μm
Dwell Time
1-99s
HST-HVS-AT-XYZF-6 Fully Automatic Six-station
Micro Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description

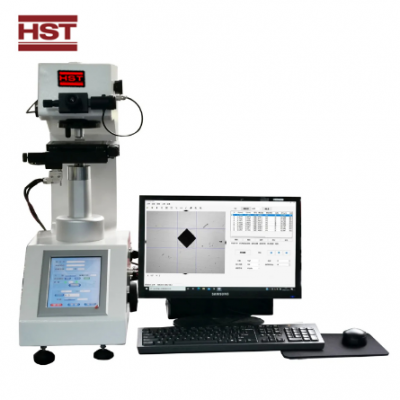

HST-HVS-AT-XYZF Automatic Micro Vickers hardness tester consists of two parts:
A)HST-HVS-1MDT-6 Automatic Turret touch screen Micro Vickers hardness tester
B)Automatic Turret touch screen Micro Vickers hardness tester Automatic Vickers hardness measurement and control system
I.Automatic Turret touch screen Micro Vickers hardness tester
1.Applications :
HST-HVS-1MDT-6 automatic turret micro Vickers hardness tester is equipped with Vickers, Knoop indenter and 4 kinds of objective lens.Vickers hardness and Knoop hardness values can be measured simultaneously.
Adopt optical cross guide rail lifting mechanism, force value is accurate, the image is clear, is an ideal high-end micro hardness tester.
2.Technical Parameters:
Model |
HST-HVS-1MDT-6 |
Test force |
10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N) |
Meet standard |
GB/T4340.2, GB/T 18449.2，ASTM E92 |
Measurement resolution |
0.01μm |
Data display output |
8-inch touch screen displays readings, stores 20 test results, has a built-in printer and RS-232 interface, and an optional USB flash drive |
Conversion scale |
Rockwell, Brinell |
Hardness test range |
8 ~ 2900 HV/HK, |
Test force application method |
Automatic (loading, preserving, unloading) |
Test microscope magnification |
400X, 200X, 100X, 50X (test, observation) (500X optional) |
Test force dwell time |
1-99s |
Maximum allowable specimen height |
100mm |
Distance from indenter to wall |
130mm |
X-Y platform |
Size: 100*100mm Maximum movement: 25*25mm |
Size |
540*260*650mm |
Weight |
About 50 kg |
Power supply |
AC220V + 5%, 50 to 60 hz |
Max. height of specimen |
90mm |
Executive standard |
GB/T4340 China Standard ,ASTME384 America Standard |
Dimension |
480×305×545mm |
Net weight |
About 46KG |
Power source |
220VAC,50HZ |
Main features:

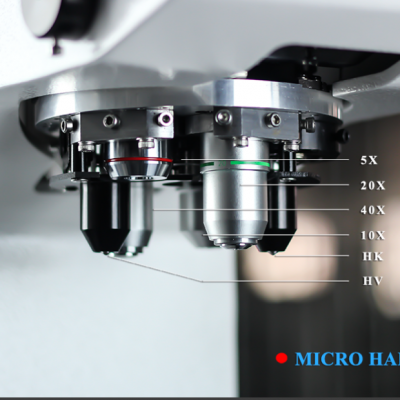

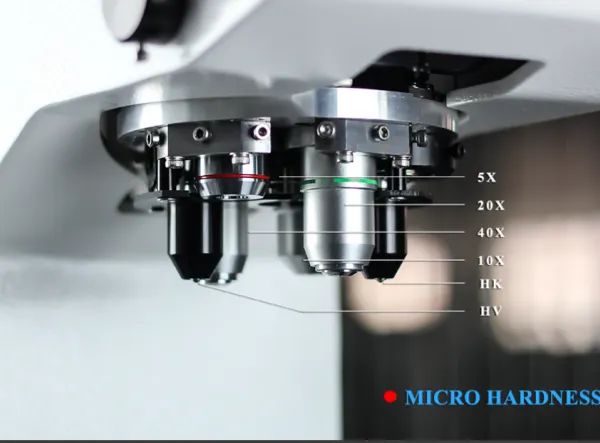

* Installed with Vickers, Knoop head and 4 objectives;
* During the test, the indenter and the objective lens automatically switch to each other, and the test point automatically
locates accurately.
* Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;
* LED light source, long life, no need to replace the bulb;
* Equipped with built-in camera, the image is clearer;
* It can be calibrated according to standard hardness blocks or length scales, and the hardness can be corrected automatically according to high, medium and low hardness values, so that the hardness value is more accurate.
* 8 inch touch screen interface, easy to operate;
* Data statistics save, easy to query and print out;
* Various hardness values convert to each other;
* Test setting parameters are protected by password;
* At least 3 languages such as Chinese and English are available;
* Equipped with RS-232 interface for computer connection;
* Optional maximum test force 2kg.
* During the test, the indenter and the objective lens automatically switch to each other, and the test point automatically
locates accurately.
* Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;
* LED light source, long life, no need to replace the bulb;
* Equipped with built-in camera, the image is clearer;
* It can be calibrated according to standard hardness blocks or length scales, and the hardness can be corrected automatically according to high, medium and low hardness values, so that the hardness value is more accurate.
* 8 inch touch screen interface, easy to operate;
* Data statistics save, easy to query and print out;
* Various hardness values convert to each other;
* Test setting parameters are protected by password;
* At least 3 languages such as Chinese and English are available;
* Equipped with RS-232 interface for computer connection;
* Optional maximum test force 2kg.
Operation interface:

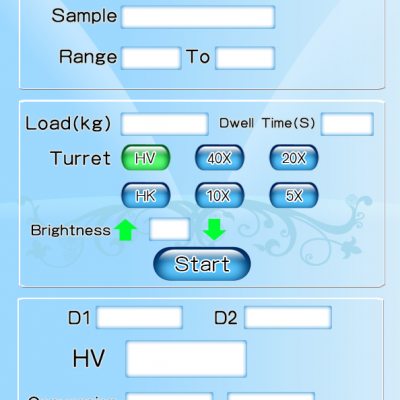

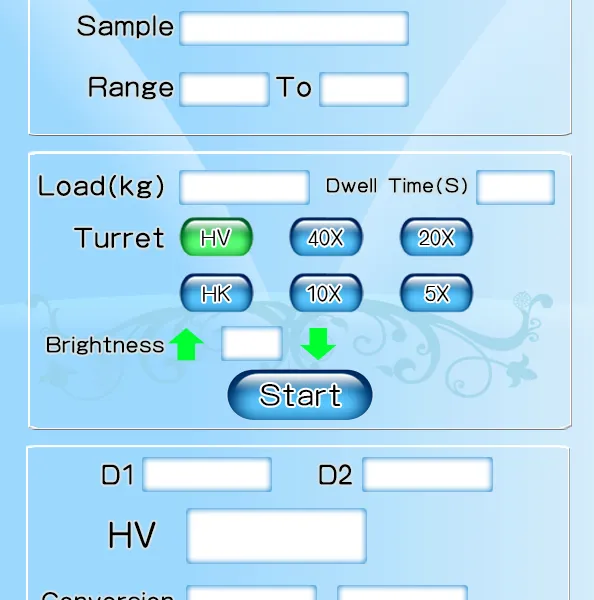

Main interface
Data interface

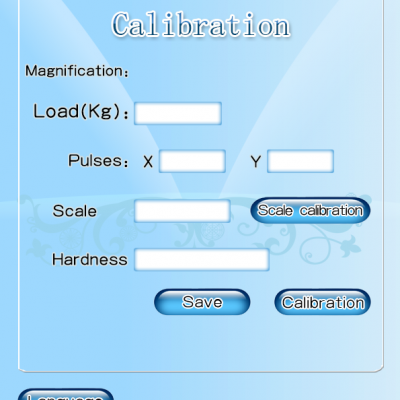

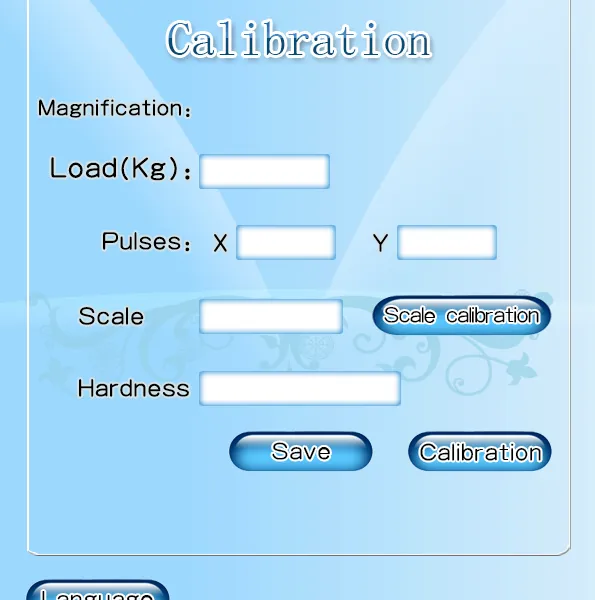

Hardness calibration
