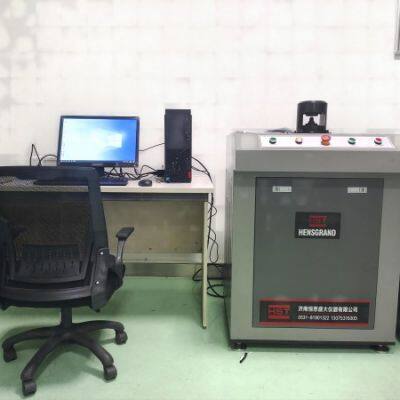

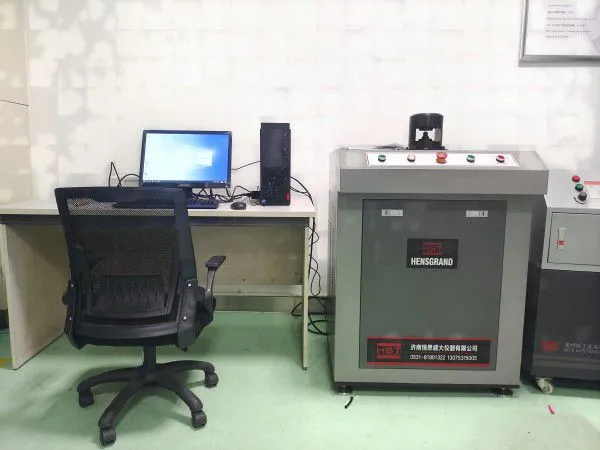

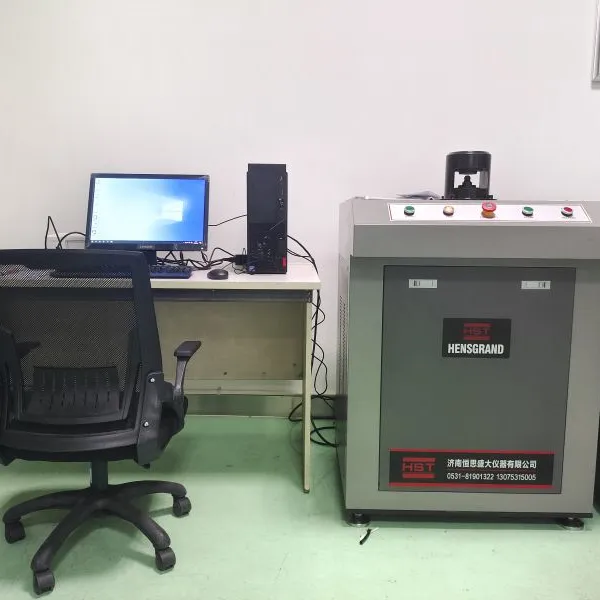

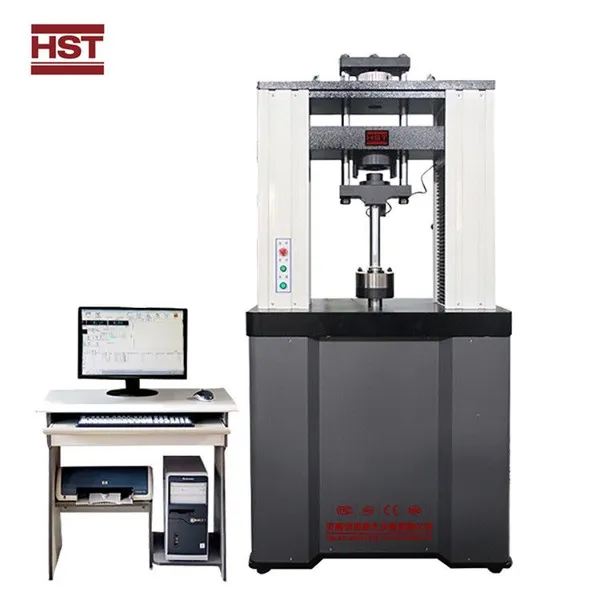

HST 6ton 60kN Erichsen cupping testing instrument for metal materials GBW-60B
Application:
This machine adopts mechatronics design, neat and elegant appearance. It is a precision equipment for performing process performance tests on metal sheets and strips. It can realize GB/T4156-2020 / ISO 20482-2013 "Metal Material Sheets and Strips Eric The Mori Cupping Test Method" meets the requirements of JJG 583-88 and JB/T7408-94, and also adopts the standard of ASTM E643-2008 to test the plastic deformation performance of metal sheets and strips during the test.
|
Maximum test thickness |
Standard cupping test 0.05~3mm (high-precision sensor, can realize ultra-thin plate test) |
|
Maximum width of sheet |
90-100mm |
|
Maximum stroke of punch |
60mm |
|
Maximum cup load |
80kN |
|
Maximum clamping load |
10kN |
|
Cupping value resolution |
0.01mm |
|
Test force measurement accuracy |
±1% |
|
Deformation accuracy |
±0.5% |
|
Test speed |
0.05mm/min-200mm/min(Stepless speed regulation) |
|
Cupping test mold specifications |
Standard punch ball: φ20±0.05mm Standard pad mold aperture: φ33±0.1mm Standard fixed mold aperture: φ27±0.05mm |
|
Computer display content |
Clamping load, pressing force, displacement, cupping value, speed, test curve, etc. |
