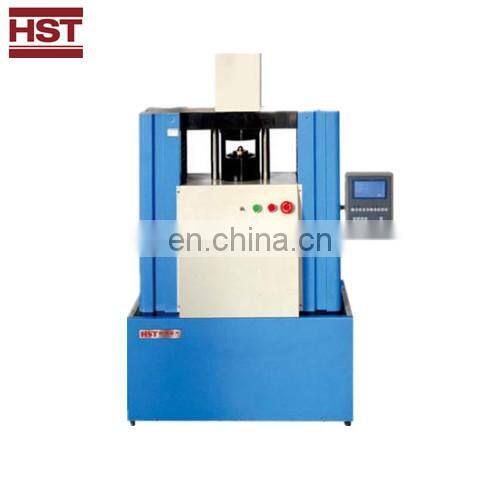

Sheet Metal Erichsen Cupping Testing Machine with High Precision
- T/T Credit Card
You May Like
-
Metal Erichsen Cupping Testing Machine / Cupping Test GBW-60B
-
60KN Erichsen Cupping Testing Machine With Constant Speed Control GBW-60B
-
GBS-60 Digital Display Erichsen Deep Drawing Cups Testing Machine
-
ASTM E 643-78 GBW-60 PC controlled Erichsen Cupping Tester/ Erichsen Cupping Testing Machine
-
ASTM Computer Control Universal Lubricant 4 Ball Friction Wear Testing Machine/Tribometer/Four Ball Friction Tester
-
10kn Microcomputer Controlled electronic four ball wear testing machine
Product Description
GBS-60 Digital Display Electric Cupping Testing Machine with Cheap Price
Application & Features
The cupping testing machine is used to test extend and stretch capacity of metal thin plate and band. It is the only instrument to test the metal’s plastic deformation. Also it can be used to test non-ferrous metals anisotropic character if adding impact cup mould. The machine adopts high precision raster measure instrument to test Erichsen value so it has a high testing precision. It adopts the electric control machinery onload and LCD spoke sensor so it raised the testing precision of the main test force and accuracy of controlling sample breaking.
Standards
ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test, GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.
Feature
1.Use a servo motor to load instead of hydraulic piston and cylinder;
2. Change oil pressure cylinder to load cell, more precision and reliable;
3.Auto stop when crack appears, convenient to observe the crack;
4.With peak value memory function, like max. punch load, max. deformation deep etc;
5,Turnover grips, punch and sample is easy to change;
Specification
Model | GBS-60 |
Specimen thickness | 0.1-2mm |
Max Specimen width | 100mm |
Max Punch stroke | 60mm |
Clamping piston stroke | 19-21mm |
Max. punching load | 60Kn |
Max. clamping load | 25Kn |
Standard punch diameter | Φ20±0.05mm |
Standard cushion mold hole diameter | Φ33±0.1mm |
Standard press mold hole diameter | Φ27±0.05mm |
Display resolution | 0.01mm |
Speed | 2-100mm/min |
Display resolution | 0.01mm |
Display mode | LCD display |
Display value | Clamping force, stamping force, displacement and cup drawing value, speed rate |
Control mode | Manul adjust speed rate, Automatic adjust and record cup drawing value |
Structure | Composite cylinder, double oil pump supply oil, grating measurement |
1. Delivery Packaging
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
2.Shipping & Delivery
It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.
Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories, etc.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
