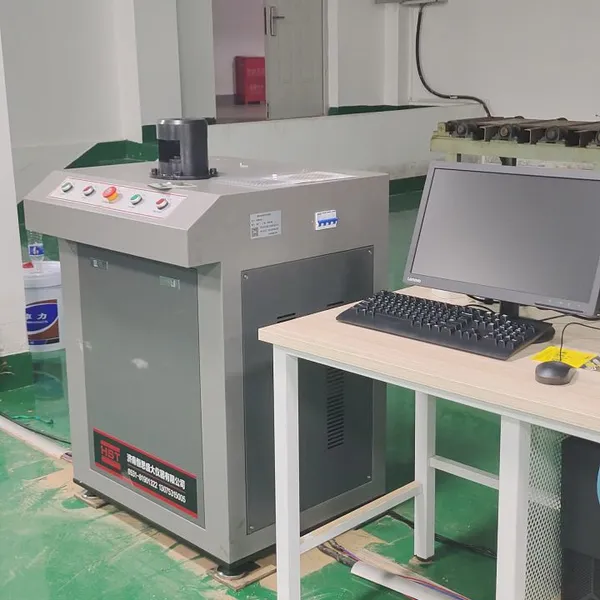

Help CenterHST Hydraulic Power 60KN Metal Materials Cupping Testing Machine High Accuracy Aluminum Plate Cupping Testing Machine
Related Products
-
HST-BPT-100 GB4156-84 100kn Computer Control Cupping Testing MachineUS$ 87473.75 - 90972.70MOQ: 1 Set -
HST-BPT-300 300kN ASTM E 643-78 Computer Control Cupping Testing MachineUS$ 167949.60 - 174947.50MOQ: 1 Set
-
HST-BPT-300 60kN Computer Control Metal Thin Erichsen Tester /Erichsen Cupping Testing Machine / Erichsen Cup Test EquipmentUS$ 167949.60 - 174947.50MOQ: 1 Set
-
HST-BPT-60 60kN Computer Control Erichsen Cupping Testing MachineUS$ 68579.42 - 69979.00MOQ: 1 Set
-
HST 6ton 60kN Erichsen Cupping Testing Instrument for Metal Materials GBW-60BUS$ 48985.30MOQ: 1 Set
GBS-60 Digital Display Erichsen Tester
Phone/whatsapp:+86-15866781190 Skype: hstbetty009
GBS-60 Digital Display Erichsen Tester
1. Application & Features:
The cupping testing machine is used to test extend and stretch capacity of metal thin plate and band. It is the only instrument to test the metal’s plastic deformation. Also it can be used to test non-ferrous metals anisotropic character if adding impact cup mould. The machine adopts high precision raster measure instrument to test Erichsen value so it has a high testing precision. It adopts the electric control machinery onload and LCD spoke sensor so it raised the testing precision of the main test force and accuracy of controlling sample breaking.
2. Standards:
ISO20482: 2003 Metallic materials-Sheet and strip-Erichsen Cupping Test, GB/T4156-2007 Metallic materials-Sheet and strip-Erichsen Cupping Test.
3. Feature
1.Use a servo motor to load instead of hydraulic piston and cylinder;
2. Change oil pressure cylinder to load cell, more precision and reliable;
3.Auto stop when crack appears, convenient to observe the crack;
4.With peak value memory function, like max. punch load, max. deformation deep etc;
5,Turnover grips, punch and sample is easy to change;
4. Specification:
|
Model |
GBS-60 |
|
Specimen thickness |
0.1-2mm |
|
Max Specimen width |
100mm |
|
Max Punch stroke |
60mm |
|
Clamping piston stroke |
19-21mm |
|
Max. punching load |
60Kn |
|
Max. clamping load |
25Kn |
|
Standard punch diameter |
Φ20±0.05mm |
|
Standard cushion mold hole diameter |
Φ33±0.1mm |
|
Standard press mold hole diameter |
Φ27±0.05mm |
|
Display resolution |
0.01mm |
|
Speed |
2-100mm/min |
|
Display resolution |
0.01mm |
|
Display mode |
LCD display |
|
Display value |
Clamping force, stamping force, displacement and cup drawing value, speed rate |
|
Control mode |
Manul adjust speed rate, Automatic adjust and record cup drawing value |
|
Structure |
Composite cylinder, double oil pump supply oil, grating measurement |
