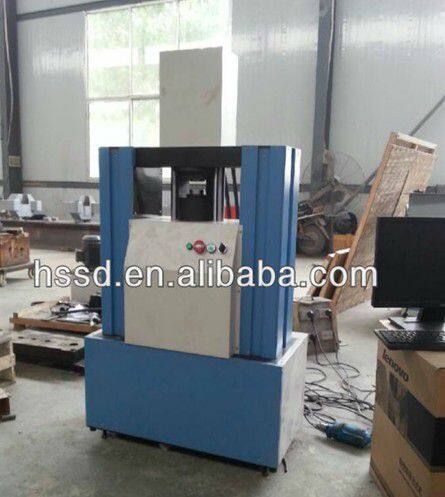

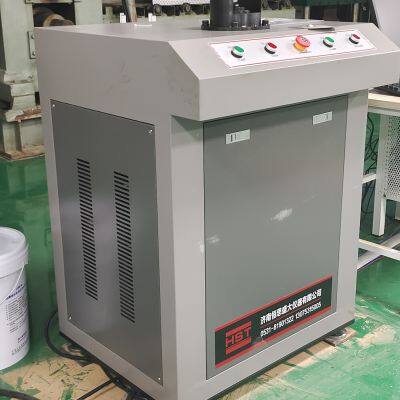

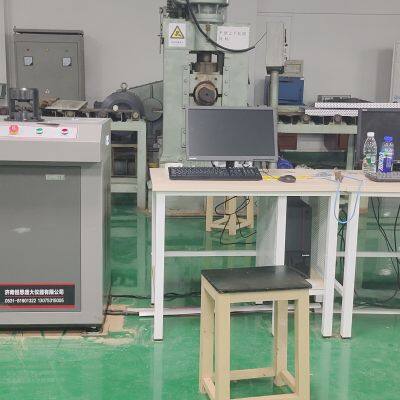

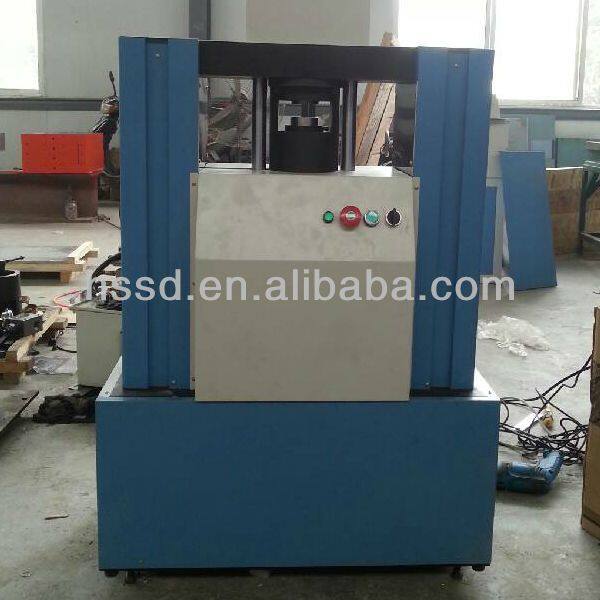

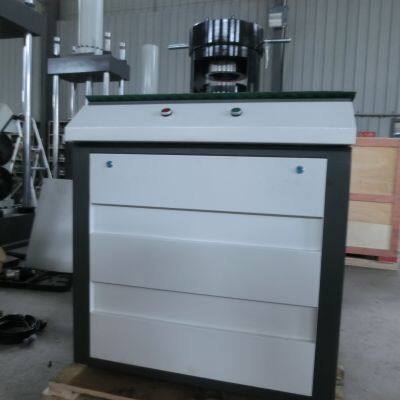

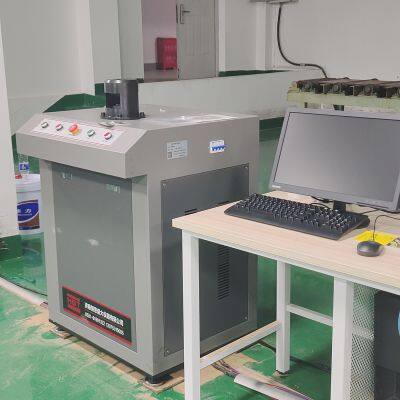

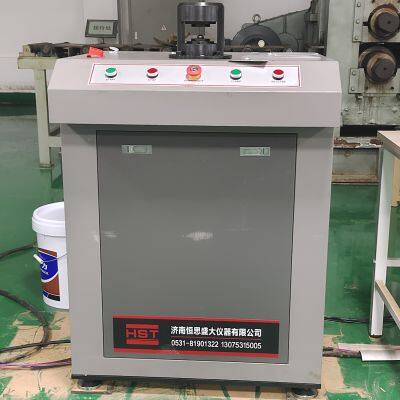

HST-BPT-60 60kN Computer Control Erichsen Cupping Testing Machine
Phone/whatsapp:+86-15866781190 Skype: hstbetty009
Application:
The Cupping testing Machine ( Erichsen Tester ) is precise technology testing machine which is used for sheet metal & strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .
Standard:
It conforms to ASTM E 643-78 & GB4156-84 named Testing Machine for Metal Cupping test
Feature:
1, Computer control operation, according to the preset program and data, automatic clamping, stamping, measurement, calculation, parking
2, Auto stop when crack appears, convenient to observe the crack;
3, With computer controlled the test, user can easy get test report, and save, recall, print test result;
4, Turnover grips, punch and sample is easy to change;
5, With peak value memory function, like max. punch load, max. deformation deep etc;
6., Adopting a composite oil cylinder can meet hydraulic clamp and press piston and cylinder;
Specification:
|
Model |
GBW-60B |
|
Specimen thickness |
Standard 0.1-2mm,( Non-Standard 0.1-3mm) |
|
Max. Specimen Width |
100mm |
|
Max. Punch stroke |
60mm |
|
Clamping piston stroke |
19-21mm |
|
Max. Cupping Force |
60kN |
|
Max. Clamping Force |
25kN |
|
Test mold specifications (Standard) |
Punch diameter:Φ20±0.05mm,cushion mold hole diameter : Φ33±0.1mm Fixed mold hole diameter: Φ27±0.05mm Standard press mold hole diameter : Φ27±0.05mm; ( Non-Standard ) |
|
Test mold specifications (Non-Standard) |
Punch diameter : Φ15±0.05mm , Φ8±0.02mm, Φ3±0.02mm Press mold hole diameter : Φ18±0.1mm, Φ10±0.1mm ,Φ3.5±0.1mm Fixed mold hole diameter : Φ21±0.02mm ,Φ11±0.02mm , Φ5±0.02mm |
|
Display resolution |
0.01mm |
|
Display value |
Clamping force, stamping force, displacement and cup drawing value, speed rate, drawing force - displacement curve |
|
Control method |
Computer automatic test process |
|
Structure features |
Composite cylinder, double oil pump supply oil, grating measurement |
