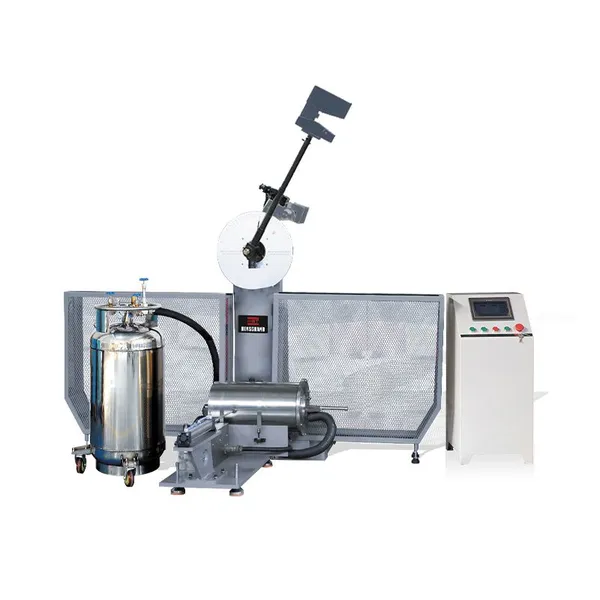

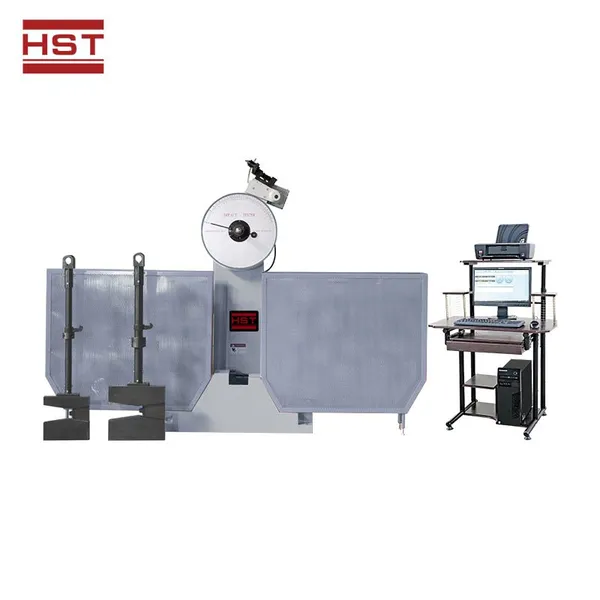

HST JBW-500XJ 250J 500J Computer Automatic Metal Pendulum Izod Charpy Impact Testing Machine
US$ 7200 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
1class
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6000J Drop Weight Machine for Brittle Fracture Testing in Ferritic Cast/Forged SteelsUS$ 202939.10 - 272918.10MOQ: 1 Set -
Adjustable Drop Weight Impact Machine for PVC-C/PP/PE Pipe Toughness Testing, ISO/BS EN CertifiedUS$ 4599 - 8900MOQ: 1 Set
-
Automatic Drop Hammer Impact Tester for PVC-U/PP/PE Pipe Materials, Meets ISO 4422 & EN 744US$ 4599 - 8900MOQ: 1 Set
-
Customizable Pipe Drop Weight Impact Tester for PVC-U/PE/PP Pipes, ISO 4422 & BS EN 1411 ComplianceUS$ 4599 - 8900MOQ: 1 Set
-
JBS-300B Digital Display Pendulum Charpy Impact Tester Machine 150J/300J IP65 Protection 2.5KW Power High Accuracy 1 YearUS$ 34989.50 - 35689.29MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
1class
brand name
HST
place of origin
Shandong, China
Application
Impact Testing, impact test for metal material
customized support
OEM, ODM
power
1.5kw, Electronic
Protection Class
IP55
Voltage
220 V, 380 V
warranty
1YEAR
Product name
500J automatic Metal Charpy IZOD Impact Testing Machine
display
dial display and digital display
Power supply
AC 3 Phase 380V 60/50Hz
Function
Metal material impact test
Protection
With protection net
specimen size
10mm*10mm*55mm
Product Description
Application
JBW-300XJ Computer Screen Display Charpy and Izod Pendulum Impact Tester is high performance pendulum impact tester that
precisely determines absorbed impact energy and resistance to breakage of metallic specimens. With the computer display, it can
show test result and test curve in real time easily. Designed for determination of the impact energy as Charpy and Izod impact
methods according to ASTM E23, ISO, DIN, EN standards; Innovative mechanical design features make these testing machine top
contenders on No. 4915, Jingshi Road, Jinan, China Tel:+86-15910081986
the market with excellent price/quality ratio as well as high accuracy. Universities, automotive and aero companies, research and
R&D Labs, as well as steel plants are typical customers for these testing systems.
2. Standards:
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Izod Impact Test: ASTM E23, BS 131 for Metals
3. Performance parameters:
precisely determines absorbed impact energy and resistance to breakage of metallic specimens. With the computer display, it can
show test result and test curve in real time easily. Designed for determination of the impact energy as Charpy and Izod impact
methods according to ASTM E23, ISO, DIN, EN standards; Innovative mechanical design features make these testing machine top
contenders on No. 4915, Jingshi Road, Jinan, China Tel:+86-15910081986
the market with excellent price/quality ratio as well as high accuracy. Universities, automotive and aero companies, research and
R&D Labs, as well as steel plants are typical customers for these testing systems.
2. Standards:
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Izod Impact Test: ASTM E23, BS 131 for Metals
3. Performance parameters:
MODEL |
HST JBW-300XJ |
||
Impact energy (J) |
Charpytest |
150,300 |
|
IzodTest |
300 |
||
Notch Types |
Charpytest |
U and V-shaped notch |
|
IzodTest |
Only V-shaped notch |
||
Striking Point |
Charpytest |
Middle of material |
|
IzodTest |
The upper Tip of the material |
||
Impactspeed(m/s) |
Charpytest |
5.24m/s |
|
IzodTest |
4.6868m/s |
||
Specimenanddistanceofpendulum |
Charpytest |
10±0.5 |
|
contactwirestothesymmetryof gap(mm) |
IzodTest |
22±0.5 |
|
Pendulumpreparingangle |
150° |
||
Distancebetweenpendulumcenter andsamplecenter(mm) |
Charpytest |
750 |
|
IzodTest |
600 |
||
Roundangleof jaws(mm) |
Charpytest |
R1-R1.5 |
|
IzodTest |
R0.4 |
||
Roundangleofstrikingedge(mm) |
Charpytest |
R2-R2.5 |
|
IzodTest |
R0.66 |
||
The impact blade thickness (mm) |
Charpytest |
16 |
|
IzodTest |
15-20 |
||
Size of specimen (mm) |
Charpytest |
55*10*10 |
|
IzodTest |
127x11.43roundbarformeta |
||
Theangleofsamplefrontandpendulumunderside |
100± 1° |
||
Sizeofspecimen(mm) |
|||
Φ 11.43 ×71～127mmroundsample |
|||
Power supply |
3p 4-wire 380V 50Hz or specified |
||
Dimensions (mm) |
2124*600*1340 |
||
Weight(KG) |
450 |
||
