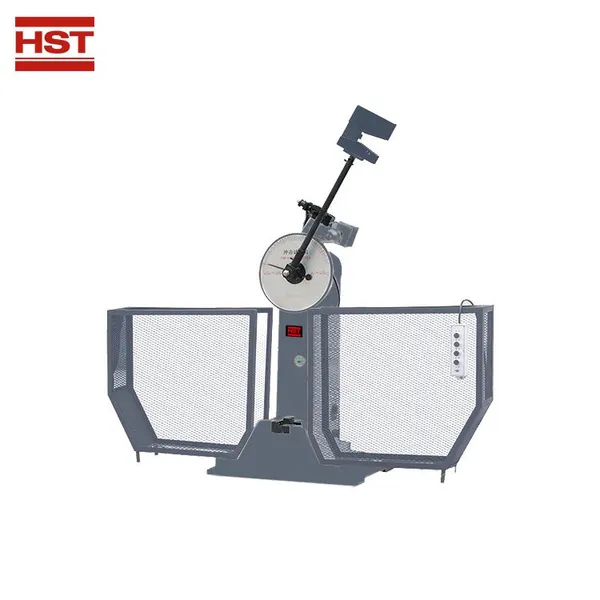

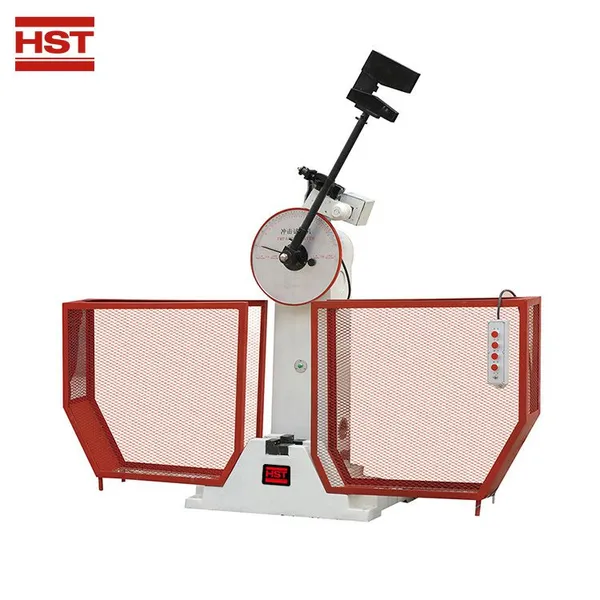

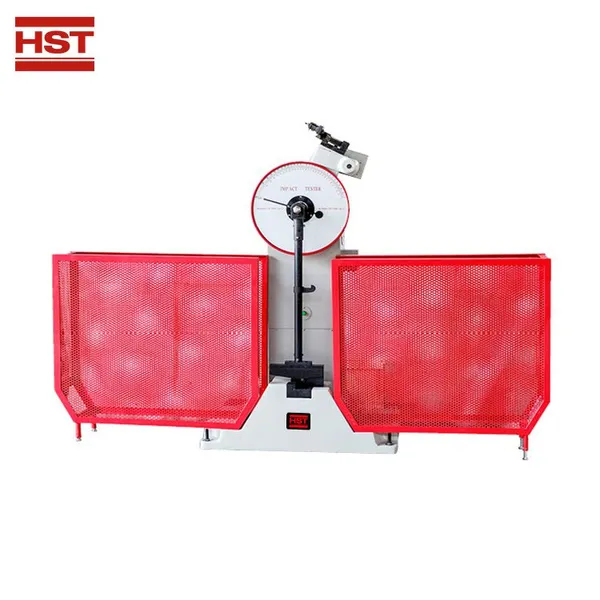

JB300B/500B Motorized Charpy Izod Pendulum Metal Impact Tester Impact Testing Machine 300J/500J
US$ 24373.69
1 - 2 Set
US$ 22974.11
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Control:
semiautomatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JBW-300B Computer Automatic Metal Charpy Impact Tester 150J 300J ASTM E23 Product Type Testing EquipmentUS$ 33589.92 - 34989.50MOQ: 1 Set -
DWC-40 Cryostat for Impact Test / Compressor Cooling Low Temperature Chamber /cryogenic TankUS$ 1200 - 1599MOQ: 1 Set
-
DWC- 80 -80 Degree Centigrade Low Temperature Chamber for Impact Testing Machine Low Temperature ChamberUS$ 1200 - 1599MOQ: 1 Set
-
HST Pvc Pipe Tester Izod & Price Iso 148 Metallic Materials Charpy Pendulum Impact Testing MachineUS$ 13296.01 - 14695.59MOQ: 1 Set
-
HST VU-1S Manual 2mm Charpy Impact Test Sample v Notch Broaching MachineUS$ 6997.90 - 10496.85MOQ: 1 Set
Warranty
12months
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Impact Testing
customized support
OEM, ODM
power
2.5KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Pendulum Impact Testing Machine
Impact Energy(J)
150J 300J
Raised angle
150
Standard span (mm)
40+0.2
Specimen holder support surface angle
11°
The impact of the blade angle
30°
The impact blade thickness (mm)
16
Products Description
Application
JB impact testing machines are used to test anti-impact performance of metal material under dynamic load to judge the quality of material under dynamic load.
This machine is semiautomatic control testing machine, easy to operate, high effective.
Raising pendulum, impact and pendulum dropping are all controlled by electrical equipment.
Raising pendulum, impact and pendulum dropping are all controlled by electrical equipment.
Standards
ISO148,ISO83 EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
MODEL |
HST JB-300B |
HST JB-500B |
|
Impact energy (J) |
150,300 |
250,500 |
|
Value of every grid (J) |
0~300(2J), 0~150(1J) |
0~500(5J), 0~250(2.5J) |
|
Moment of pendulum(N·m) |
0~300J(160.7695N·m), 0~150J(80.3848N·m) |
0~500J(267.9492N.m), 0~250J(133.9746) |
|
Impact velocity (m/s) |
5.2 |
5.4 |
|
Distance between pendulum center and sample center (mm) |
750 |
800 |
|
Raised angle |
150º |
||
Standard span (mm) |
40+0.2 |
||
Round angle of jaws (mm) |
R1-1.5(1mm is special order) |
||
Round angle of striking edge (mm) |
R2-2.5 or R8±0.05(8mm is special order) |
||
Specimen holder support surface angle |
11° |
||
The impact of the blade angle |
30° |
||
The impact blade thickness (mm) |
16 |
||
Size of specimen (mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
||
Power supply |
3phs, 380V/220V±10%, 50Hz or specified |
||
Dimensions (mm) |
2124 x 600 x 1340 |
2144 x 736 x 1390 |
|
Weight(KG) |
550 |
750 |
|
